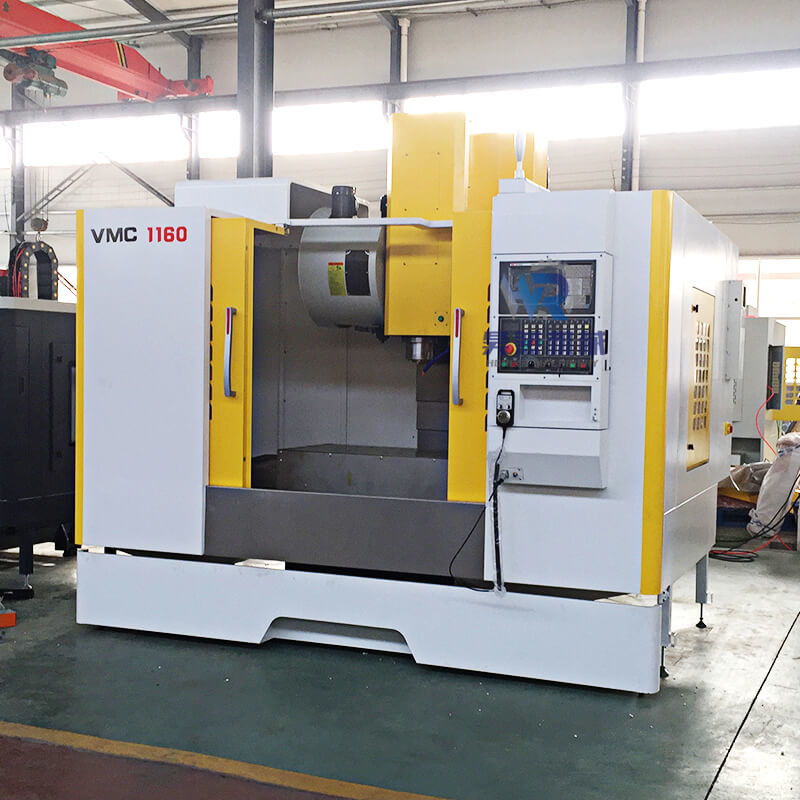

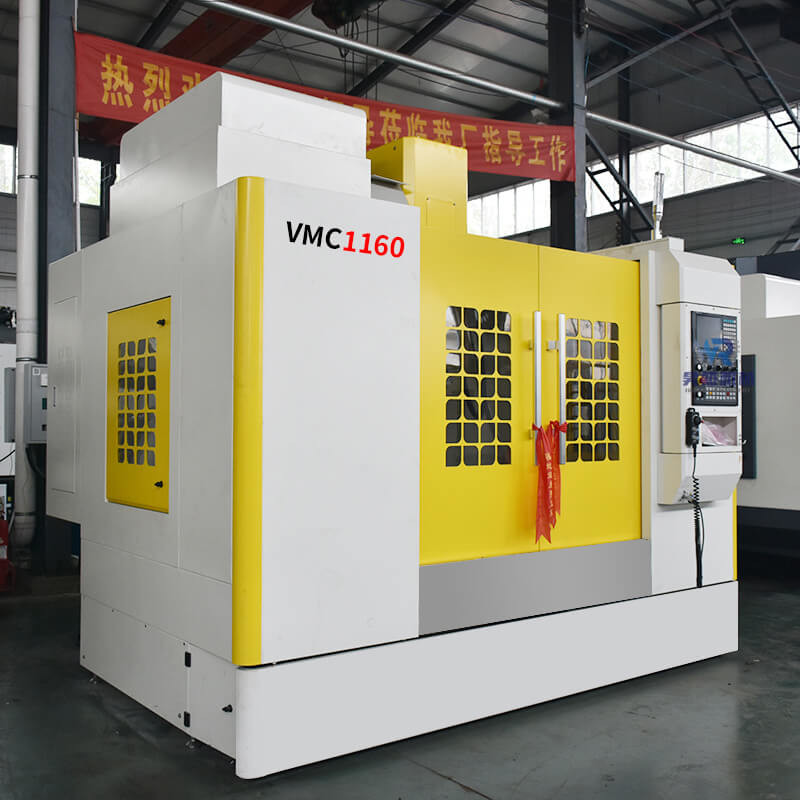

ODM New Design 5 Axis Vertical Milling Center VMC 1160
Product Details
| Name: | 2022 New Design 5 Axis Vmc1160 Vertical Machine Center | Number Of Axes: | 5 |
|---|---|---|---|
| Machining Capacity: | Medium Duty | Range Of Spindle Speed(r.p.m): | 8000 - 12000 |
| No. Of Spindles: | Single | Spindle Taper: | BT40 |
| Positioning Accuracy (mm): | ±0.005 | Repeatability (X/Y/Z) (mm): | ±0.002 |
| Highlight |
ODM Vertical Milling Center,5 Axis Vertical Milling Center,ODM vmc 1160 |
||
Product Description
ODM New Design 5 Axis Vertical Milling Center VMC 1160
The advantages of Machining center
The advantages of Machining center
In the past, the production of molds was mostly manual, and it was necessary to use plaster to make a model, and then use a billet to make a model. Plane and grind it with a planer, and then use a hand or engraving machine to carve the shape of the product mold from the template. The whole processing process requires high skills of the processing master, and it is quite time-consuming. The machining center can complete a variety of processes at one time, and the processing efficiency is unmatched by manual operations. Before processing, use computer to design graphics, simulate and test whether the processed workpiece meets the requirements, and adjust the test piece in time, which greatly improves the fault tolerance rate and reduces the error rate. It can be said that the machining center is the most suitable mechanical equipment for mold processing.
package according to your requests. Delivery Detail: Shipped in 15-30 working days after payment.
Product Highlights
ODM New Design 5 Axis Vertical Milling Center VMC 1160 Product Paramenters Model VMC650 VMC840 VMC850 VMC855 VMC966 I Table size (mm) 1000x400 1000x400 1000x500 1000x550 1100x550 Max. allowable load (Kg) 400 300 500 500 600 X-axis stroke (mm) 650 800 800 800 900 Y-axis travel (mm) 400 400 500 550 ...
