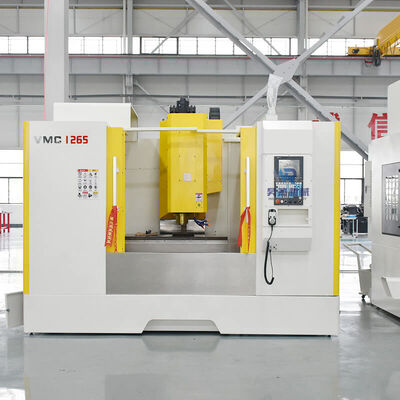

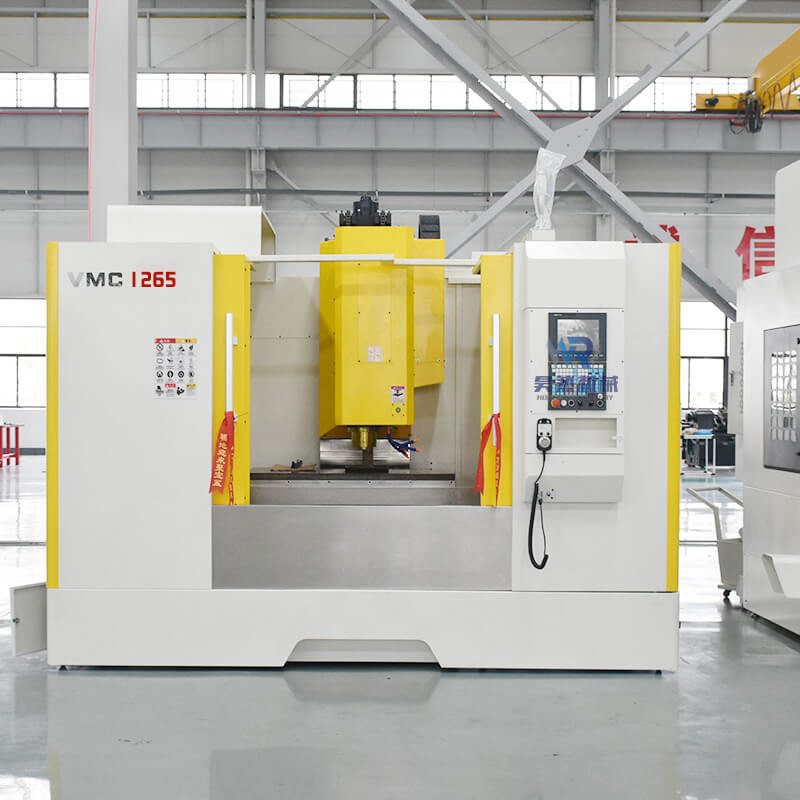

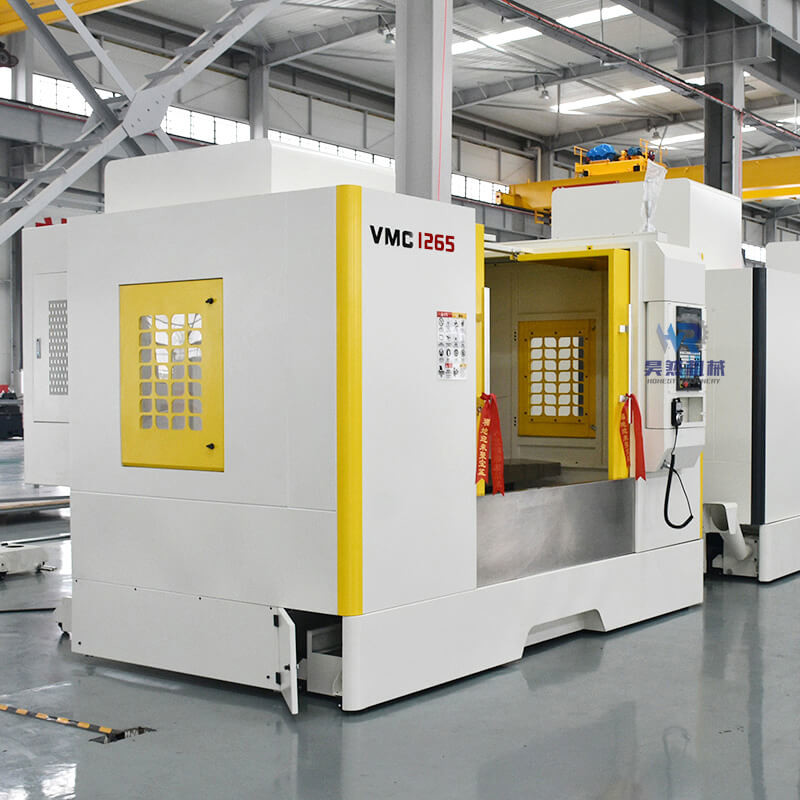

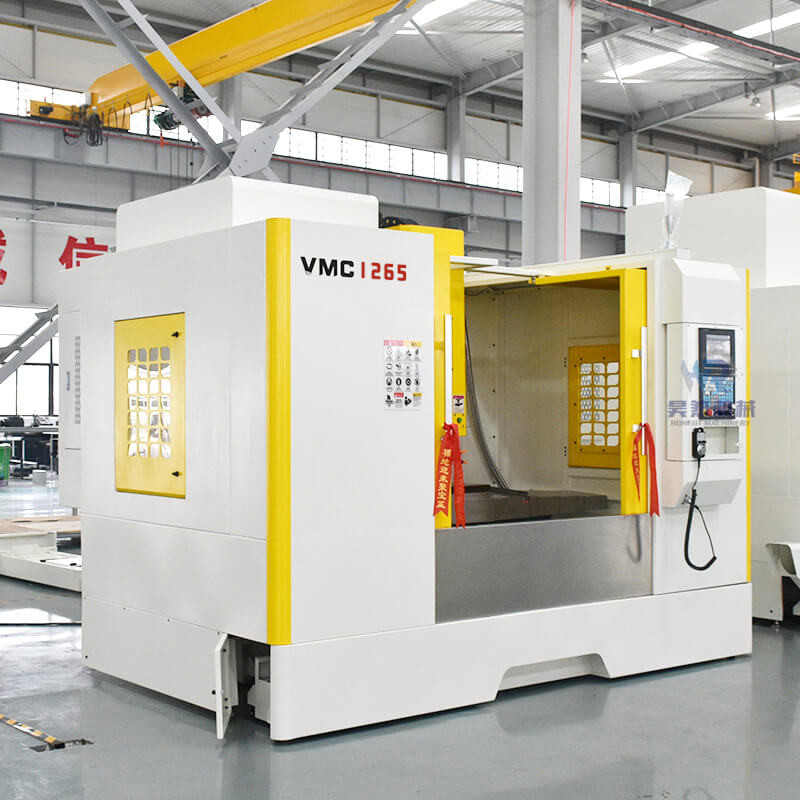

12000rpm 1265 Vmc Vertical Milling Center Medium Duty
| Place of Origin | China |
|---|---|
| Brand Name | HR |
| Certification | CE ISO |
| Model Number | vmc 1265 |
| Minimum Order Quantity | 1 |
| Price | 26700$-32000$ per one set |
| Packaging Details | wooden package |
| Delivery Time | After 15-30 Days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Trade Assurance |
| Supply Ability | 200 per a month |
Product Details
| Name | Knd Controller 5axis Vmc1265 Vertical Machine Center | Number Of Axes | 5 |
|---|---|---|---|
| Machining Capacity | Medium Duty | Range Of Spindle Speed(r.p.m) | 8000 - 12000 |
| No. Of Spindles | Single | Spindle Taper | BT40 |
| Positioning Accuracy (mm) | ±0.005 | Repeatability (X/Y/Z) (mm) | ±0.002 |
| Highlight | 12000rpm vertical milling center,1265 vmc vertical milling center,1265 vmc vertical machining center |
||
Product Description
Metalworking Vertical Milling Center Vmc1265 5 Axis Horizontal Milling Machine
Product Paramenters
Features:
1. The machine tool uses the traditional O-type layout, with a compact, neat appearance and less occupied area.
2. The bed seat, vertical column, tool slide and other components are all adopt symmetric thermal and box type dense reinforcement grid stiffened ribbon design, shaped with resin sand, featuring high precision and stability as well as good rigidity.
3. X, Y, Z three-axis have large travel, especially suitable for the special needs of the mold making industry to increase stroke.
1. The machine tool uses the traditional O-type layout, with a compact, neat appearance and less occupied area.
2. The bed seat, vertical column, tool slide and other components are all adopt symmetric thermal and box type dense reinforcement grid stiffened ribbon design, shaped with resin sand, featuring high precision and stability as well as good rigidity.
3. X, Y, Z three-axis have large travel, especially suitable for the special needs of the mold making industry to increase stroke.
4. Equipped with a complete security protection device and designs that integrate the electric, mechanical, and pneumatic technology, the machine boasts advanced layout, environmentally friendly design, and easy operation and maintenance.
5. Spindle with a big motor boasts high spindle speed, great power, suitable for high metal removal rate and efficient processing needs.
6. X, Y, Z three-axis all adopt NSK special screw bearings with high precision. Plus pre-tensioning technique, it guarantees high rigidity and precision of the feed shaft.
5. Spindle with a big motor boasts high spindle speed, great power, suitable for high metal removal rate and efficient processing needs.
6. X, Y, Z three-axis all adopt NSK special screw bearings with high precision. Plus pre-tensioning technique, it guarantees high rigidity and precision of the feed shaft.
Product Advantages
The advantages of Machining center 1265
1. Good rigidity: guide of a widened span for the machine body with high rigidity and great ability of shock absorption.
2. High efficiency: equipped with a tool magazine featuring swift automatic tool changing and rigidity tapping
3. Large travel: larger travels in all three directions than those of the same specifications in the market.
4. New structure: Spindle with floating tool stroke and ball screw pre-tensioned to ensure long service life and steady accuracy.
5. Optimal configuration: imported major outsourcing parts and components including the CNC system, spindle unit, tools magazine,ball screw, bearings, etc.
2. High efficiency: equipped with a tool magazine featuring swift automatic tool changing and rigidity tapping
3. Large travel: larger travels in all three directions than those of the same specifications in the market.
4. New structure: Spindle with floating tool stroke and ball screw pre-tensioned to ensure long service life and steady accuracy.
5. Optimal configuration: imported major outsourcing parts and components including the CNC system, spindle unit, tools magazine,ball screw, bearings, etc.
Optional accessories
The machine can be equipped with many accessories to carry out different works. Mostly, the machine can be equipped with the 4th axis rotary table or dividing head, we can supply China brand and Taiwan brand, it can be equipped with tool setting probe. You can use tool setting probe to measure tool length,diameter etc. And you can also choose screw type chip conveyor or chain type conveyor.
You can choose all the optional accessories according to your demand. If you need any other accessories, we can talk in details, we will try our best to satisfy all your request.
You can choose all the optional accessories according to your demand. If you need any other accessories, we can talk in details, we will try our best to satisfy all your request.
Application Example
This VMC is suitable for mechanical processing and mold making .And it can adapt to the processing
requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling
,tapping,boring ,etc.
requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling
,tapping,boring ,etc.
Packaging＆Shipping
1. Outside package: Standard marine export plywood case.
2. Inner package: Stretchy film and plastic film for humidity. We can
package according to your requests. Delivery Detail: Shipped in 15-30 working days after payment.
package according to your requests. Delivery Detail: Shipped in 15-30 working days after payment.
