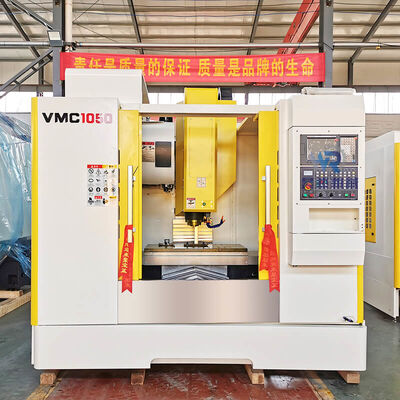

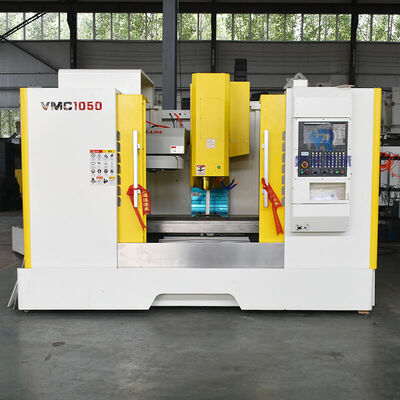

VMC 1050 Heavy Duty 4 Axis CNC VMC Machine Design For Metal Cutting
| Place of Origin | China |
|---|---|
| Brand Name | HR |
| Certification | CE ISO |
| Model Number | vmc 1050 |
| Minimum Order Quantity | 1 |
| Price | 26700$-32000$ per one set |
| Packaging Details | wooden package |
| Delivery Time | After 15-30 Days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Trade Assurance |
| Supply Ability | 200 per a month |
Product Details
| Name | VMC1050 4 Axis Heavy Duty Cutting Center Cnc Machining Vertic Cnc Vertical Machining Center | Number Of Axes | 4 |
|---|---|---|---|
| Machining Capacity | Medium Duty | Range Of Spindle Speed(r.p.m) | 8000 - 12000 |
| No. Of Spindles | Single | Spindle Taper | BT40 |
| Positioning Accuracy (mm) | ±0.005 | Repeatability (X/Y/Z) (mm) | ±0.002 |
| Highlight | Metal vmc machine design,4 Axis vmc machine design,vmc 1050 |
||
Product Description
VMC 1050 Heavy Duty 4 Axis CNC VMC Machine Design For Metal Cutting
Product Paramenters
Main Feature:
1 High-precision castings, quenched to eliminate internal stress and ensure accuracy
2 CE standard electrical, neat lines, easy to troubleshoot and repair, high safety factor
3 The three-axis adopts high-precision ball screw, combined with precision nut preloading and tail pre-tensioning device to ensure that the backlash and thermal deformation of the machine are kept low for a long time.
4 The spindle tool change mode adopts pneumatic mechanism. When the tool is used, the spindle is evenly stressed to prolong the bearing life.
5 High-precision Taiwan spindle, good stability and long life
6 Select the wiring linear guide, the brand of Taiwan silver, with high rigidity, low noise characteristics, can do rapid displacement and obtain the best cycle accuracy.
7 Fully automatic electronic lubrication system for uniform oil supply and good stability.
Product Advantages
The advantages of Machining center
1.The fuselage and main components are high strength cast iron, microstructure stabilit, ensure the stability of machine tool for long-term use. 2.The column at the bottom of A type bridge type structure, combined with the big box base, greatly reduce the vibration of machine on heavy cutting 3.The pre tension precision ball screw drive 4.The high speed, high precision, high rigidity spindle unit 5.The design of oil-water separation 6.The intermittent automatic lubrication 7 Automatic scraping knife system
Machine detection
Application Example
This VMC is suitable for mechanical processing and mold making .And it can adapt to the processing
requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling
,tapping,boring ,etc.
requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling
,tapping,boring ,etc.
