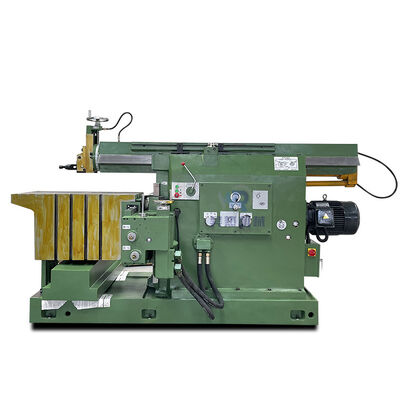

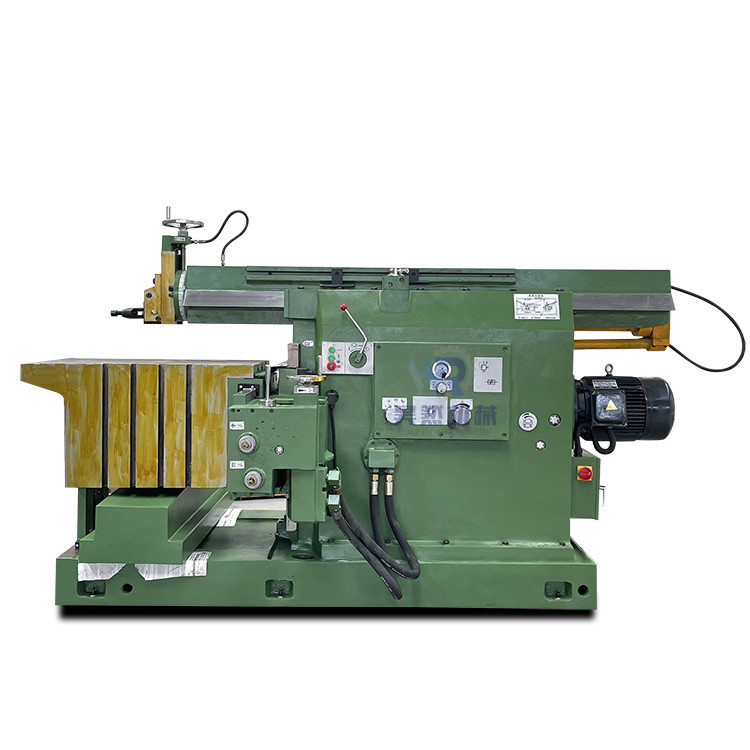

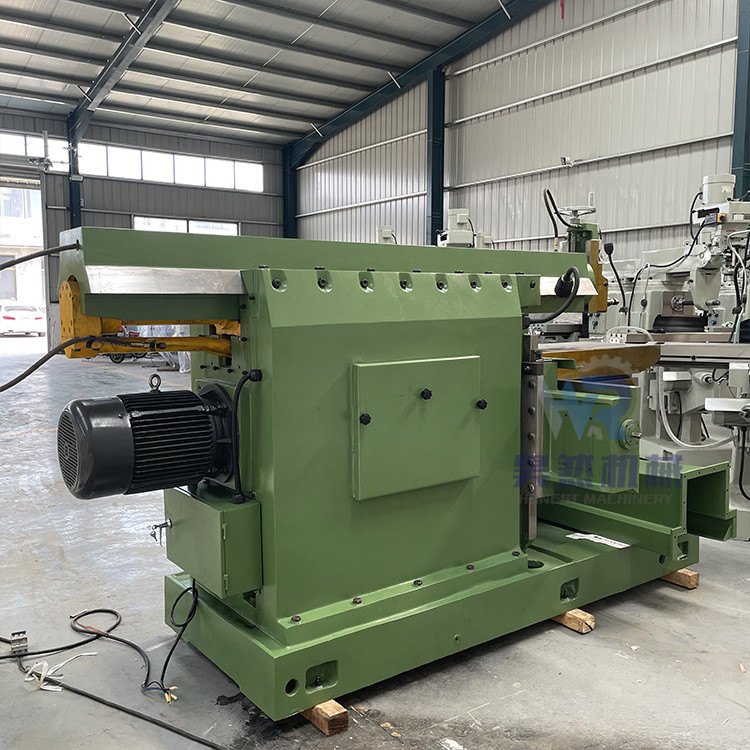

Worktable Hydraulic Shaping Machine Horizontal Shaper Machine For Metal Processing
Brand Name:
HR
Model Number:
BY60100
Place of Origin:
china
Certification:
ceiso
Minimum Order Quantity:
1set
Price:
usd4500-6000
Supply Ability:
40set/month
Product Details
| Model: | BY60100 | Max. Shaping Length(mm): | 1000 |
|---|---|---|---|
| Worktable Size (L*W) (mm): | 1000*500 | Tool Post Travel (mm): | 160 |
| Max. Cutting Force: | 28000 | Main Motor Power (kw): | 7.5 |
| Overall Size (L*W*H) (mm): | 3615*1574*1760 | Net Weight: | 4200KG |
| Highlight |
Horizontal hydraulic shaping machine,Worktable hydraulic shaping machine,Worktable horizontal shaper machine |
||
Product Description
Metal Processing Hydraulic Shaping Machine Horizontal Shaper Machine
Horizontal Shaper Machine Machine Features:
1. The tool post can rotate with more angle in the vertical plane,
2. Manual feeding is available For tool post.
3. For slotting shaping more economic machining equipment.
4. worktable feeding on cross and vertical specially for swallow tail machining and channel machining.
5. suitable for single piece or small match production.
Product Details
Packaging＆Shipping
Packaging Details: 1. Outside package: Standard marine export plywood case. 2. Inner package: Stretchy film and plastic film for humidity. We can package according to your requests. Delivery Detail: Shipped in 20-30 working days after payment.
Certifications
All products are available upon request, with or without trademarks. If you need OEM service with your own brand or product, please let us know. If you have any other specific requirements, please feel free to contact us. Our factory has obtained the import and export license issued by the Ministry of foreign trade, and passed the iso9001 quality management system certification and CE certification. In the quality layer by layer, we will wholeheartedly serve for the majority of customers.
customer visiting
We welcome customers to visit the factory, we will let you buy, we will have customers to visit the factory and customers online purchase feedback, through feedback learning experience, continuous progress, better service for you. Shandong Honest is willing to unremitting pursuit and efforts, hand in hand with merchants to create a brilliant future
Company information
Shandong honest Machinery Co., Ltd. is a provincial key enterprise specializing in mechanical product R & Development of numerical control equipment. It integrates development, production and sales. The company has a series of CNC Milling Machine ,Machining Center ,Grinding Machines,Milling Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on . which are widely used in machinery, mold, advertising, metal processing,in China and exported to Asia, Europe, North America, South America, Africa and other countries. It has advanced manufacturing technology, large production scale and high product quality. Professional user training and timely after-sales service are the basis to ensure customer satisfaction.
Product Highlights
Metal Processing Hydraulic Shaping Machine Horizontal Shaper Machine Horizontal Shaper Machine Machine Features: 1. The tool post can rotate with more angle in the vertical plane, 2. Manual feeding is available For tool post. 3. For slotting shaping more economic machining equipment. 4. worktable ...
