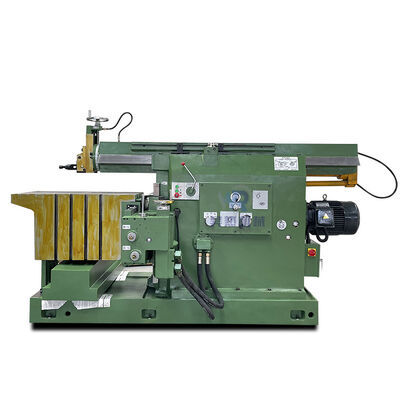

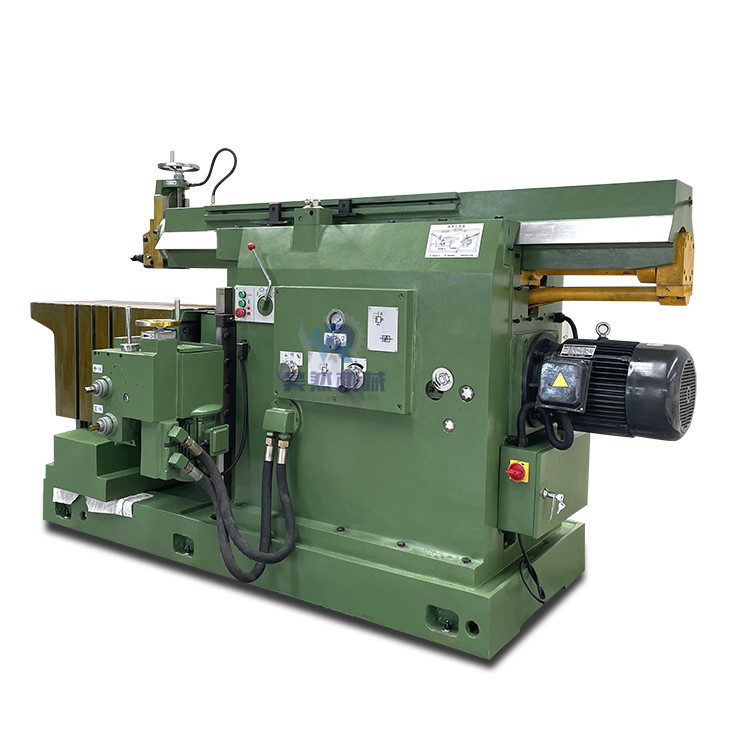

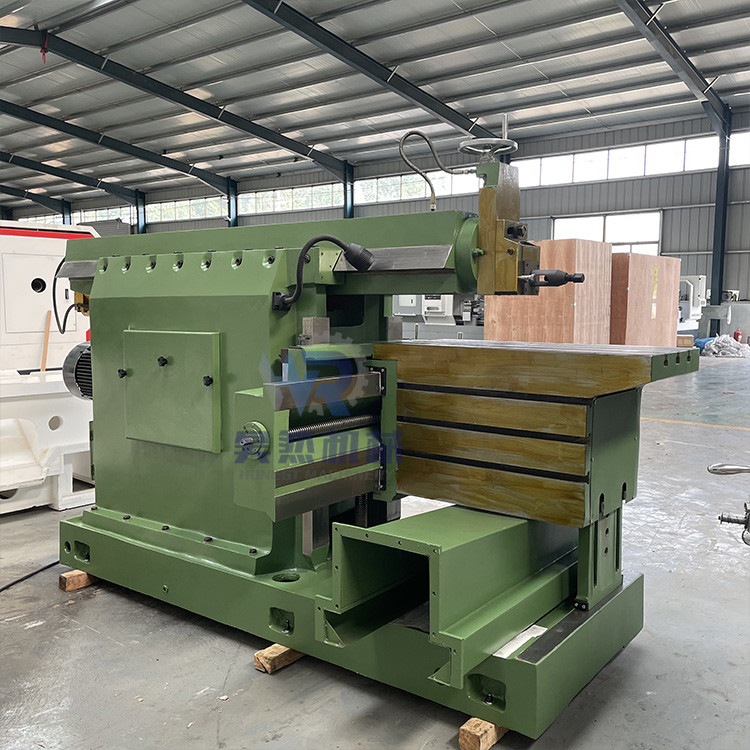

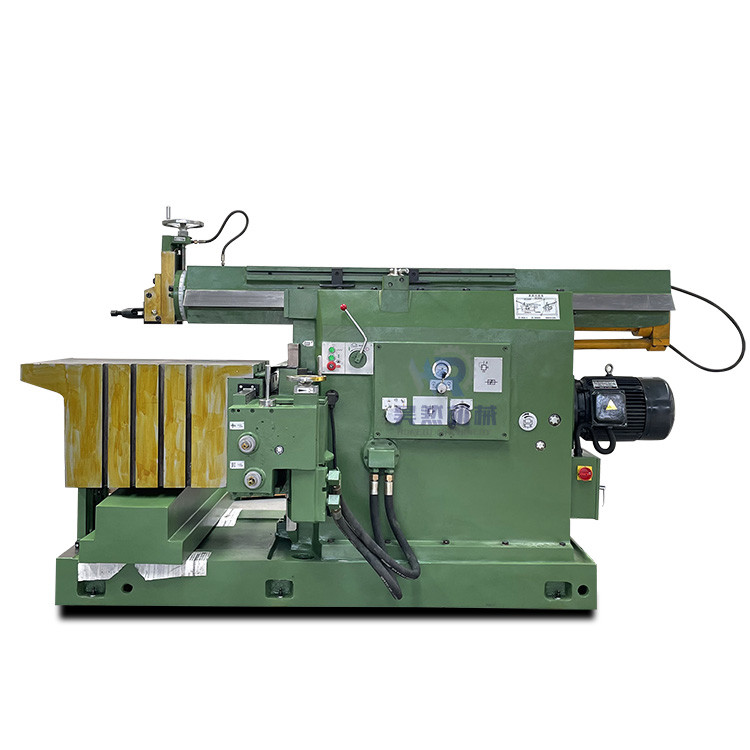

Bullhead Ram Metal Milling Machine Shaping Machine Horizontal Shaper
| Place of Origin | china |
|---|---|
| Brand Name | HR |
| Certification | ceiso |
| Model Number | BY60100 |
| Minimum Order Quantity | 1set |
| Price | usd4500-6000 |
| Packaging Details | wooden packing |
| Delivery Time | 30day |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 40set/month |
Product Details
| Name | Metal Shaper BY60100 Hydraulic Shaping Machine | Max. Shaping Length(mm) | 1000 |
|---|---|---|---|
| Worktable Size (L*W) (mm) | 1000*500 | Tool Post Travel (mm) | 160 |
| Max. Cutting Force | 28000 | Main Motor Power (kw) | 7.5 |
| Overall Size (L*W*H) (mm) | 3615*1574*1760 | Net Weight | 4200KG |
| Highlight | Bullhead Metal Milling Machine,ram Metal Milling Machine,Bullhead horizontal shaper |
||
Product Description
Product description
The bullhead planer is a planer for linear reciprocating motion. The ram has a planer and is named after the turret at the front end of the ram. The main movement of the bullhead planer mainly using the small and medium-sized bullhead planer is mostly driven by the crank rocker mechanism, so the moving speed of the ram is not uniform.
Large-scale bullhead planers are mostly hydraulically driven, and the ram is basically moving at a constant speed. Planes, forming faces and grooves on small and medium-sized workpieces in a single batch.
Product features
a. The workbench of the head planer has a moving mechanism for lateral and lifting; it is used to plan the inclined plane, there by expanding the scope of use.
b. the feed system of the planer adopts a cam mechanism and has 10 feeds. It is also very convenient to change the amount of the knife.
c. The bullhead planer is equipped with an overload safety mechanism in the cutter system. When the operation is inadvertent or affected by external force and the cutting overload, the knife slips on its own, and the non-destructive parts ensure the normal operation of the machine.
a. The workbench of the head planer has a moving mechanism for lateral and lifting; it is used to plan the inclined plane, there by expanding the scope of use.
b. the feed system of the planer adopts a cam mechanism and has 10 feeds. It is also very convenient to change the amount of the knife.
c. The bullhead planer is equipped with an overload safety mechanism in the cutter system. When the operation is inadvertent or affected by external force and the cutting overload, the knife slips on its own, and the non-destructive parts ensure the normal operation of the machine.
Product Description
Packaging＆Shipping
Packaging Details:
1. Outside package: Standard marine export plywood case.
2. Inner package: Stretchy film and plastic film for humidity. We can package according to your requests. Delivery Detail: Shipped in 20-30 working days after payment.
Certifications
All products are available upon request, with or without trademarks. If you need OEM service with your own brand or product, please let us know. If you have any other specific requirements, please feel free to contact us. Our factory has obtained the import and export license issued by the Ministry of foreign trade, and passed the iso9001 quality management system certification and CE certification. In the quality layer by layer, we will wholeheartedly serve for the majority of customers.
customer visiting
We welcome customers to visit the factory, we will have customers to visit the factory and customers online purchase feedback, through feedback learning experience, continuous progress, better service for you.Shandong Honest is willing to unremitting pursuit and efforts, hand in hand with merchants to create a brilliant future
FAQ
1: How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe
Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe
Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight
