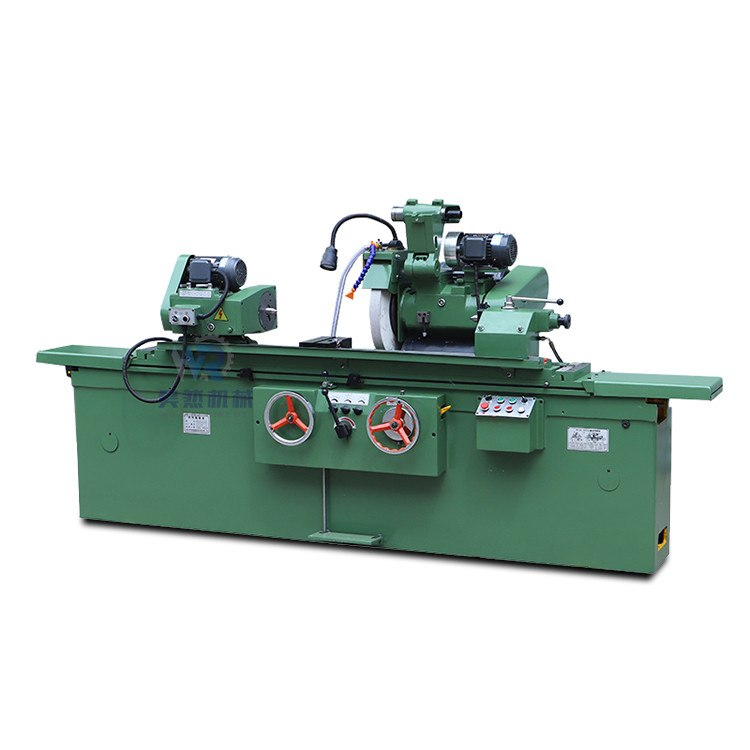

M1432 High Precision Cylindrical Grinding Machine

Place of Origin	CHINA
Brand Name	HR
Certification	CE
Model Number	M1432-1000
Minimum Order Quantity	1 set
Price	12000 USD
Packaging Details	Standard material packaging
Delivery Time	30 working days
Payment Terms	L/C, T/T
Supply Ability	100sets/month

Product Details

Certification	CE	Voltage	220/380V,Customriszed
Power(w)	1.5KW	Condition	New
Weight	3700kg	Cnc Or Not	Normal
After-sales Service Provided	Engineers Available To Service Machinery Overseas	Spindle Taper	MT4
Highlight	M1432 Cylindrical Grinding Machine , High Precision Cylindrical Grinding Machine , High Precision Grinding Machine

Leave a Message

Product Description

SPECIFICATIONS		Units	M1432x1000	M1432x1500
Capacity	Max.Dia ground	mm	320	320
	Max.length ground	mm	1000	1500
	Min.Dia ground	mm	10	10
	Max.load weight between centers	kg	150	150
	Max.ground hold dia(ID)	mm	125	125
	Max. grinding depth	mm	160	160
	Center Height	mm	165	165
	Max. length between centers	mm	1000	1500
Worktable	Swivel angle CW/CCW	°	3/6	3/6
	Infinitely variable hydraulic speed control	m/min	0.1-3	0.1-3
	Max.travel	mm	1010	1510
	Handwheel /revolution	mm	9.6	9.6
Workhead	Work head swiveling angle	°	CCW:60° ; CW:30°	CCW:60° ; CW:30°
	Spindle taper		Morse No.4	Morse No.4
	Speed range	rpm	30,48,75,118,190,300	30,48,75,118,190,300
Tailstock	Center travel/Manual	mm	≧23	≧23
Tailstock	Center travel/Hydraulic	mm	≧15	≧15
Internal grinding tool	Internal grinding spindle speed	r/min	14000	14000
Internal grinding tool	Spindle taper		1:5	1:5
Motor	Compulsory lubrication motor	Kw	1.5	1.5
	Coolant motor		0.15	0.15
	Grinding wheel motor		5.5	5.5
	Wotkhead motor		0.75	0.75
	Internal grinding motor		1.1	1.1
Wheel head	Grinding wheel size (D x W x B)	mm	50052203	50052203
	Revolution angle(CW/CCW)	°	10/5	10/5
	Spindle speed	rpm	1316	1316
	Fast travel speed	r/min	≧30	≧30
	Lateral manual stroke	mm	65	65
	Handwheel feed/revolution	mm	1	1
	Min feed	mm	0.002	0.002
	Wheelhead total feed travel	mm	150	150
General Specification	Machine size	mm	3400x1800x1800	430016501700
General Specification	Machine weight	kg	3700	4200

This machine is a common cylindrical grinder, mainly used for grinding cylindrical and conical surfaces of parts, suitable for tool, repair and small and medium batch workshops. The longitudinal movement of the worktable adopts hydraulic or manual stepless speed change. The horizontal feed of the grinding wheel frame adopts hydraulic fast forward and backward and manual feed. The workpiece, grinding wheel, oil pump and coolant pump are driven separately by their own motors.

Machine Details

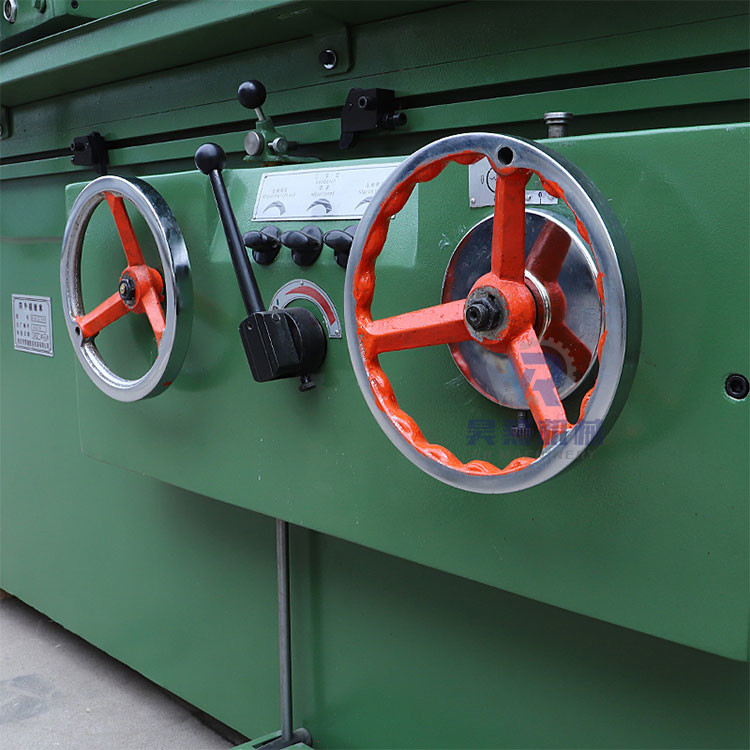

Hand wheel rotation

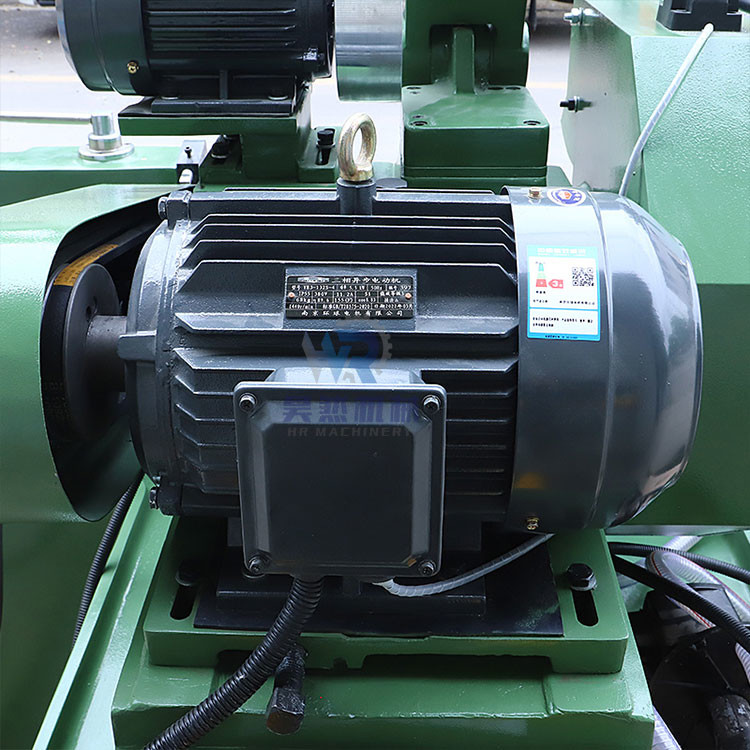

Motor

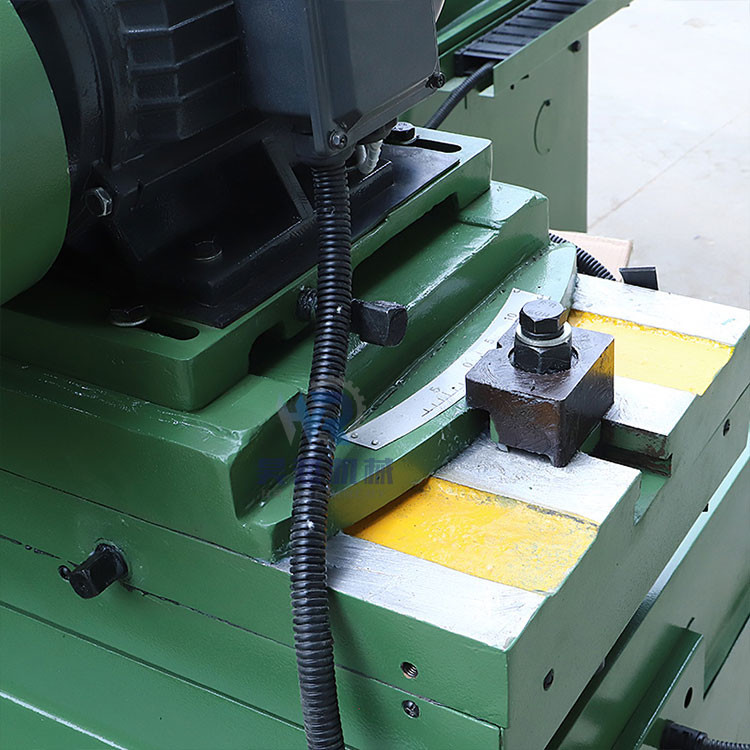

Bed details
