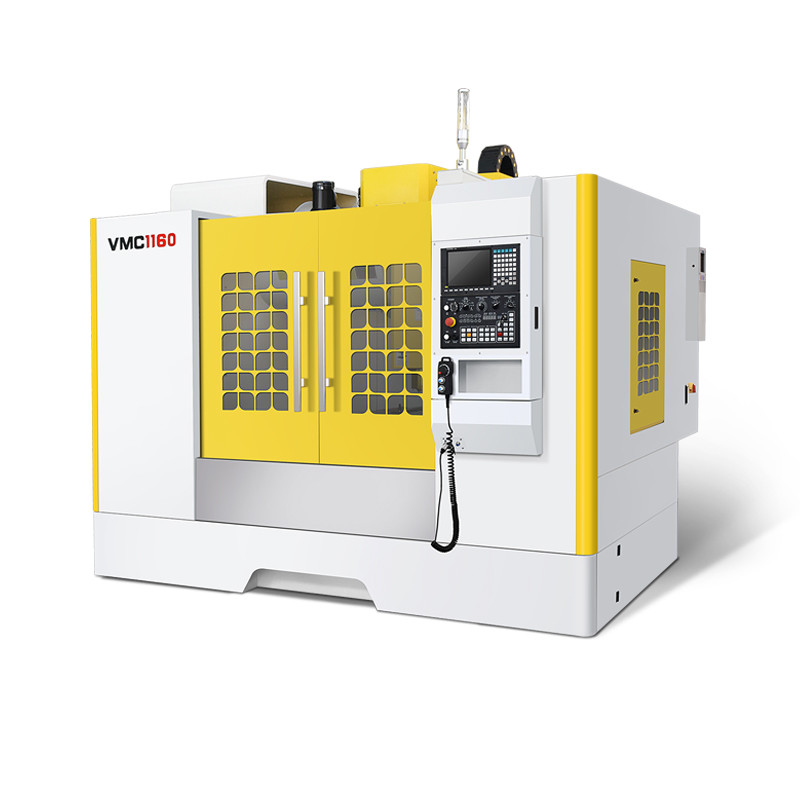

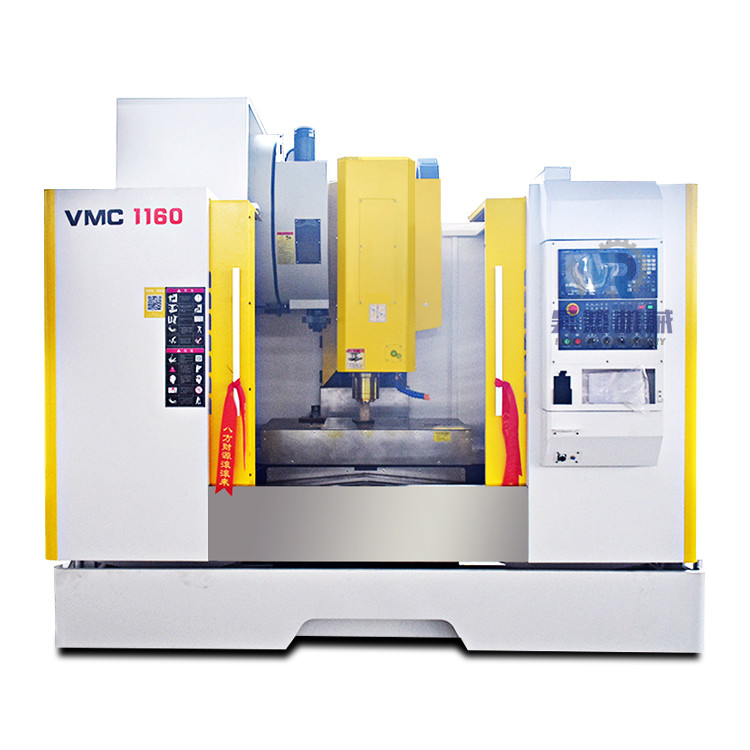

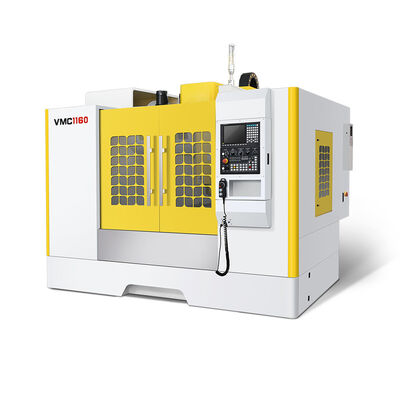

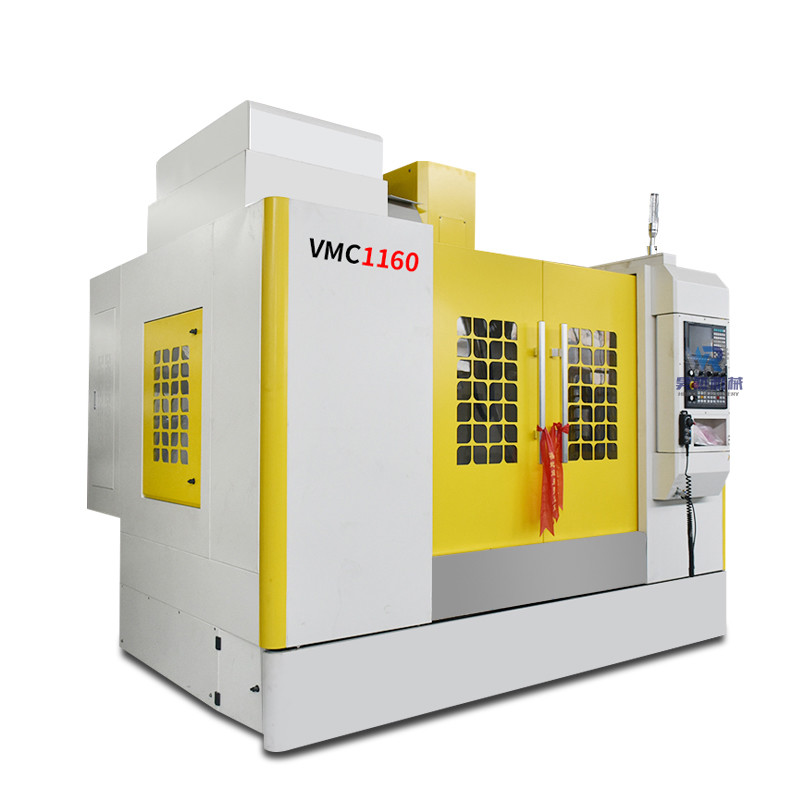

5 Axis Vertical Automated CNC Milling Machine Center VMC 1160
| Place of Origin | china |
|---|---|
| Brand Name | HR |
| Certification | ceiso |
| Model Number | vmc1160 |
| Minimum Order Quantity | 1set |
| Price | 19000-40000usd |
| Packaging Details | wooden packing |
| Delivery Time | 30day |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram, Western Union |
| Supply Ability | 40set/month |
Product Details
| Model | VMC1160 | Table Size (mm) | 1200*600 |
|---|---|---|---|
| Max. Allowable Load (Kg) | 800 | X-axis Stroke (mm) | 1100 |
| Y-axis Travel (mm) | 600 | Z-axis Travel (mm) | 600 |
| T-slot | 5-18*100 | Spindle Speed (r/min) | 8000 |
| Highlight | 5 Axis automated cnc milling machine,VMC1160 automated cnc milling machine,5 Axis vmc 1160 |
||
Product Description
5 Axis Vertical Automated CNC Milling Machine Center VMC 1160
Product Description
VMC series vertical CNC milling machine adopts vertical frame layout, the column is fixed on the bed body, the headstock moves up and down along the column (Z direction), the slide moves longitudinally along the bed (Y direction), and the table moves laterally along the slide (X To) the structure.
The large parts such as bed, workbench, sliding seat, column and headstock are made of resin sand castings, and after two aging treatments, the stress is eliminated, the stability is good, the strength is high, and the stability of the long-term use precision of the machine tool is ensured. It provides a guarantee for the stability of machine performance. These large pieces are optimized by Soldworks and Ansys to improve the rigidity and stability of the large parts and the whole machine, effectively suppressing the deformation and vibration of the machine tool caused by the cutting force.
Product Details
Taiwan spindle adopts high-quality bearings with good rigidity. BT40 tool handle is standard and BT50 tool handle is optional.HT300 cast iron is adopted for the main foundation parts such as base, sliding seat, workbench, column and headstock; The substructure is a box structure, and the compact and reasonable symmetrical reinforcement structure ensures the high rigidity, bending resistance and damping performance of the foundation parts; A-span column and internal grid reinforcement effectively ensure the rigidity and accuracy of z-axis strong cutting; The basic parts are molded with resin sand and aging treatment, which provides a guarantee for the stability of the long-term service performance of the machine tool.
sample
it is widely used to produce the auto spare
parts, medical treatment instrument and any kind of injection
mould, blowing mould, die-casting mould, car LED mould, toy mould and precise mould and o on.
parts, medical treatment instrument and any kind of injection
mould, blowing mould, die-casting mould, car LED mould, toy mould and precise mould and o on.
Packaging＆Shipping
Packaging Details: 1. Outside package: Standard marine export plywood case. 2. Inner package: Stretchy film and plastic film for humidity. We can package according to your requests. Delivery Detail: Shipped in 30 working days after payment.
Certifications
All products are available upon request, with or without trademarks. If you need OEM service with your own brand or product, please let us know. If you have any other specific requirements, please feel free to contact us. Our factory has obtained the import and export license issued by the Ministry of foreign trade, and passed the iso9001 quality management system certification and CE certification. In the quality layer by layer, we will wholeheartedly serve for the majority of customers.
customer visiting
We welcome customers to visit the factory, we will let you buy, we will have customers to visit the factory and customers online purchase feedback, through feedback learning experience, continuous progress, better service for you. Shandong Honest is willing to unremitting pursuit and efforts, hand in hand with merchants to create a brilliant future
