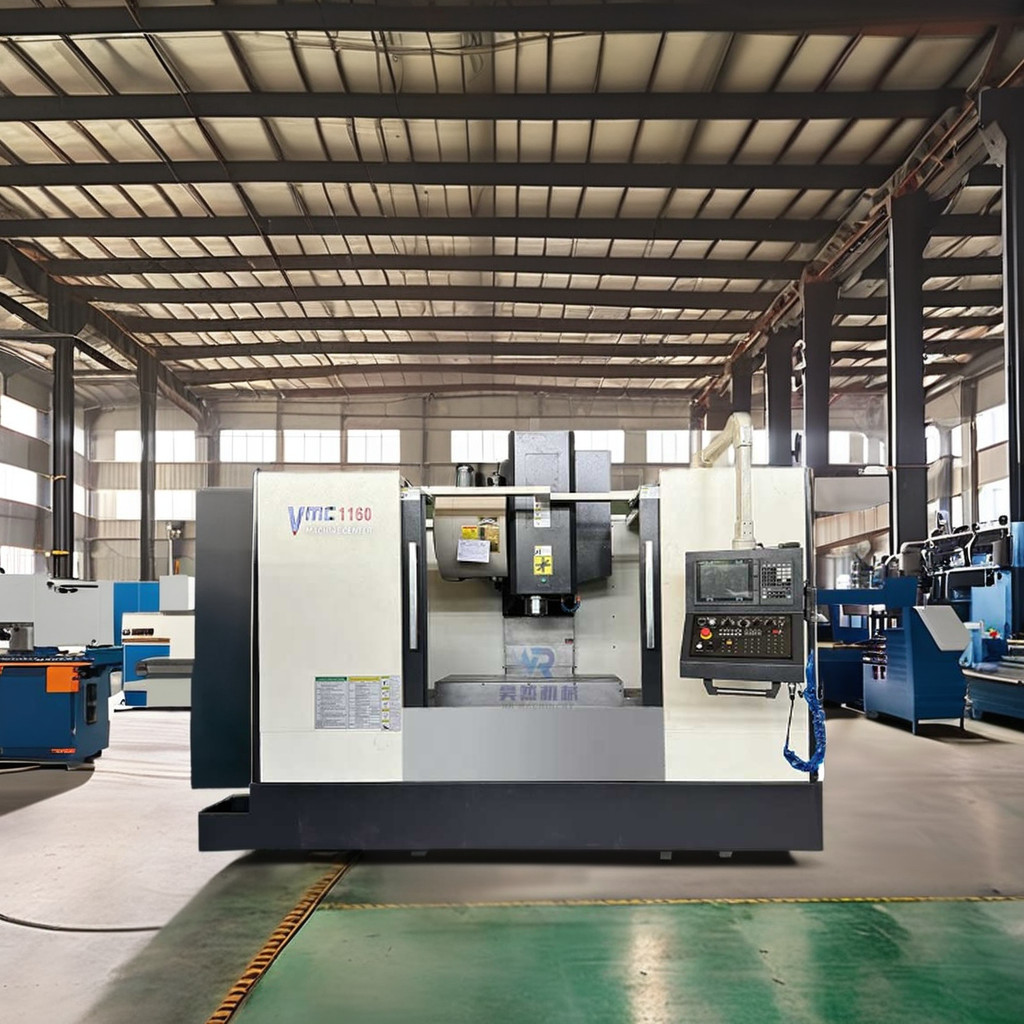

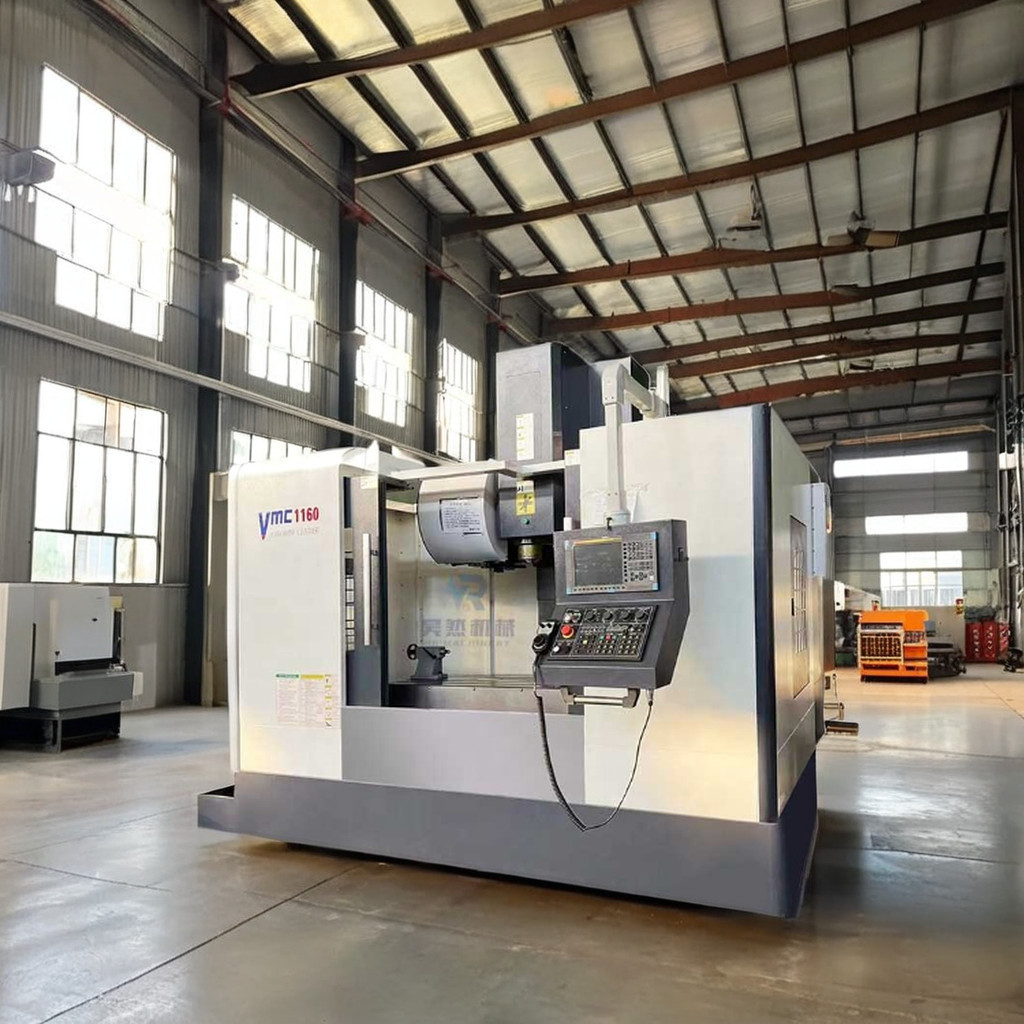

Technical Support CNC VMC1160 Good Quality Vertical Machining Center
Brand Name:
HR
Model Number:
VMC1160
Place of Origin:
CHINA
Certification:
CE
Minimum Order Quantity:
1 sets
Price:
30000usd
Supply Ability:
50 sets 1 month
Product Details
| Tool Capacity: | 24 | Travel Distance (X/Y/Z): | 1100mm/600mm/600mm |
|---|---|---|---|
| Number Of Axes: | 3 | Structure: | VERTICAL TYPE |
| Voltage: | 380V 50HZ | Spindle Taper Hole: | BT40-150 |
| Warranty: | 1 Year | Oem: | CUSTOMIZABLE |
| Weight: | 6000kg | Power Requirement: | 20kVA |
| Control Panel: | Ergonomic CNC Panel & MPG | Air Conditioned: | Electrical Cabinet |
| Product Type: | Machining Center | Condition: | New |
| Highlight |
Technical Support Vertical Machining Center,CNC VMC1160 Vertical Machining Center,Good Quality Vertical Machining Center |
||
Product Description
Product Description
CNC vertical machining cente is a semi closed-loop vertical machining center with X, y and Z three-axis servo direct control. The three axes are divided into hard rail and (optional: rolling linear guide). CNC milling machineThe guide rail has large load, wide span, high precision, compact and reasonable structure and overall dimensions. The main shaft is driven by servo motor through the same step belt. It can realize the one-time clamping of various complex parts such as discs, plates, shells, cams and molds, and can complete the processing of various processes such as drilling, milling, boring, expanding, reaming and rigid tapping. CNC milling machine CNC vertical machining cente suitable for the production of multi variety, medium and small batch products, and can meet the processing of complex and high-precision parts.CNC vertical machining center
Detailed description
Taiwan spindle BT40/BT50 Taiwan 24T arm type auto tool changer Taiwan P-grade high precision linear guide ways and Taiwan C3 grade precision ball screws. FANUC, SIEMENS,, MITSUBISHI, GSK cnc controllers are optional. Taiwan 4th or 5th axes rotary table is optional. Tools and workpiece measuring instrument are optional.
Application
It is widely used to produce the auto spare parts, medical treatment instrument and any kind of injection mould, blowing mould, die-casting mould, car LED mould, toy mould and precise mould and o on.Large steel molds are the first products requiring large cutting amount and fast processing speed. It is applicable to the processing of plastic mold industry, automobile tire industry, hardware industry, toy industry, handicrafts, fine stamping die, bronzing die, high-frequency die, embossing wheel die, die-casting die and graphite electrode. It is the best choice for mold manufacturing industry and parts processing.
Packing & Delivery
Product Highlights
Product Description Model Vmc640 VMC650 VMC840 VMC850 VMC855 Table size (mm) 800*300 1000*400 1000*400 1000*500 1000*550 Max. allowable load (Kg) 400 400 300 500 500 X-axis stroke (mm) 600 650 800 800 800 Y-axis travel (mm) 400 400 400 500 550 Z-axis travel (mm) 450 550 550 500 550 T-slot 3-18-120 3...
