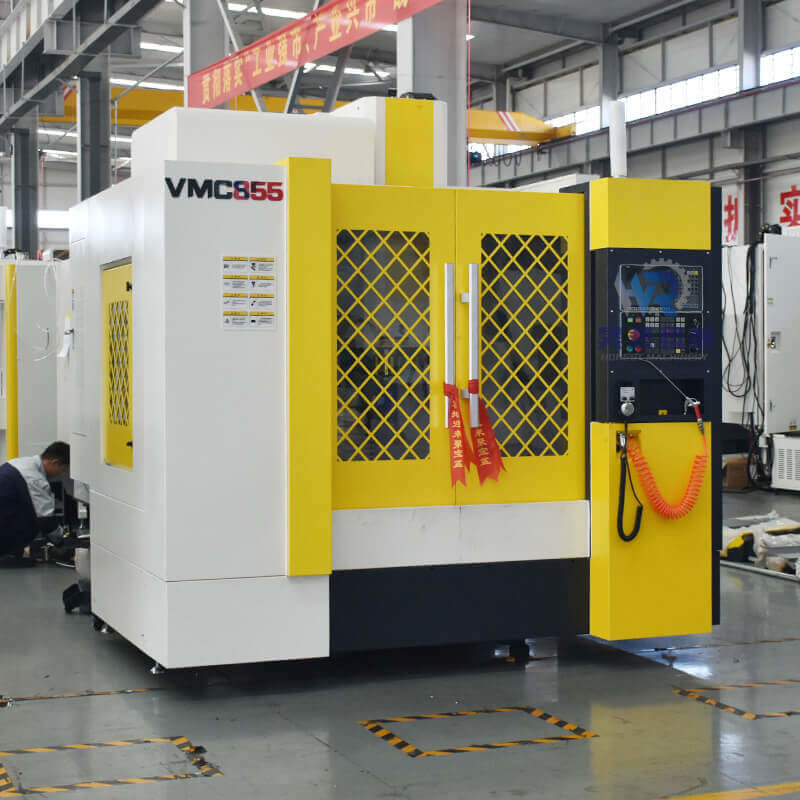

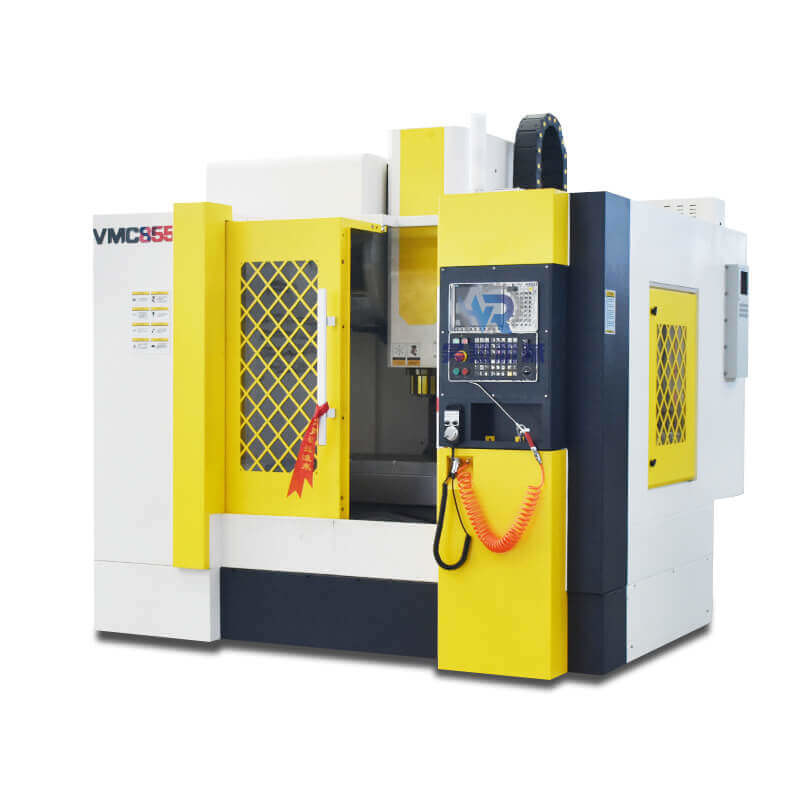

CNC Lathe VMC Machining Center 4 Axis VMC855 For Automobile Parts

Brand Name: HR
Model Number: vmc855
Place of Origin: china
Certification: ceiso
Minimum Order Quantity: 1set
Price: usd 19000-40000
Supply Ability: 40set/month
Tags

650 VMC Machining Center

KND VMC Machining Center

vmc 650 cnc Machining Center

Product Details

Table Size (mm): 1000*550 X-axis Stroke (mm): 800
Y-axis Travel (mm): 550 Z-axis Travel (mm): 550
Machine Weight (Kg): 5500 Type: Vertical
Voltage: 380V 50HZ Power(w): 7.5/11 KW
Highlight

VMC855 VMC Machining Center

,

4 Axis VMC Machining Center

,

VMC855 vmc lathe machine

Product Description

CNC Lathe VMC Machining Center 4 Axis VMC855 For Automobile Parts


Product Description
Machining center 855 machine tool, vertical machining center, can be used in aerospace, automobile parts, machining and mold manufacturing fields, suitable for medium and small parts of high precision and high efficiency processing and drilling, milling, tapping, boring automatic processing
Product Paramenters
Model
VMC650
VMC840
VMC850
VMC855
VMC966 I
Table size (mm)
1000x400
1000x400
1000x500
1000x550
1100x550
Max. allowable load (Kg)
400
300
500
500
600
X-axis stroke (mm)
650
800
800
800
900
Y-axis travel (mm)
400
400
500
550
600
Z-axis travel (mm)
550
550
500
550
600
T-slot
3-18-120
3-18-140
5-18-108
5-18-90
5-18-100
spindle center to Z-axis guide surface (mm)
485
445
552
590
663
spindle end face to work table (mm)
100-650
100-650
110-610
120-670
100-700
Spindle taper hole
BT40-120
BT40-120
BT40-140
BT40-150
BT40-150
Spindle speed (r/min)
8000
8000
8000
8000
8000
X/Y/Z rapid movement (m/min)
48/48/48
30/30/18
48/48/48
48/48/48
48/48/48
Machine Weight (Kg)
3800
3200
5300
5500
5600
Model
VMC1050
VMC1160
VMC1165
VMC1265 I
VMC1370 I
VMC1580
Table size (mm)
1200x420
1200x600
1200x600
1200x600
1400x700
1700X800
Max. allowable load (Kg)
500
800
800
800
800
1500
X-axis stroke (mm)
1000
1100
1100
1200
1300
1500
Y-axis travel (mm)
500
600
650
650
700
800
Z-axis travel (mm)
550
600
650
650
750
700
T-slot
5-18-100
5-18x100
5-18-100
5-18-100
5-18-130
5-22-135
spindle center to Z-axis guide surface (mm)
)575
650
710
710
713
855
spindle end face to work table (mm)
100-650
120-720
120-720
120-770
120-870
160-860
Spindle taper hole
BT40-150
BT40-150
BT40-150
BT40-150
BT40-150
BT50-155
Spindle speed (r/min)
8000
8000
8000
8000
8000
6000
X/Y/Z rapid movement (m/min)
18/18/18
36/36/24
36/36/36
36/36/36
24/24/24
24/24/18
Machine Weight (Kg)
5500
6500
6800
7000
8000
12000
CNC Lathe VMC Machining Center 4 Axis VMC855 For Automobile Parts 0
CNC Lathe VMC Machining Center 4 Axis VMC855 For Automobile Parts 1
CNC Lathe VMC Machining Center 4 Axis VMC855 For Automobile Parts 2
Product Advantages

The advantages of Machining center 855

Tool Changer — A tool changer greatly increases a VMC's productivity by allowing for the automatic, computer-controlled selection of tools for a variety of tasks from rough cutting to fine hole boring.
Rotating Tables — Adding additional Axes to the machine can greatly increase its productivity by turning a simple three-axis machine into a four- or even five-axis system capable of machining complex components with varying surfaces (such as turbine blades). 6.Quick Loading Loaders — Another great addition to significantly increase productivity is the use of shuttle tables or other automatic part loading systems. These can decrease downtime and greatly increase the spindle “ON” time of most VMC systems.
CNC Lathe VMC Machining Center 4 Axis VMC855 For Automobile Parts 3
CNC Lathe VMC Machining Center 4 Axis VMC855 For Automobile Parts 4
Optional accessories
CNC Lathe VMC Machining Center 4 Axis VMC855 For Automobile Parts 5



The machine can be equipped with many accessories to carry out different works. Mostly, the machine can be equipped with the 4th axis rotary table or dividing head, we can supply China brand and Taiwan brand, it can be equipped with tool setting probe. You can use tool setting probe to measure tool length,diameter etc. And you can also choose screw type chip conveyor or chain type conveyor.
You can choose all the optional accessories according to your demand. If you need any other accessories, we can talk in details, we will try our best to satisfy all your request.
Machine detection
CNC Lathe VMC Machining Center 4 Axis VMC855 For Automobile Parts 6
CNC Lathe VMC Machining Center 4 Axis VMC855 For Automobile Parts 7
Application Example
This VMC is suitable for mechanical processing and mold making .And it can adapt to the processing
requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling
,tapping,boring ,etc.
CNC Lathe VMC Machining Center 4 Axis VMC855 For Automobile Parts 8

Product Highlights

CNC Lathe VMC Machining Center 4 Axis VMC855 For Automobile Parts Product Description Machining center 855 machine tool, vertical machining center, can be used in aerospace, automobile parts, machining and mold manufacturing fields, suitable for medium and small parts of high precision and high ...
