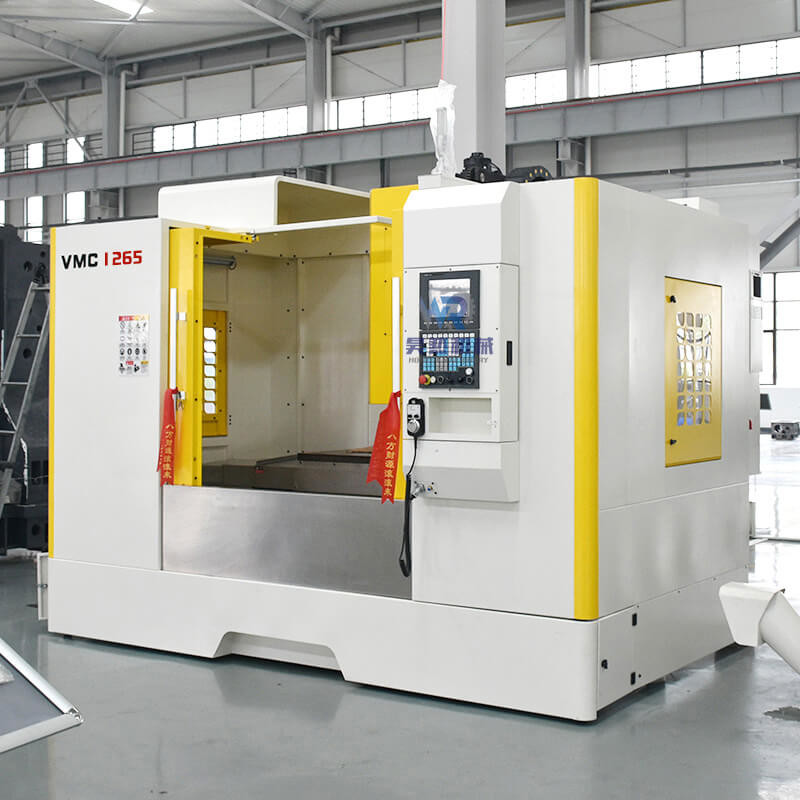

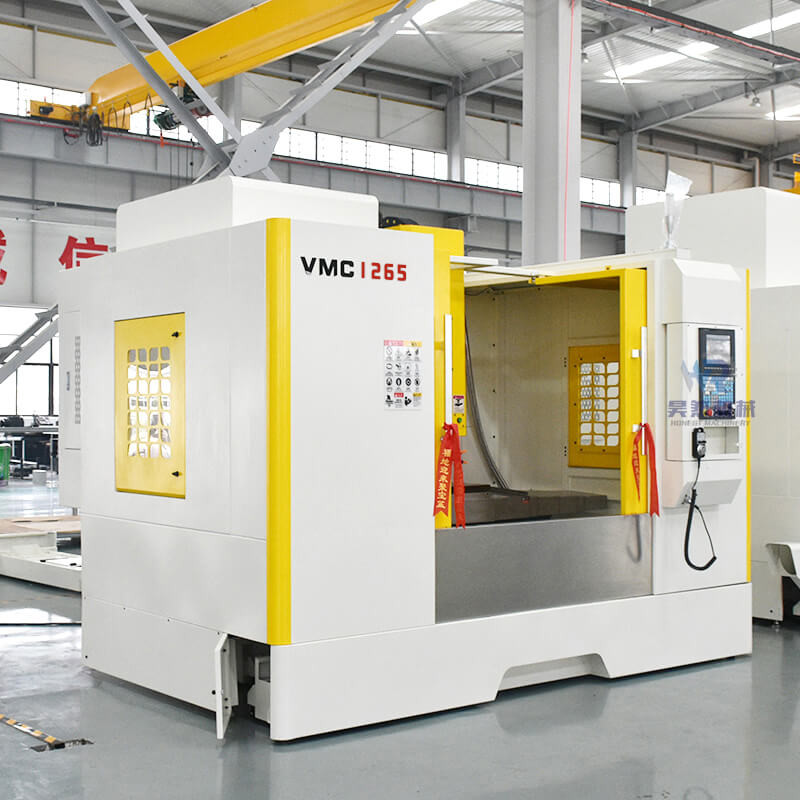

Vmc1265 Vertical VMC Machining Center CNC 3 Axis Vertical Milling Machine
| Place of Origin | China |
|---|---|
| Brand Name | HR |
| Certification | CE ISO |
| Model Number | vmc 1265 |
| Minimum Order Quantity | 1 |
| Price | 26700$-32000$ per one set |
| Packaging Details | wooden package |
| Delivery Time | After 15-30 Days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Trade Assurance |
| Supply Ability | 200 per a month |
Product Details
| Name | Vmc1265 3axis Cnc Vertical Machine Center | Number Of Axes | 3 |
|---|---|---|---|
| Machining Capacity | Medium Duty | Range Of Spindle Speed(r.p.m) | 8000 - 12000 |
| No. Of Spindles | Single | Spindle Taper | BT40 |
| Positioning Accuracy (mm) | ±0.005 | Repeatability (X/Y/Z) (mm) | ±0.002 |
| Highlight | Vmc1265 VMC Machining Center,3axis VMC Machining Center,Vmc1265 3 axis vertical milling machine |
||
Product Description
Vmc1265 Vertical VMC Machining Center CNC 3 Axis Vertical Milling Machine
Product Paramenters
Features:
1. The machine tool uses the traditional O-type layout, with a compact, neat appearance and less occupied area.
2. The bed seat, vertical column, tool slide and other components are all adopt symmetric thermal and box type dense reinforcement grid stiffened ribbon design, shaped with resin sand, featuring high precision and stability as well as good rigidity.
3. Spindles with the float tool stroke avoid the tool stroke force to pass on the spindle bearings, and effectively improve the life of the spindle.
4. Spindle equipped with imported major unit assembly , stepless speed change, high rotating accuracy and good dynamic balance precision. And also mounted positioning ring restore unit and AC main motor to perform rigidity tapping in high speed.
1. The machine tool uses the traditional O-type layout, with a compact, neat appearance and less occupied area.
2. The bed seat, vertical column, tool slide and other components are all adopt symmetric thermal and box type dense reinforcement grid stiffened ribbon design, shaped with resin sand, featuring high precision and stability as well as good rigidity.
3. Spindles with the float tool stroke avoid the tool stroke force to pass on the spindle bearings, and effectively improve the life of the spindle.
4. Spindle equipped with imported major unit assembly , stepless speed change, high rotating accuracy and good dynamic balance precision. And also mounted positioning ring restore unit and AC main motor to perform rigidity tapping in high speed.
Product Advantages
High-speed/high precision spindle
High rigidity,high precision,big hole diameter spindle design,adopyt the precise slide angle ball bearing support
High rotary spindle provides high-speed cutting for customers,ensure the long-term stabilization of machine tool's precision
The spindle adopts synchronous belt drive of big torsion,no friction and less noise
Optional accessories
The machine can be equipped with many accessories to carry out different works. Mostly, the machine can be equipped with the 4th axis rotary table or dividing head, we can supply China brand and Taiwan brand, it can be equipped with tool setting probe. You can use tool setting probe to measure tool length,diameter etc. And you can also choose screw type chip conveyor or chain type conveyor.
