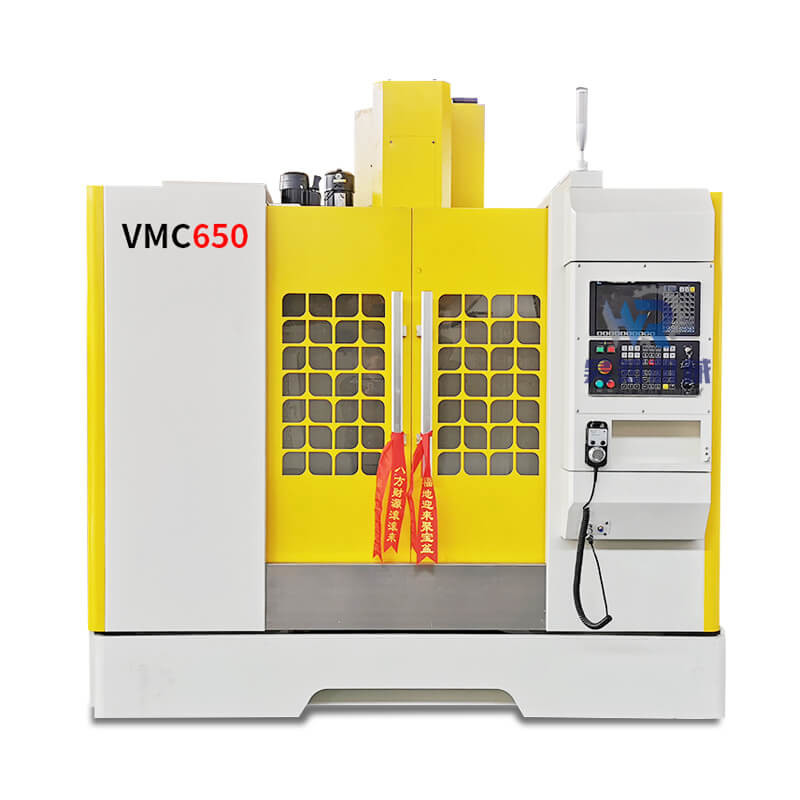

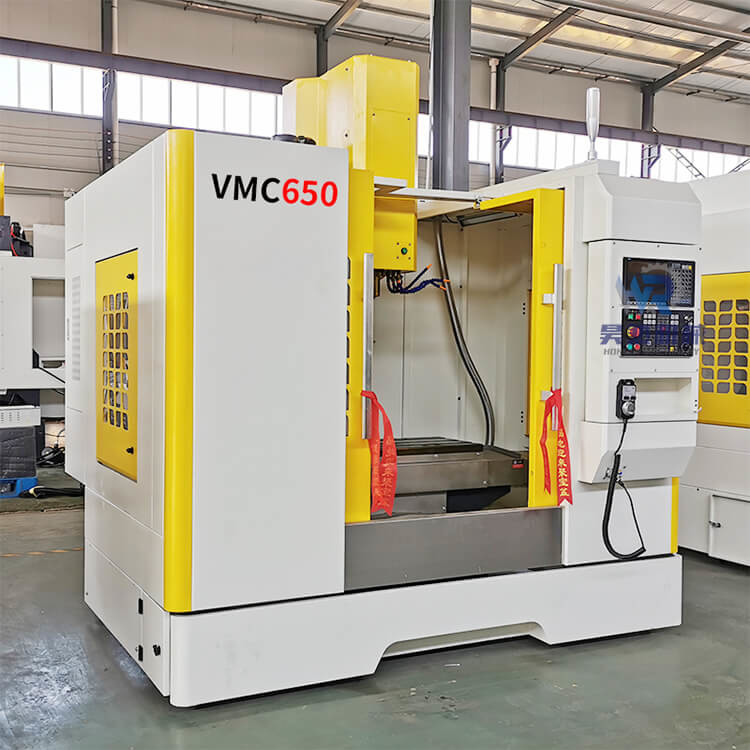

Vertical 5 Axis KND Controller VMC Machining Center VMC 650 CNC CE Certified
Product Details
| Name: | CE Certified High Rigidity Vertical 5 Axis KND Controller VMC 650 | Number Of Axes: | 5 |
|---|---|---|---|
| Machining Capacity: | Medium Duty | Range Of Spindle Speed(r.p.m): | 8000 - 12000 |
| No. Of Spindles: | Single | Spindle Taper: | BT40 |
| Positioning Accuracy (mm): | ±0.005 | Repeatability (X/Y/Z) (mm): | ±0.002 |
| Highlight |
650 VMC Machining Center,KND VMC Machining Center,vmc 650 cnc Machining Center |
||
Product Description
The advantages of CNC Vertical Milling Machine
Use 3D-CAD and finite element analysis to delevlop high-rigidity machine tool structure
Resin bonded sand molding,twice aging,and special tank-type structure and optimized rib-reinforced lay-out,make the machine tool of good rigidity and hysteresis loss
2 . Machining center 650 machine body base, slide block, workbench, column, spindle box and other main foundation parts adopt high rigid cast iron structure, stable metallographic structure, distributed in the internal network structure reinforcement,to ensure the high rigidity and bending resistance and shock absorption performance of the foundation parts; The basic parts are made of resin sand and treated by sandblasting, tempering and vibration effectively to ensure the stability of the machine's accuracy in long-term use and provide a guarantee for the stability of the machine's performance.
3 . Machining center 650 high speed and high rigidity spindle unit combined with servo spindle motor; X/Y/Z adopts high torque servo motor. X/Y/Z adopts Taiwan high-precision high-strength ball screw with Japanese NSK bearing and high precision imported locking. X/Y/Z three-way guide rail adopts hard track design, fixed surface adopts ultra-high frequency quenching process after precision grinding; The sliding surface is made of high strength wear-resisting material with plastic tape. Y direction guide rail for four track design (including auxiliary guide rail) greatly increase the rigidity and strength of the machine tool.
CNC Vertical Mills generally have a single spindle, automatic tool changer, work table and CNC Control.
The spindle on a CNC Machining Center can have a wide range of speeds depending on what material is being cut and the depth of cut that is required. Typical spindle speed ranges from 0 to 10,000 RPM. Higher speeds are used for lighter materials including graphite and aluminum among others. Higher speeds can reach 12,000 RPM up to 50,000 RPM and higher.
requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling
,tapping,boring ,etc.
package according to your requests. Delivery Detail: Shipped in 15-30 working days after payment.
