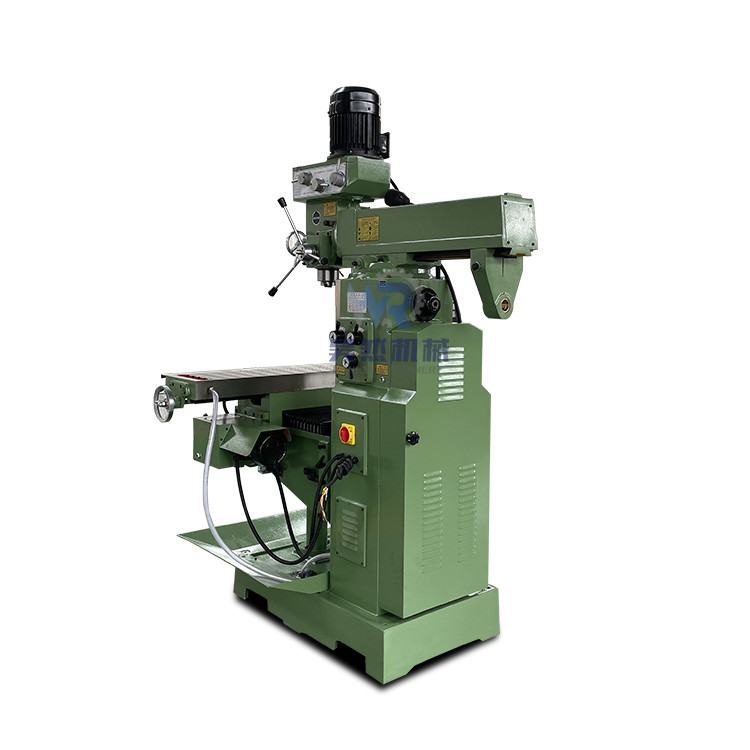

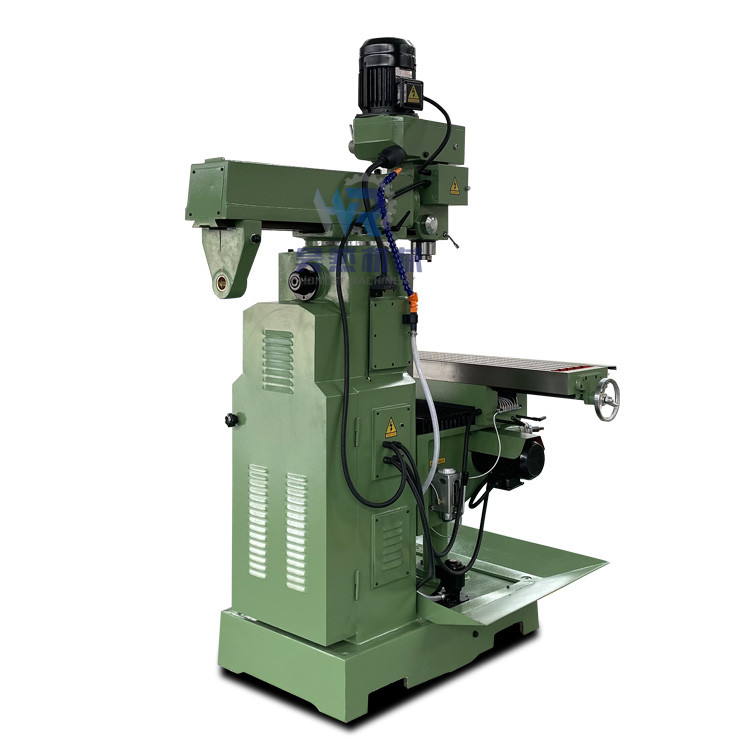

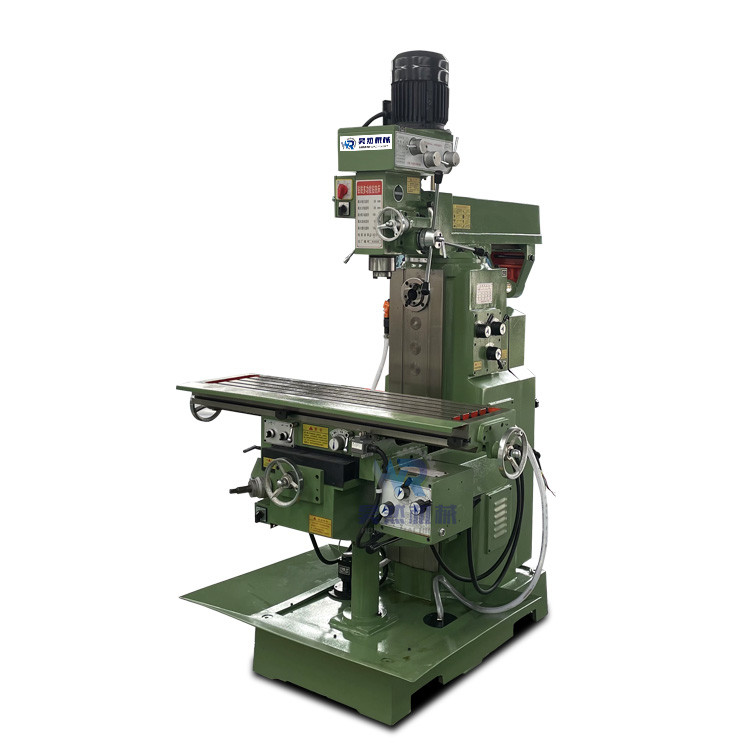

Mini Manual Milling Vertical Drilling Machine 3 Axis ZX6350A Gear Head
| Place of Origin | China |
|---|---|
| Brand Name | HR |
| Certification | CE ISO |
| Model Number | ZX6350A |
| Minimum Order Quantity | 1 set |
| Price | usd3300 |
| Packaging Details | wooden packing |
| Delivery Time | 30~45 work days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 40set/month |
Product Details
| Table Travel (X) (mm) | 600 | Table Travel (Y) (mm) | 260 |
|---|---|---|---|
| Table Travel (Z) (mm) | 360 | Spindle Taper | ISO40 |
| Range Of Spindle Speed(r.p.m) | 400 - 1300 R.p.m | Type | VERTICAL |
| Highlight | 3 Axis vertical drilling machine,Mini vertical drilling machine,mini vertical milling drilling machine |
||
Product Description
Small ZX Series Manual Drilling Milling Machine Vertical ZX6350A Gear Head Milling And Drilling Machine
Product Paramenters
Drilling and milling machine is a set of drilling, milling, boring, grinding as one of the machine tools, used for processing small and medium-sized parts.The drilling and milling machine table can be moved up and down, the spindle is arranged vertically,usually as a table top, and the head can be raised and lowered.
Function:
1. Drilling and milling machine adopts belt drive, low noise, suitable for drilling, reaming, reaming and milling of various
common materials.
2. Drilling and milling machine has 12 speed range, suitable for all kinds of common soft and hard materials processing.
3. Spindle box and worktable can be lifted or rotated around the column to expand the processing range.
1. Drilling and milling machine adopts belt drive, low noise, suitable for drilling, reaming, reaming and milling of various
common materials.
2. Drilling and milling machine has 12 speed range, suitable for all kinds of common soft and hard materials processing.
3. Spindle box and worktable can be lifted or rotated around the column to expand the processing range.
Optional accessories
The main feature: 1.Uses standardized assemblies from the VH milling machine universal use as milling machines and drill press
2.Easily shiftable gear drive ensures power transmission without losses
2.Easily shiftable gear drive ensures power transmission without losses
3.With V-belt spindle drive and gear spindle drive
4.Head swivels into the horizontal level on both sided via crank and toothed gear, easy activation of manual micro-feed for the spindle quill
Packaging＆Shipping
1. Outside package: Standard marine export plywood case.
2. Inner package: Stretchy film and plastic film for humidity. We can
package according to your requests. Delivery Detail: Shipped in 15-30 working days after payment.
package according to your requests. Delivery Detail: Shipped in 15-30 working days after payment.
Company information
Shandong Honest control machine tool Co., Ltd. is a production-oriented enterprise with import and export rights. The company is equipped with many kinds of machine tools and equipment, including nearly 100 sets of large, fine and sophisticated equipment. The enterprise has 100 employees at present, including more than 10 engineers and dozens of workers and technicians. The company has been insisting on staff training for many years, through changing staff concepts, implementing enterprise reform, introducing new management concepts and methods, using modern management level. The company has hundreds of sales outlets, more than one sales branch or office, 30 provinces, cities, autonomous regions. In Europe, South America, Asia, Hong Kong and other countries and regions have long-term cooperation dealers. In recent years, the company insists on changing the mode and adjusting the structure; Implement brand strategy and expand foreign market; Control the manufacturing level of company equipment. Formed by CNC lathe, CNC milling machine, vertical machining center, gantry machining center, CNC metal band sawing machine, drilling and milling machine series, milling machine series, turret milling machine series, more than ten categories, hundreds of varieties of production scale. It has achieved the expected goal of CNC product serialization and characteristic product individuation, and formed its own brand while meeting the personalized needs of users.
Exhibition
FAQ
1. What is your minimum order quantity and warranty?
MOQ is one set, and warranty is one year.
2. Payment Terms
30% by T/T as down payment, balance 70% by T/T before delivery. If others payment terms, we can discuss.
3. How can I choose the most suitable machines?
Please tell us your requirement of the machine, or you can also send us the products drawing, our engineer can help to choose the best model for you.
2. Payment Terms
30% by T/T as down payment, balance 70% by T/T before delivery. If others payment terms, we can discuss.
3. How can I choose the most suitable machines?
Please tell us your requirement of the machine, or you can also send us the products drawing, our engineer can help to choose the best model for you.
