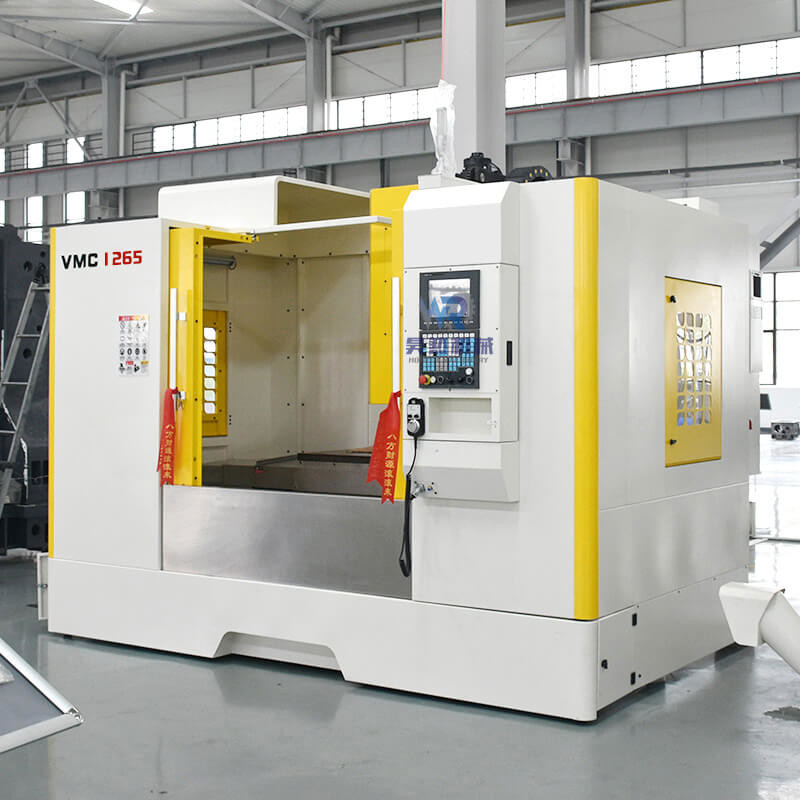

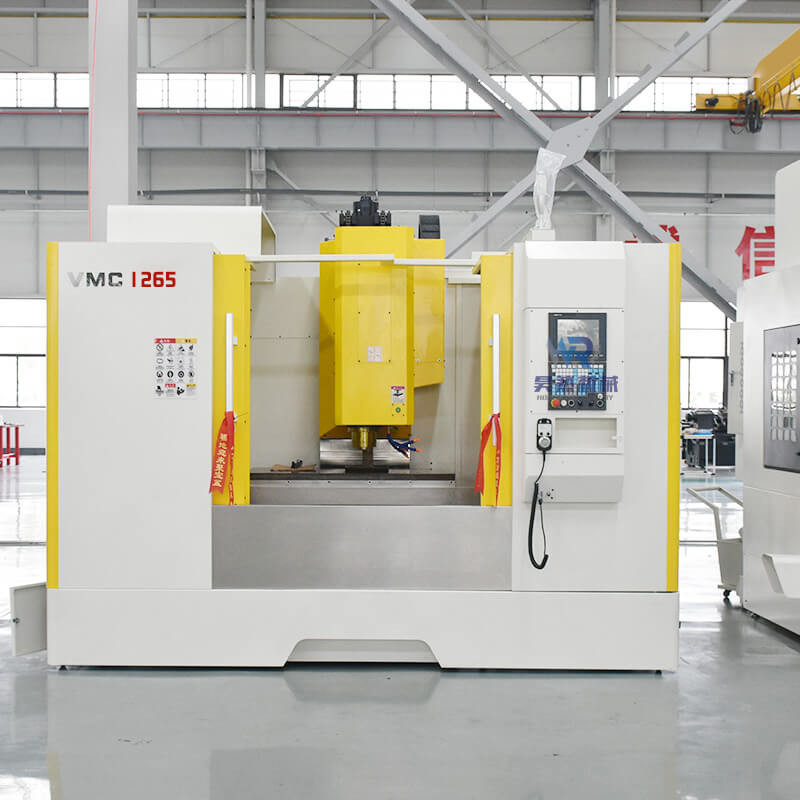

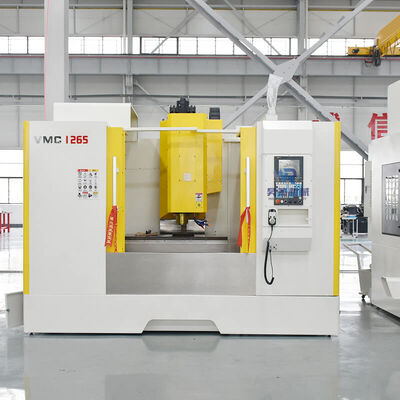

Vmc1265 3axis Drilling CNC Vertical Milling Machine High Productivity 1200x600
| Place of Origin | China |
|---|---|
| Brand Name | HR |
| Certification | CE ISO |
| Model Number | vmc 1265 |
| Minimum Order Quantity | 1 |
| Price | 26700$-32000$ per one set |
| Packaging Details | wooden package |
| Delivery Time | After 15-30 Days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Trade Assurance |
| Supply Ability | 200 per a month |
Product Details
| Name | Vmc1265 3axis High Productivity Cnc Vertical Drilling Milling Machine | Number Of Axes | 3 |
|---|---|---|---|
| Machining Capacity | Medium Duty | Range Of Spindle Speed(r.p.m) | 8000 - 12000 |
| No. Of Spindles | Single | Spindle Taper | BT40 |
| Positioning Accuracy (mm) | ±0.005 | Repeatability (X/Y/Z) (mm) | ±0.002 |
| Highlight | Vmc1265 CNC Vertical Milling Machine,1200x600 CNC Vertical Milling Machine,3axis vertical cnc drilling machine |
||
Product Description
Vmc1265 3axis Drilling CNC Vertical Milling Machine High Productivity
Product Paramenters
Features:
1. The machine tool uses the traditional O-type layout, with a compact, neat appearance and less occupied area.
2. Equipped with a complete security protection device and designs that integrate the electric, mechanical, and pneumatic technology, the machine boasts advanced layout, environmentally friendly design, and easy operation and maintenance.
3. X, Y, Z three-axis have large travel, especially suitable for the special needs of the mold making industry to increase stroke.
4. Spindle with a big motor boasts high spindle speed, great power, suitable for high metal removal rate and efficient processing needs.
5. Spindles with the float tool stroke avoid the tool stroke force to pass on the spindle bearings, and effectively improve the life of the spindle.
1. The machine tool uses the traditional O-type layout, with a compact, neat appearance and less occupied area.
2. Equipped with a complete security protection device and designs that integrate the electric, mechanical, and pneumatic technology, the machine boasts advanced layout, environmentally friendly design, and easy operation and maintenance.
3. X, Y, Z three-axis have large travel, especially suitable for the special needs of the mold making industry to increase stroke.
4. Spindle with a big motor boasts high spindle speed, great power, suitable for high metal removal rate and efficient processing needs.
5. Spindles with the float tool stroke avoid the tool stroke force to pass on the spindle bearings, and effectively improve the life of the spindle.
Product Advantages
The advantages of Machining center 1265
1. Good rigidity: guide of a widened span for the machine body with high rigidity and great ability of shock absorption.
2. New structure: Spindle with floating tool stroke and ball screw pre-tensioned to ensure long service life and steady accuracy.
3. Large travel: larger travels in all three directions than those of the same specifications in the market.
4. Optimal configuration: imported major outsourcing parts and components including the CNC system, spindle unit, tools magazine,ball screw, bearings, etc.
2. New structure: Spindle with floating tool stroke and ball screw pre-tensioned to ensure long service life and steady accuracy.
3. Large travel: larger travels in all three directions than those of the same specifications in the market.
4. Optimal configuration: imported major outsourcing parts and components including the CNC system, spindle unit, tools magazine,ball screw, bearings, etc.
Optional accessories
The machine can be equipped with many accessories to carry out different works. Mostly, the machine can be equipped with the 4th axis rotary table or dividing head, we can supply China brand and Taiwan brand, it can be equipped with tool setting probe. You can use tool setting probe to measure tool length,diameter etc. And you can also choose screw type chip conveyor or chain type conveyor.
Machine detection
