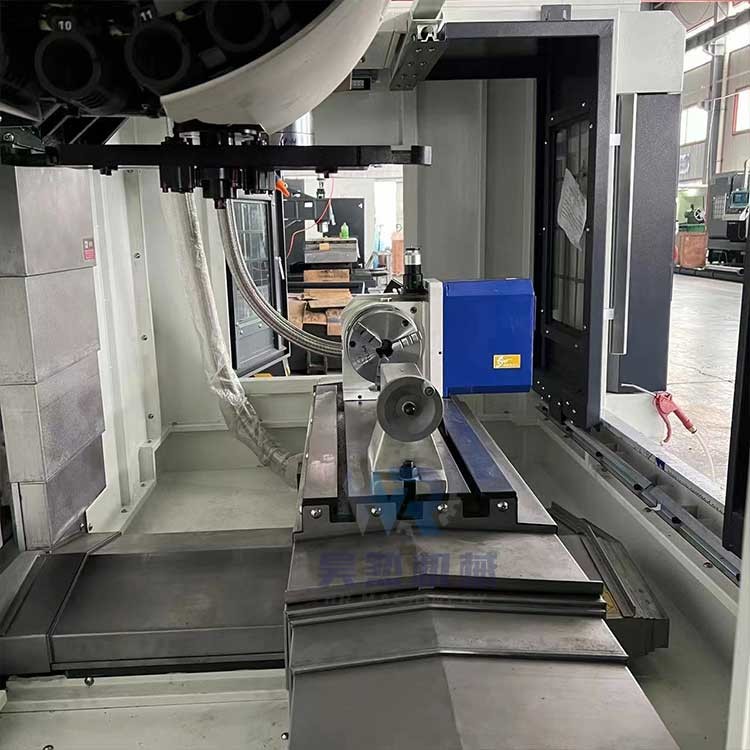

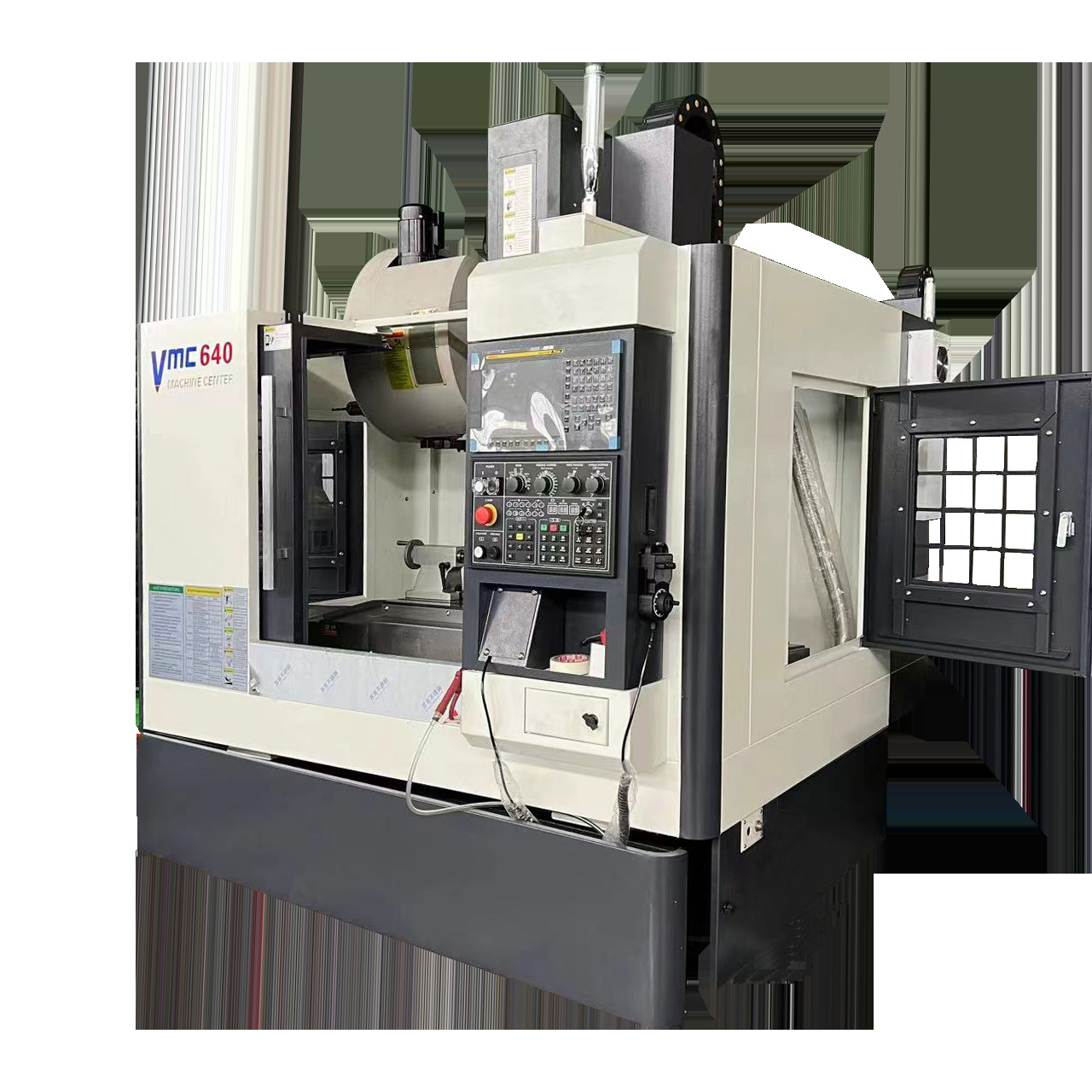

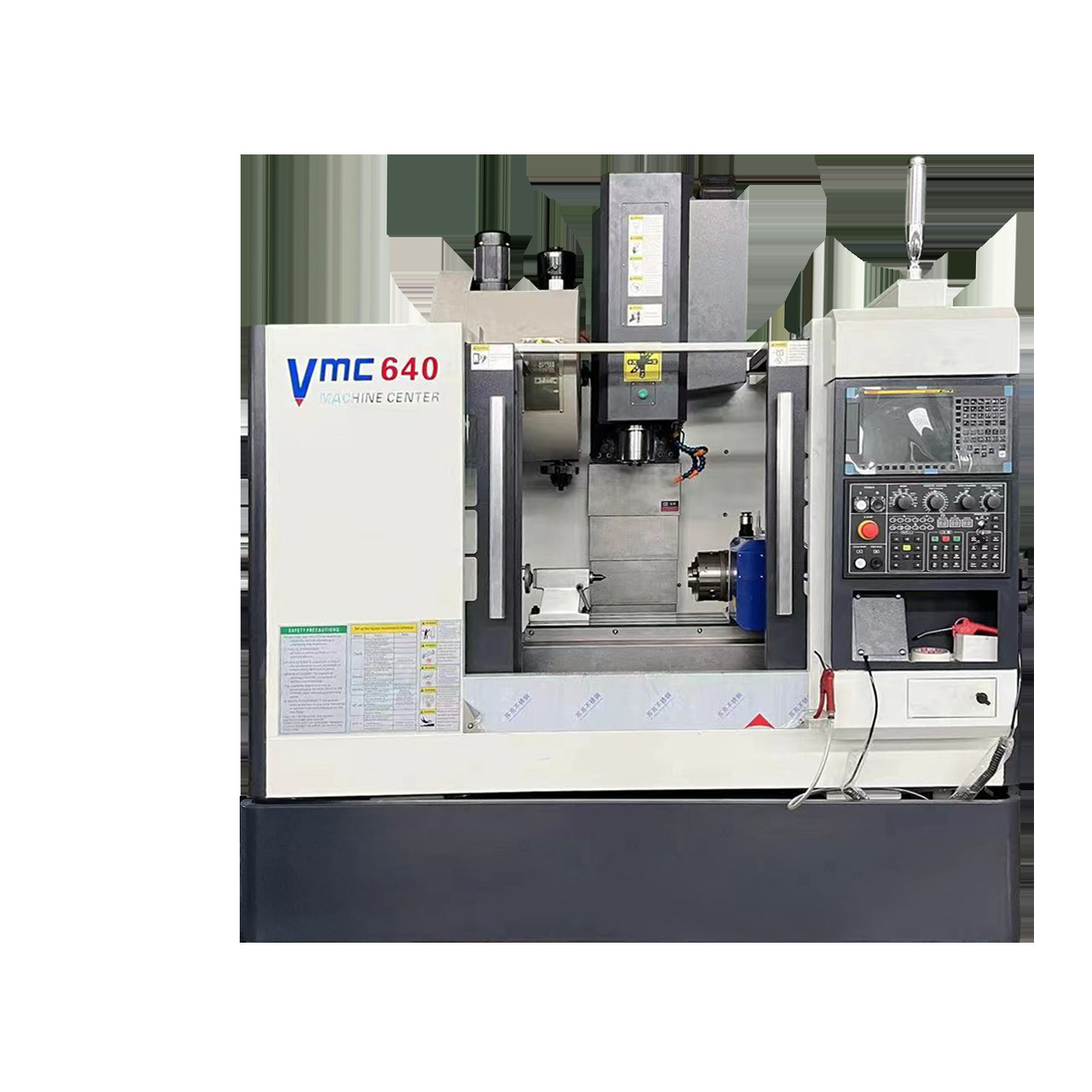

Small VMC640 Four Axis CNC Vertical Machining Center Machine

Brand Name: HR
Model Number: vmc640
Place of Origin: china
Certification: ceiso
Minimum Order Quantity: 1set
Price: usd 18000-40000
Supply Ability: 40set/month
Tags

8000rpm vmc 850 milling machine

Honest vmc 850 milling machine

Honest 850 small vertical machining center

Product Details

Warranty: 2 Years Weight: 3100KG
Condition: New Type: Vertical
Voltage: 380V 50HZ Power(w): 5.5KW
Spindle: Taiwan 10000rpm Spindle Spindle Taper: BT40
Highlight

CNC Small Vertical Machining Center

,

Four Axis CNC Vertical Machining Center

,

VMC640 CNC Vertical Machining Center

Product Description

CNC Small Vertical Machining Center VMC640 Four Axis Machining Center Machine
Product Description



cnc vertical milling machine 1. Castings: HT300 resin sand wear-resistant castings have high density and good wear resistance! The saddle adopts double-layer casting structure, which has strong rigid cutting ability. 2. Spindle: Taiwan high-speed spindle 8000rpm, simple and compact structure, high efficiency, low noise, low vibration and high precision. 3. Automatic tool change: Taiwan arm type (24 knives) tool magazine. Advantages: small wear, long life, easy adjustment, low failure rate. 4. Inspection: All equipment in the factory has undergone inspection steps such as laser interference, copiers, and actual measurement to ensure the production quality of each product Small VMC640 Four Axis CNC Vertical Machining Center Machine 0
Model
Vmc640
VMC650
VMC840
VMC850
VMC855
Table size (mm)
800*300
1000*400
1000*400
1000*500
1000*550
Max. allowable load (Kg)
400
400
300
500
500
X-axis stroke (mm)
600
650
800
800
800
Y-axis travel (mm)
400
400
400
500
550
Z-axis travel (mm)
450
550
550
500
550
T-slot
3-18-120
3-18-120
3-18-140
5-18-108
5-18-90
spindle center to Z-axis guide surface (mm)
460
485
445
552
590
spindle end face to work table (mm)
120-670 mm
100-650
100-650
110-610
120-670
Spindle taper hole
BT40-120
BT40-120
BT40-120
BT40-140
BT40-150
Spindle speed (r/min)
8000
8000
8000
8000
8000
X/Y/Z rapid movement (m/min)
24/24/18mm
48/48/48
30/30/18
48/48/48
48/48/48
Machine Weight (Kg)
3000
3800
3200
5300
5500
Model
VMC966
VMC1050
VMC1160
VMC1165
Table size (mm)
1100*550
1200*420
1200*600
1200*600
Max. allowable load (Kg)
600
500
800
800
X-axis stroke (mm)
900
1000
1100
1100
Y-axis travel (mm)
600
500
600
650
Z-axis travel (mm)
600
550
600
650
T-slot
5-18-100
5-18-100
5-18*100
5-18-100
spindle center to Z-axis guide surface (mm)
663
575
650
710
spindle end face to work table (mm)
100-700
100-650
120-720
120-720
Spindle taper hole
BT40-150
BT40-150
BT40-150
BT40-150
Spindle speed (r/min)
8000
8000
8000
8000
X/Y/Z rapid movement (m/min)
48/48/48
18/18/18
36/36/24
36/36/36
Machine Weight (Kg)
5600
5500
6500
6800

Model
VMC1265
VMC1270
VMC1370
VMC1580
Vmc1690
Table size (mm)
1200*600
1200*700
1400*700
1700*800
1600*800
Max. allowable load (Kg)
800
800
800
1500
1500
X-axis stroke (mm)
1200
1200
1300
1500
1600
Y-axis travel (mm)
650
700
700
800
900
Z-axis travel (mm)
650
700
750
700
700
T-slot
5-18-100
5-18-130
5-18-130
5-22-135
7-22-110
spindle center to Z-axis guide surface (mm)
710
710
713
855
936
spindle end face to work table (mm)
120-770
120-770
120-870
160-860
150-850
Spindle taper hole
BT40-150
BT40-150
BT40-150
BT50-155
BT50-190
Spindle speed (r/min)
8000
8000
8000
6000
10000
X/Y/Z rapid movement (m/min)
36/36/36
36/36/36
24/24/24
24/24/18
15/15/12
Machine Weight (Kg)
7000
7000
8000
12000
12000

Detailed description
Small VMC640 Four Axis CNC Vertical Machining Center Machine 1
High strength high quality HT300 cast iron,
Small VMC640 Four Axis CNC Vertical Machining Center Machine 2
Taiwan OKADA arm 24 tool magazine . . tool change time only 5-6 seconds.
Small VMC640 Four Axis CNC Vertical Machining Center Machine 3
Taiwan spindle, speed 8000 rpm, optional 10000 rpm, 12000 rpm
Small VMC640 Four Axis CNC Vertical Machining Center Machine 4
CNC System Standard: FANUC cnc system Optional: Siemens , GSK ,Syntec Etc.
Packing & Delivery
Small VMC640 Four Axis CNC Vertical Machining Center Machine 5
1. Outside package: Standard marine export plywood case.
2. Inner package: Stretchy film and plastic film for humidity.
We can package according to your requests. Delivery Detail: Shipped in 30 working days after payment.
