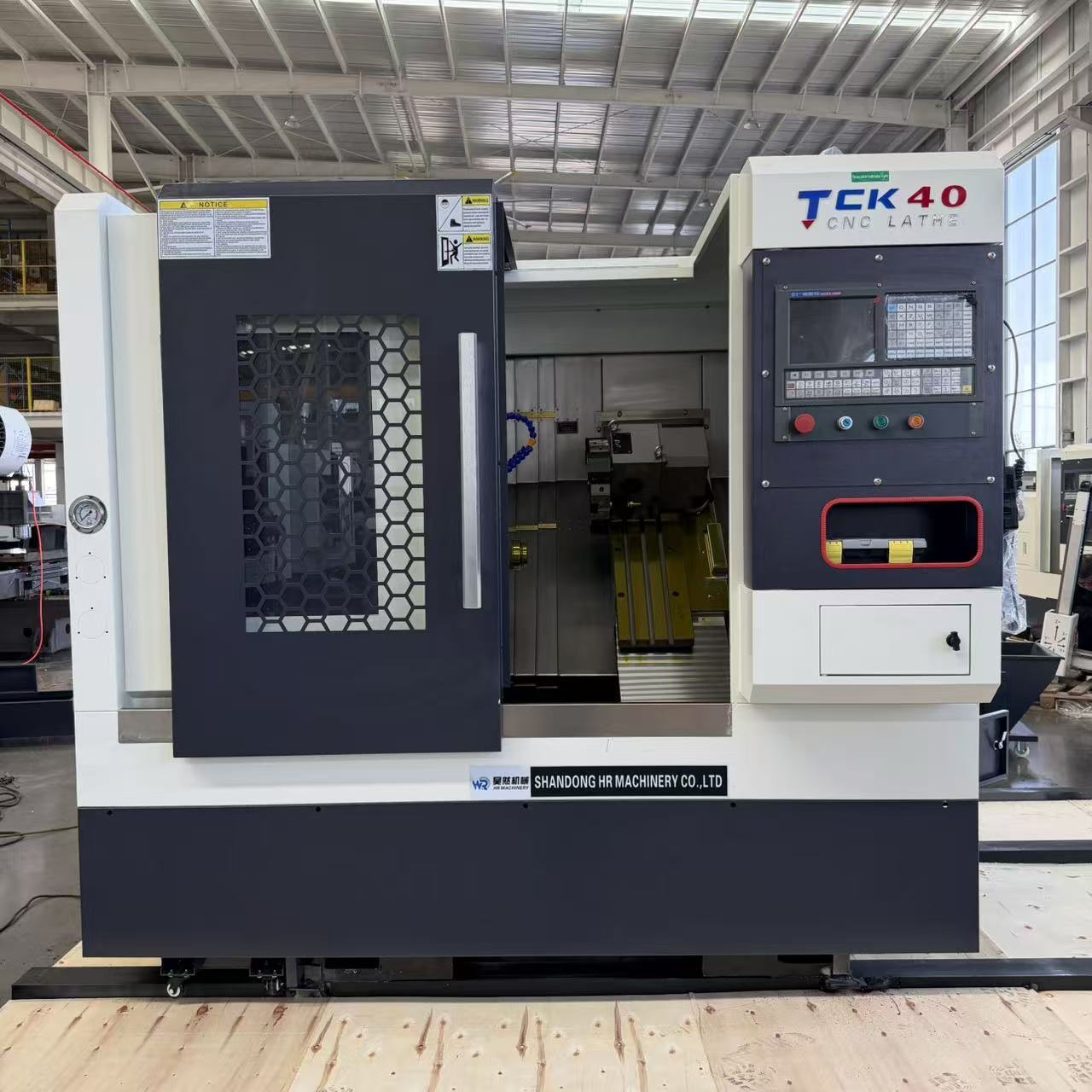

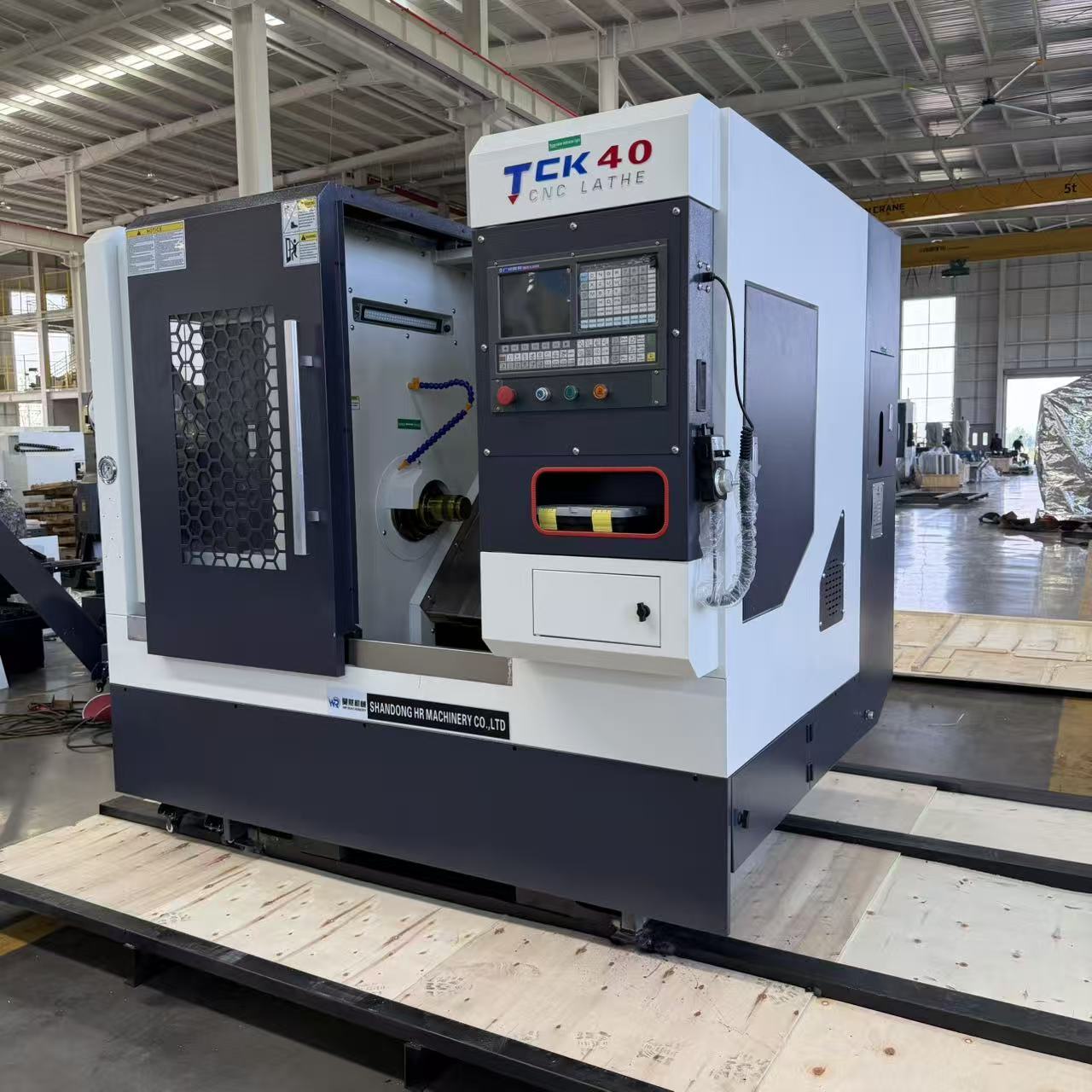

Slant Bed CNC Lathe Tck40 CNC Lathe Machine CNC Lathe With Bar Feeder
| Place of Origin | china |
|---|---|
| Brand Name | HR machiney |
| Certification | CE |
| Model Number | tck40 |
| Minimum Order Quantity | 1 |
| Price | $11900-$28000 |
| Packaging Details | standard export package(plywood case) |
| Delivery Time | 20-30days |
| Payment Terms | T/T |
| Supply Ability | 50sets |
Product Details
| Max. Swing Diameter Over Bed（mm） | Φ450 | Max. Cutting Diameter（mm） | Φ120 |
|---|---|---|---|
| Max.cutting Length（mm） | 335 | X/Z Axis Travel（mm） | 900/335 |
| Spindle Speed (rpm) | 35-3000 | Max. Spindle Torque （N.m） | 35 |
Product Description
Slant Bed CNC Lathe Tck40 CNC Lathe Machine CNC Lathe With Bar Feeder
Product descriptions from the supplier
Report abuse
Highlights at a glance
slant bed CNC lathe is a high-precision and efficient fully automatic lathe. Equipped with multiple workstation turrets or power turrets, the lathe has a wide range of machining performance, suitable for turning disc and shaft parts. It can perform precision machining of complex processes such as straight lines, arcs, metric and inch threads, multi head threads, multi prisms, multi end faces, and multi angles, and has played a good economic effect in large-scale production of complex parts.
1. The linear rolling guide rail of the slant bed CNC lathe meets high-speed requirements, reduces friction resistance and temperature rise deformation, improves machining accuracy, and ensures long-term stability of turning machining accuracy. 2. The slant bed CNC lathe adopts domestic or imported high rigidity horizontal turret tool holders, with high positioning accuracy and small re cutting deformation. 3. The slant bed CNC lathe adopts an overall inclined bed structure, and continuous processing can still better maintain the stability of machine tool accuracy.
Bed: One-piece resin sand casting, 45 inclined layout, high rigidity and good vibration damping; chips slide off by their own weight, ensuring smooth chip removal and preventing chip accumulation. Guide Rails and Lead Screws: X/Z axes are equipped with roller linear guides and C3-grade precision ball screws as standard. The screw ends are pre-tensioned and locked to eliminate thermal deformation gaps; X/Z rapid traverse speed is 24m/min, providing high positioning accuracy. Spindle Unit (A2-5 Spindle Head): Spindle bore 48~52mm, standard 6-inch hydraulic chuck, maximum bar stock 40mm; Spindle motor 5.5kW, spindle speed 35~3000rpm.
Slant Bed CNC Lathe Tck40 CNC Lathe Machine CNC Lathe With Bar Feeder
Bed: One-piece resin sand casting, 45 inclined layout, high rigidity and good vibration damping; chips slide off by their own weight, ensuring smooth chip removal and preventing chip accumulation.
Spindle Unit (A2-5 Spindle Head):
Spindle bore 48~52mm, standard 6-inch hydraulic chuck, maximum bar stock 40mm;
Spindle motor 5.5kW, spindle speed 35~3000rpm.
About this supplier
Shandong HR Machinery Co., Ltd. is a professional manufacturer and exporter specializing in CNC lathes, CNC milling machines, vertical machining centers, turret milling machines, manual lathes, drilling and milling machines, grinding machines, as well as fast wire cutting machines. Our company holds a full range of authoritative certifications, including CE, ISO9001 quality management system certification and SGS certification, which fully demonstrates our compliance with international quality standards and product safety requirements. We boast a 18,000-square-meter modern production workshop, equipped with multiple advanced production lines and staffed by a large team of skilled production workers and experienced R&D engineers. To ensure customer satisfaction, we also provide reliable on-site after-sales service overseas, delivered directly by our professional in-house engineers.
FAQs
How can I choose the most suitable machines ?
Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model ,You can also send us the products drawing ,we will choose the most suitable machines for you .
What products do you offer?
We offer CNC lathe, CNC machining center and 5-axis CNC machines for metal parts, aluminum parts and precision components machining.
What payment methods are supported?
Wire transfer, credit card, letter of credit, etc.
Do you have after-sales service?
Free online after-sales service, with on-site engineer service also available.
Which delivery methods are supported?
EXW FOB CIF CFR DDP DDU
What are your main advantages?
Our core strengths lie in stable quality, industry-tailored solutions, rich export experience and professional technical support.
Which countries do you export to?
We export CNC machines to Southeast Asia, Europe and South America, including Vietnam, Thailand, Germany, Mexico and Brazil.
