VMC850 CNC Milling Machine Tools CNC Vertical Machining Center Heavy Duty Cnc Milling Machine
| Place of Origin | china |
|---|---|
| Brand Name | HR |
| Certification | ceiso |
| Model Number | vmc850 |
| Minimum Order Quantity | 1set |
| Price | usd 19000-40000 |
| Packaging Details | standard export package(plywood case) |
| Delivery Time | 30days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 40set/month |
Product Details
| Warranty | 1 Year | Weight | 5500kg |
|---|---|---|---|
| Condition | New | Type | Vertical |
| Voltage | 380V 50HZ | Power(w) | 7.5/11 KW |
| Spindle Speed | 80000 Rpm | ||
| Highlight | VMC850 CNC vertical machining center,heavy duty CNC milling machine,CNC milling machine tools |
||
Product Description

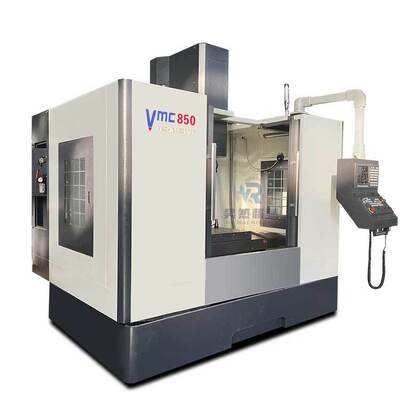

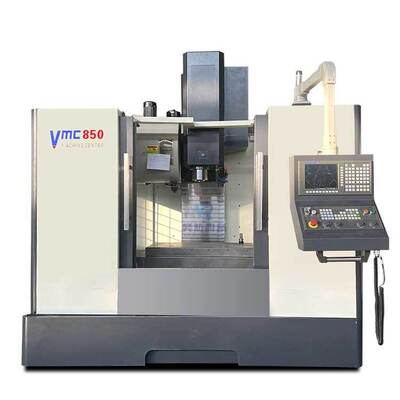

VMC850 CNC Milling Machine Tools CNC Vertical machining Center heavy Duty Cnc Milling Machine
Product Description
CNC milling machineThe guide rail has large load, wide span, high precision, compact and reasonable structure and overall dimensions. The main shaft is driven by servo motor through the same step belt. It can realize the one-time clamping of various complex parts such as discs, plates, shells, cams and molds, and can complete the processing of various processes such as drilling, milling, boring, expanding, reaming and rigid tapping. CNC milling machine CNC vertical machining cente suitable for the production of multi variety, medium and small batch products, and can meet the processing of complex and high-precision parts.CNC vertical machining center
Detailed description
MACHINE CONSTRUCT High strength high quality HT300 cast iron,
Taiwan spindle-10000 rpm
1.Taiwan OKADA arm 24 tool magazine .
2. tool change time only 5-6 seconds.
Controller system The standard is GSK controller system, the optional is fanuc Siemen,or Syntec controller system.
SCREW 1 Taiwan brand lead screw, 2. lead screw bearing using SKF or NACHI bearing,
SCHNEIDER ELECTRICAL COMPONENTS with Schneider safety electrical components
Packing & Delivery
1. Outside package: Standard marine export plywood case. 2. Inner package: Stretchy film and plastic film for humidity. We can package according to your requests. Delivery Detail: Shipped in 30 working days after payment.
