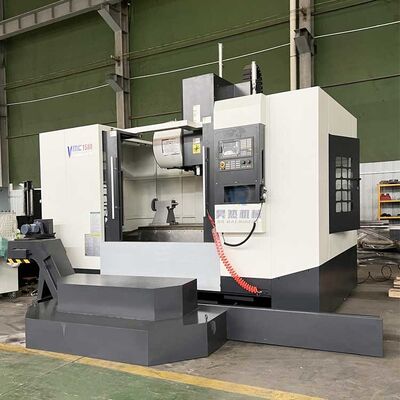

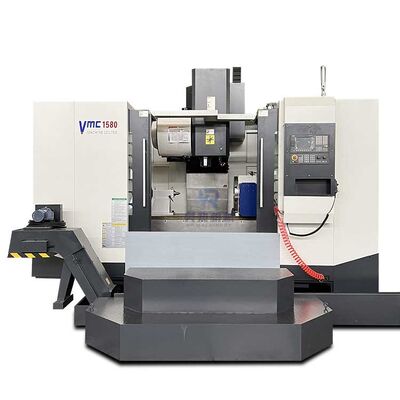

VMC1580 CNC Vertical Machining Centers 5-axis 4-axis 3-axis Milling Machines Metalworking
| Place of Origin | SHANDONG |
|---|---|
| Brand Name | HR |
| Certification | CE |
| Model Number | VMC1580 |
| Minimum Order Quantity | 1 SET |
| Price | 50000 USD /SET |
| Packaging Details | Standard configuration packaging |
| Delivery Time | 30 work days |
| Payment Terms | L/C, T/T, D/P |
| Supply Ability | 100SETS /MONTH |
Product Details
| Speed | 6000rpm | Color | Custom-made |
|---|---|---|---|
| Cutting Feed | 1-12000mm/min | Packing | Export Standard |
| Number Of Axes | 3 4 5 | Positional Accuracy | ±0.01mm |
| Core Components | Motor | Guide Way Type | Linear Guide Way Type |
| Weight | 12000kg | Accuracy | ±0.005mm |
| Controlling Mode | Fanuc Mitsubishi Siemens Gsk System | ||
| Highlight | Metalworking CNC Vertical Machining Centers |
||
Product Description
Product Description
VMC1580 3/4/5 axis vertical machine center cnc milling machine with price is composed of mechanical equipment and numerical control system. VMC1580 vertical turret metal cnc tool large milling machine is an automated machine that is suitable for efficient machining of complex parts.
◆The main large parts of the machine tool: the base, saddle, worktable, column, and headstock are all made of high-quality resin sand molding, high-strength high-quality cast iron, with a complete heat treatment process to eliminate residual stress, and sufficient reinforcement plates are arranged to ensure The whole machine has sufficient strength, rigidity and high stability
◆The XY axis adopts roller linear guide, which has strong rigidity and good dynamic accuracy; ◆The three-axis transmission adopts Taiwan-made ground double-nut ball screw, which is compact in structure, stable in movement and high in precision. The screw support adopts the original imported screw support bearing made in Japan, and the two ends are pre-stretched to eliminate the loss of precision caused by thermal elongation. Form a stable and high-rigidity mechanical transmission system;
◆The base adopts a casting large water tray structure, which has good waterproof performance;
◆The high-rigidity Taiwan-made BT50 spindle is lubricated with grease, which can make the spindle bearings get constant and reliable lubrication, which is economical and environmentally friendly and realizes long-term maintenance-free;
Product Paramenters
Detailed Images
-
Auto tool changer
Optional configuration: 3 axis ,
4 axis ,5 axis :
GSK cnc system
-
NSK ball screw and bearing
Electric cabinet
Heat extractor
