3 Axis CNC Vertical Machining Center VMC 420 Milling Machining Center
Brand Name:
HR
Model Number:
vmc420
Place of Origin:
china
Certification:
ceiso
Minimum Order Quantity:
1set
Price:
usd 19000-40000
Supply Ability:
40set/month
Product Details
| Warranty: | 2 Years | Weight: | 8000kg |
|---|---|---|---|
| Condition: | New | Type: | Vertical |
| Voltage: | 380V 50HZ | Power(w): | 7.5/11 KW |
| Spindle: | Taiwan 8000rpm Spindle | Spindle Taper: | BT40 |
| Highlight |
11 kW VMC Vertical Machining Center,Spaceflight CNC Vertical Machining Center,VMC 420 Milling Machining Center |
||
Product Description

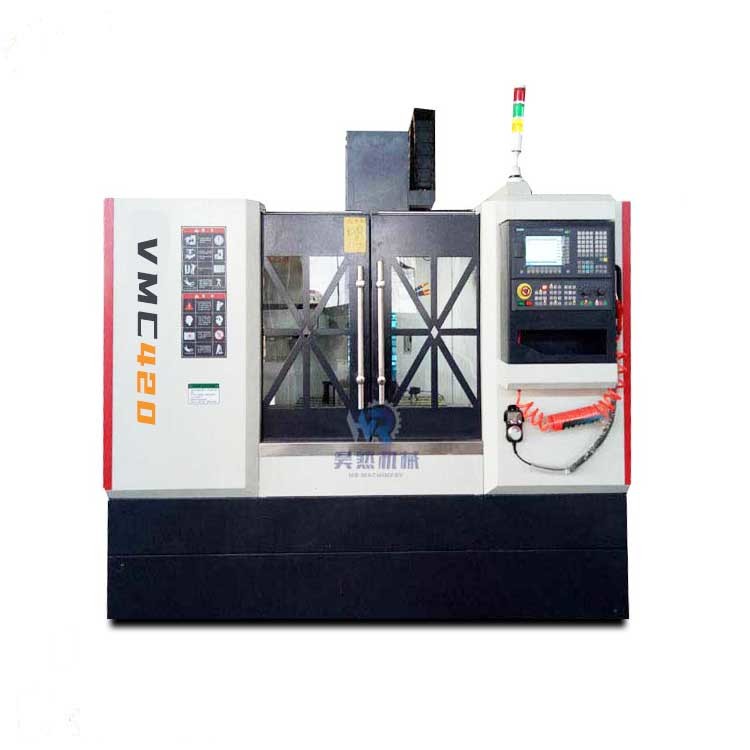

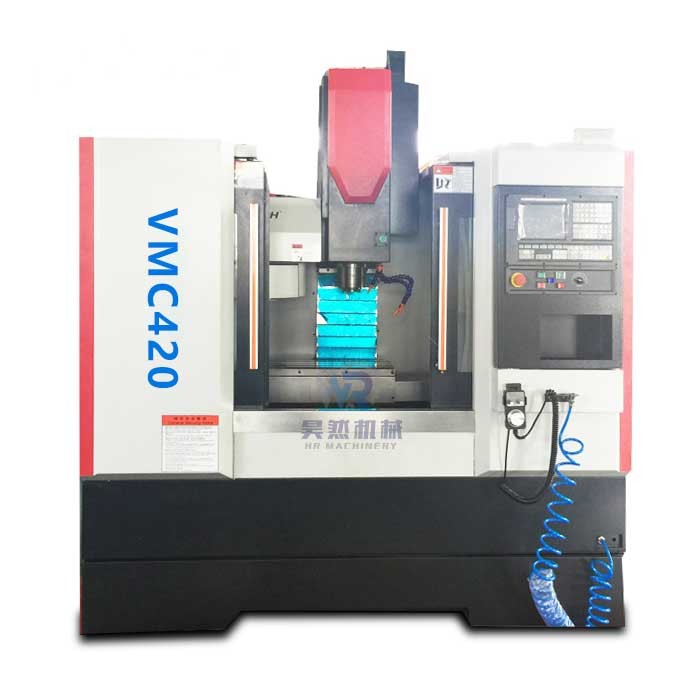

3 Axis Machine VMC 420 CNC Vertical Milling Machining Center
Product Description
CNC vertical machining cente is a semi closed-loop vertical machining center with X, y and Z three-axis servo direct control. The three axes are divided into hard rail and (optional: rolling linear guide). CNC milling machineThe guide rail has large load, wide span, high precision, compact and reasonable structure and overall dimensions. The main shaft is driven by servo motor through the same step belt. It can realize the one-time clamping of various complex parts such as discs, plates, shells, cams and molds, and can complete the processing of various processes such as drilling, milling, boring, expanding, reaming and rigid tapping. CNC milling machine CNC vertical machining cente suitable for the production of multi variety, medium and small batch products, and can meet the processing of complex and high-precision parts.CNC vertical machining center
| Item | VMC420/VMC7126 | |
| Table size (mm) | 800×260 | |
| T-Slot Q-W(mm)–Distance(mm) | 5-16-50 | |
| Max,load (kg) | 400 | |
| Travel of X axis(mm) | 450 | |
| Travel of Y axis(mm) | 320 | |
| Travel of Z axis(mm) | 420 | |
| Distance from spindle nose to table (mm) | 70-480 | |
| Distance from center of spindle to Column guideway (mm) | 360 | |
| Taper hole of spindle | BT40 | |
| Max speed of spindle (Rpm) | 8000 | |
| Power of main power(kW) | 3.7/5.5 | |
| X,Y,Z Rapid feed rate (m/min.) | 16/16/16 | |
| fast cutting speed (mm/min) | 10000 | |
| Accuracy | Positional accuracy (mm) | ±0.005 |
| Repeat positional accuracy (mm) | ±0.003 | |
|
Tools
|
Number | 12/16 tools head type tool changer |
| Time of tool changing(Sec) | 7 | |
| Max. tool length | 300mm | |
| Max. Tool diameter | Φ80(adjacent tool)/φ150(not adjacent tool) | |
| Max.tool weight | 8kg | |
| Operation pressure Mpa | 0.6 | |
| Weight (kg) | 2400 | |
| Dimension | 2100×1760×1960mm | |
Detailed description
Taiwan spindle BT40/BT50 Taiwan 24T arm type auto tool changer Taiwan P-grade high precision linear guide ways and Taiwan C3 grade precision ball screws. FANUC, SIEMENS,, MITSUBISHI, GSK cnc controllers are optional. Taiwan 4th or 5th axes rotary table is optional. Tools and workpiece measuring instrument are optional.
Application
It is widely used to produce the auto spare parts, medical treatment instrument and any kind of injection mould, blowing mould, die-casting mould, car LED mould, toy mould and precise mould and o on. Large steel molds are the first products requiring large cutting amount and fast processing speed. It is applicable to the processing of plastic mold industry, automobile tire industry, hardware industry, toy industry, handicrafts, fine stamping die, bronzing die, high-frequency die, embossing wheel die, die-casting die and graphite electrode. It is the best choice for mold manufacturing industry and parts processing.
Packing & Delivery
1. Outside package: Standard marine export plywood case. 2. Inner package: Stretchy film and plastic film for humidity. We can package according to your requests. Delivery Detail: Shipped in 30 working days after payment.
Certifications
All products are available upon request, with or without trademarks. If you need OEM service with your own brand or product, please let us know. If you have any other specific requirements, please feel free to contact us. Our factory has obtained the import and export license issued by the Ministry of foreign trade, and passed the iso9001 quality management system certification and CE certification. In the quality layer by layer, we will wholeheartedly serve for the majority of customers.
Company Profile
Shandong HR machinery Co., Ltd. is a production-oriented enterprise with import and export rights. The company is equipped with many kinds of machine tools and equipment, including nearly 100 sets of large, fine and sophisticated equipment. The enterprise has 100 employees at present, including more than 10 engineers and dozens of workers and technicians. The company has been insisting on staff training for many years, through changing staff concepts, implementing enterprise reform, introducing new management concepts and methods, using modern management level. The company has hundreds of sales outlets, more than one sales branch or office, 30 provinces, cities, autonomous regions. In Europe, South America, Asia, Hong Kong and other countries and regions have long-term cooperation dealers. In recent years, the company insists on changing the mode and adjusting the structure; Implement brand strategy and expand foreign market; Control the manufacturing level of company equipment. Formed by CNC lathe, CNC milling machine, vertical machining center, gantry machining center, CNC metal band sawing machine, drilling and milling machine series, milling machine series, turret milling machine series, more than ten categories, hundreds of varieties of production scale. It has achieved the expected goal of CNC product serialization and characteristic product individuation, and formed its own brand while meeting the personalized needs of users.
Customer visiting
We welcome customers to visit the factory, we will let you buy, we will have customers to visit the factory and customers online purchase feedback, through feedback learning experience, continuous progress, better service for you. Shandong Honest is willing to unremitting pursuit and efforts, hand in hand with merchants to create a brilliant future
FAQ
1.What CNC system do you use? A:FANUC, SIEMENS, MISTSUBISHI, GSK etc. It depends on your choice. 2. Payment Terms A:30% by T/T as down payment, balance 70% by T/T before delivery. If others payment terms, we can discuss. 3. What is your trade terms? A : FOB, CFR and CIF all acceptable. 4.How can I choose the most suitable machines ? A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you . 5.Where is our factory located? How can I visit there? A : Our factory is located in Ji nan City ,Shandong . You are warmly welcomed to visit us. 6.What's the MOQ? A: 1 set . 7.How long is the machine warranty? A:warranty is 3 year.If you need to replace accessories or parts after the warranty period, we will provide them to you at the cost price
Product Highlights
3 Axis Machine VMC 420 CNC Vertical Milling Machining Center Product Description CNC vertical machining cente is a semi closed-loop vertical machining center with X, y and Z three-axis servo direct control. The three axes are divided into hard rail and (optional: rolling linear guide). CNC milling ...
