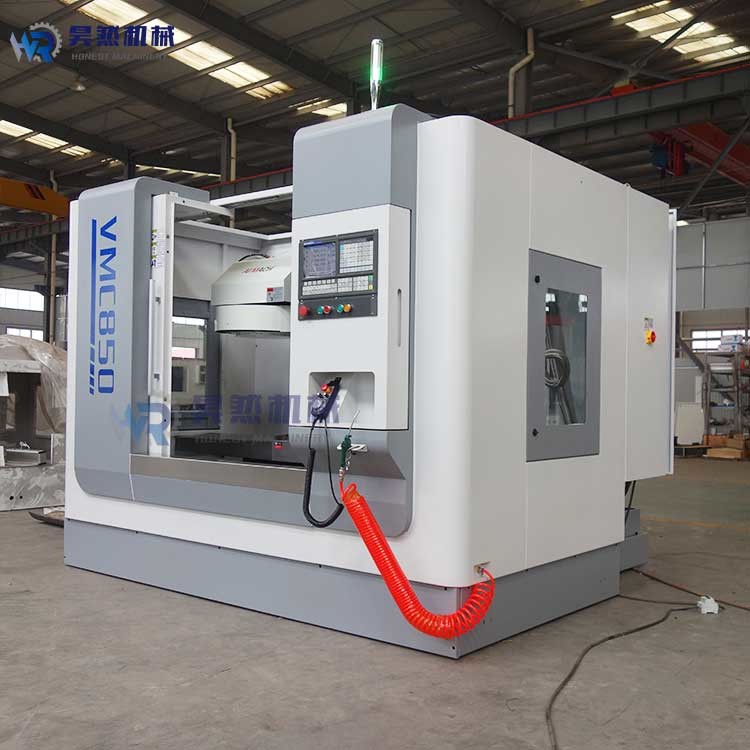

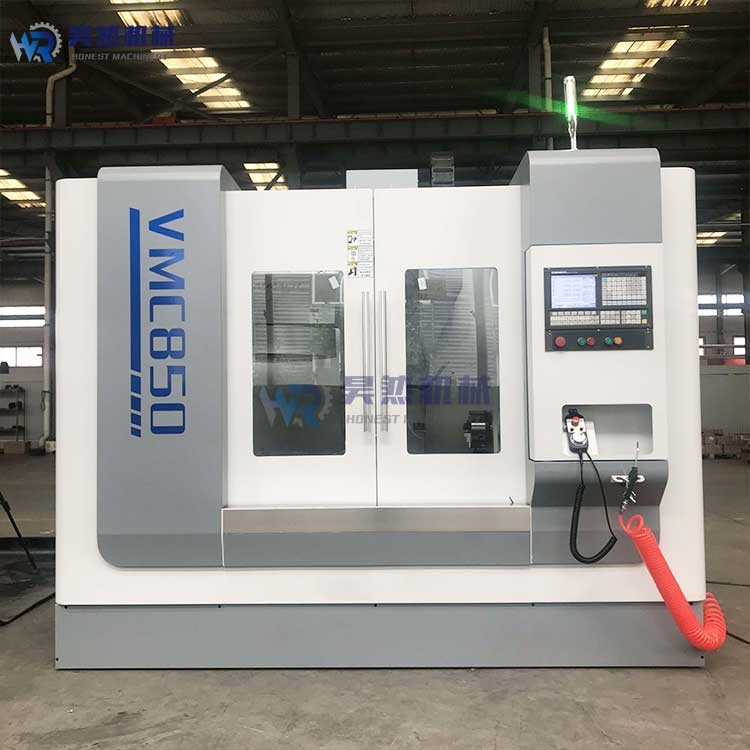

GSK Control System CNC Vertical Machine Center 4 Axis VMC850
Brand Name:
HR
Model Number:
vmc850
Place of Origin:
china
Certification:
ce iso
Minimum Order Quantity:
1set
Price:
usd 19000-40000
Supply Ability:
40set/month
Product Details
| Warranty: | 3 Years | Weight: | 4800kg |
|---|---|---|---|
| Dimension(l*w*h): | 3200*2800*3200mm | Condition: | New |
| Type: | Vertical | Voltage: | 380V 50HZ |
| Power(w): | 7.5/11 KW | Spindle Taper: | BT40 |
| Highlight |
VMC850 CNC Vertical Milling Machining Center,CNC Vertical Milling Center 4 Axis,GSK Control System Vertical Machine Center |
||
Product Description
Product Description
CNC vertical machining cente is a semi closed-loop vertical machining center with X, y and Z three-axis servo direct control. The three axes are divided into hard rail and (optional: rolling linear guide). CNC milling machineThe guide rail has large load, wide span, high precision, compact and reasonable structure and overall dimensions. The main shaft is driven by servo motor through the same step belt. It can realize the one-time clamping of various complex parts such as discs, plates, shells, cams and molds, and can complete the processing of various processes such as drilling, milling, boring, expanding, reaming and rigid tapping. CNC milling machine CNC vertical machining cente suitable for the production of multi variety, medium and small batch products, and can meet the processing of complex and high-precision parts.CNC vertical machining center
Detailed description
Taiwan spindle BT40/BT50
Taiwan 24T arm type auto tool changer
Taiwan P-grade high precision linear guide ways and Taiwan C3 grade precision ball screws.
FANUC, SIEMENS,, MITSUBISHI, GSK cnc controllers are optional.
Taiwan 4th or 5th axes rotary table is optional.
Tools and workpiece measuring instrument are optional.
Taiwan 24T arm type auto tool changer
Taiwan P-grade high precision linear guide ways and Taiwan C3 grade precision ball screws.
FANUC, SIEMENS,, MITSUBISHI, GSK cnc controllers are optional.
Taiwan 4th or 5th axes rotary table is optional.
Tools and workpiece measuring instrument are optional.
Application
It is widely used to produce the auto spare parts, medical treatment instrument and any kind of injection mould, blowing mould, die-casting mould, car LED mould, toy mould and precise mould and o on.Large steel molds are the first products requiring large cutting amount and fast processing speed. It is applicable to the processing of plastic mold industry, automobile tire industry, hardware industry, toy industry, handicrafts, fine stamping die, bronzing die, high-frequency die, embossing wheel die, die-casting die and graphite electrode. It is the best choice for mold manufacturing industry and parts processing.
Packing & Delivery
1.Water-proof and damp proof, water resistant film wraped all the machine.
2.Non-fumigation packaging, we use seaworthy plywood.
3. Steel base plate, it is stronger 3-5 times than normal plywood base plate.
Product Highlights
Product Description CNC vertical machining cente is a semi closed-loop vertical machining center with X, y and Z three-axis servo direct control. The three axes are divided into hard rail and (optional: rolling linear guide). CNC milling machineThe guide rail has large load, wide span, high ...
