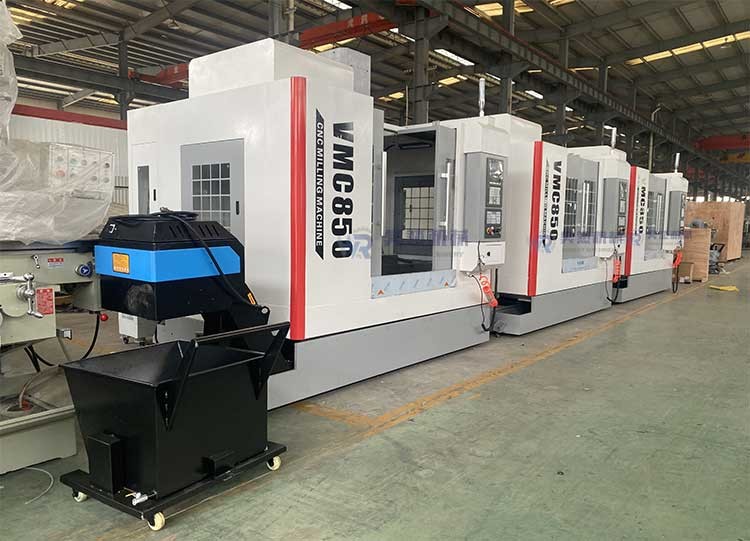

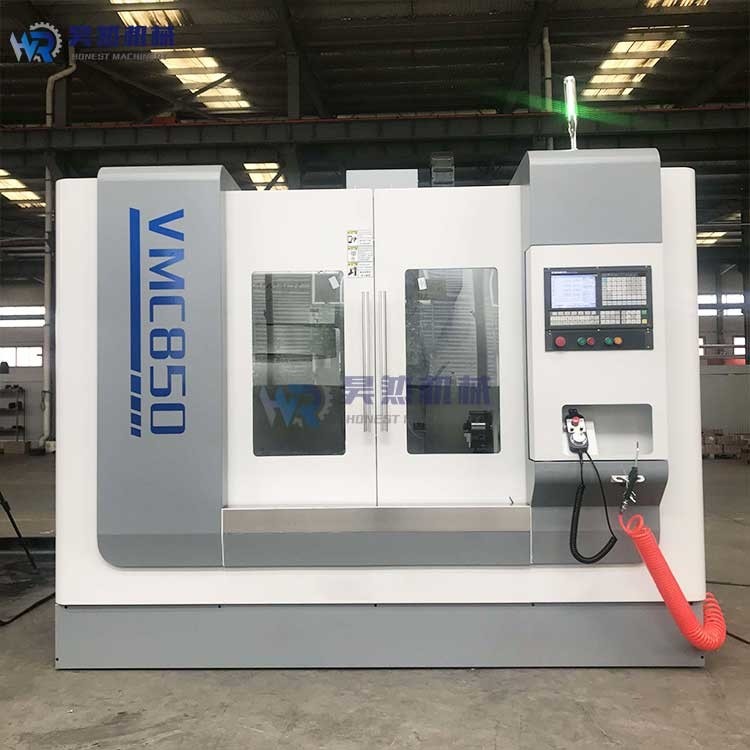

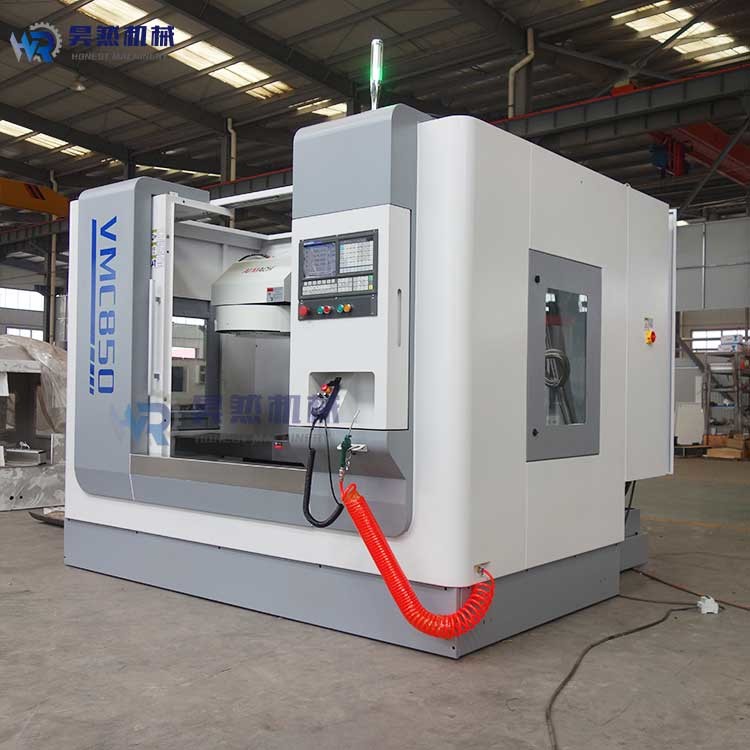

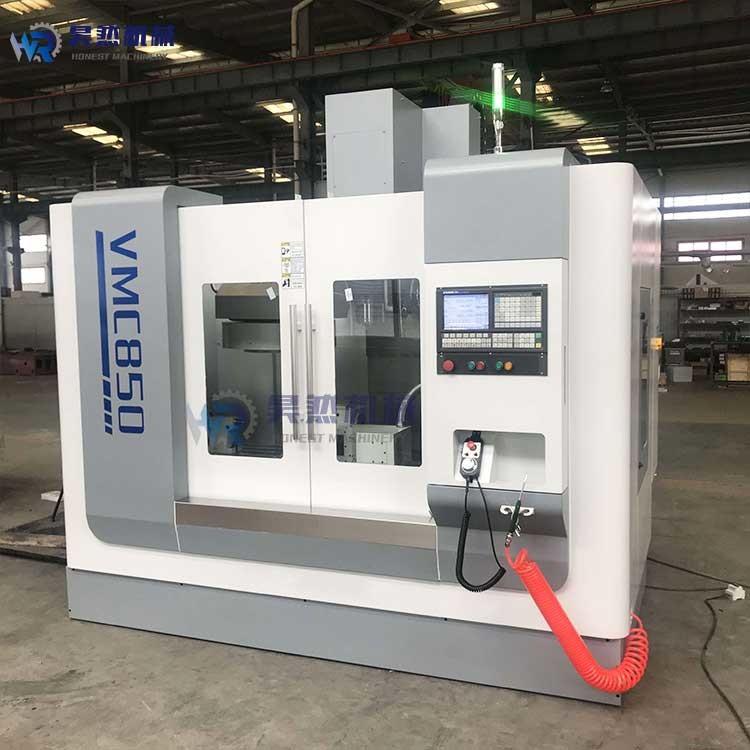

5 Axis Vmc850 Cnc Vertical Machine Center High Speed
| Warranty | 3 Years | Weight | 4800kg |
|---|---|---|---|
| Dimension(l*w*h) | 3200*2800*3200mm | Condition | New |
| Type | Vertical | Voltage | 380V 50HZ |
| Power(w) | 7.5/11 KW | Spindle Taper | BT40 |
| Highlight | 7.5kW Cnc Vertical Machine Center,11kW Cnc Vertical Machine Center,CNC 5 axis vertical machining center |
||
5axis Vmc850 Cnc Vertical Machine Center Best Price
Product Introduction
The high-speed and high-rigidity spindle unit of the machining center is combined with the servo spindle motor; X/Y/Z adopts high torque servo motor. X/Y/Z adopts Taiwan Province high-precision and high-strength ball screw, Japanese NSK bearing and high-precision imported locking.X/Y/Z three-way guide rail adopts hard track design, fixed surface adopts ultra-high frequency quenching process after precision grinding; The sliding surface is made of high strength wear-resisting material with plastic tape. Y direction guide rail for four track design (including auxiliary guide rail) greatly increase the rigidity and strength of the machine tool.
|
Model
|
VMC650
|
VMC840
|
VMC850
|
VMC855
|
|
Table size (mm)
|
1000*400
|
1000*400
|
1000*500
|
1000*550
|
|
Max. allowable load (Kg)
|
400
|
300
|
500
|
500
|
|
X-axis stroke (mm)
|
650
|
800
|
800
|
800
|
|
Y-axis travel (mm)
|
400
|
400
|
500
|
550
|
|
Z-axis travel (mm)
|
550
|
550
|
500
|
550
|
|
T-slot
|
3-18-120
|
3-18-140
|
5-18-108
|
5-18-90
|
|
spindle center to Z-axis guide surface (mm)
|
485
|
445
|
552
|
590
|
|
spindle end face to work table (mm)
|
100-650
|
100-650
|
110-610
|
120-670
|
|
Spindle taper hole
|
BT40-120
|
BT40-120
|
BT40-140
|
BT40-150
|
|
Spindle speed (r/min)
|
8000
|
8000
|
8000
|
8000
|
|
X/Y/Z rapid movement (m/min)
|
48/48/48
|
30/30/18
|
48/48/48
|
48/48/48
|
|
Machine Weight (Kg)
|
3800
|
3200
|
5300
|
5500
|
|
Model
|
VMC966 I
|
VMC1050
|
VMC1160
|
VMC1165
|
|
Table size (mm)
|
1100*550
|
1200*420
|
1200*600
|
1200*600
|
|
Max. allowable load (Kg)
|
600
|
500
|
800
|
800
|
|
X-axis stroke (mm)
|
900
|
1000
|
1100
|
1100
|
|
Y-axis travel (mm)
|
600
|
500
|
600
|
650
|
|
Z-axis travel (mm)
|
600
|
550
|
600
|
650
|
|
T-slot
|
5-18-100
|
5-18-100
|
5-18*100
|
5-18-100
|
|
spindle center to Z-axis guide surface (mm)
|
663
|
575
|
650
|
710
|
|
spindle end face to work table (mm)
|
100-700
|
100-650
|
120-720
|
120-720
|
|
Spindle taper hole
|
BT40-150
|
BT40-150
|
BT40-150
|
BT40-150
|
|
Spindle speed (r/min)
|
8000
|
8000
|
8000
|
8000
|
|
X/Y/Z rapid movement (m/min)
|
48/48/48
|
18/18/18
|
36/36/24
|
36/36/36
|
|
Machine Weight (Kg)
|
5600
|
5500
|
6500
|
6800
|
![]()
2. Coolant system-In order to keep the parts and tools cool and lubricated, most VMCs adopt some kind of circulating coolant system; It is usually a mixture of soluble oil and water, but it can also be various other liquids.
3. Chip/Screw Conveyor-In order to discharge chips from the work area, various chip conveyors and chip screw conveyors can be used to improve productivity and reduce the downtime of manually shoveling waste chips.
4. Full cover/enclosure-These can be added to reduce splash/splash caused by milling operations and protect operators and the environment from the machining process.
package according to your requests. Delivery Detail: Shipped in 15-30 working days after payment.
