Vmc850 Cnc Milling Machining Center Taiwan Spindle

  • Vmc850 Cnc Milling Machining Center Taiwan Spindle
  • Vmc850 Cnc Milling Machining Center Taiwan Spindle
Place of Origin china
Brand Name HR
Certification ceiso
Model Number vmc850
Minimum Order Quantity 1set
Price usd 19000-40000
Packaging Details wooden packing
Delivery Time 30day
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 40set/month
Product Details
Warranty 1 Year Weight 8000kg
Condition New Type Vertical
Voltage 380V 50HZ Power(w) 5.5KW
Spindle Taiwan 8000rpm Spindle Spindle Taper BT40
Highlight

380V 850 cnc milling machining center

,

380V 50HZ cnc milling machining center

,

380V 850 vmc machining center
Leave a Message
Product Description



It is suitable for the production of multi variety, medium and small batch products, and can meet the processing of complex and high-precision parts. It can be equipped with a fourth rotating shaft to meet the processing requirements of special parts.
Model
VMC650
VMC840
VMC850s
VMC855
Table size (mm)
1000*400
1000*400
1000*500
1000*550
Max. allowable load (Kg)
400
300
500
500
X-axis stroke (mm)
650
800
800
800
Y-axis travel (mm)
400
400
500
550
Z-axis travel (mm)
550
550
500
550
T-slot
3-18-120
3-18-140
5-18-108
5-18-90
spindle center to Z-axis guide surface (mm)
485
445
552
590
spindle end face to work table (mm)
100-650
100-650
110-610
120-670
Spindle taper hole
BT40-120
BT40-120
BT40-140
BT40-150
Spindle speed (r/min)
8000
8000
8000
8000
X/Y/Z rapid movement (m/min)
48/48/48
30/30/18
48/48/48
48/48/48
Machine Weight (Kg)
3800
3200
5300
5500
Model
VMC966
VMC1050
VMC1160
VMC1165
Table size (mm)
1100*550
1200*420
1200*600
1200*600
Max. allowable load (Kg)
600
500
800
800
X-axis stroke (mm)
900
1000
1100
1100
Y-axis travel (mm)
600
500
600
650
Z-axis travel (mm)
600
550
600
650
T-slot
5-18-100
5-18-100
5-18*100
5-18-100
spindle center to Z-axis guide surface (mm)
663
575
650
710
spindle end face to work table (mm)
100-700
100-650
120-720
120-720
Spindle taper hole
BT40-150
BT40-150
BT40-150
BT40-150
Spindle speed (r/min)
8000
8000
8000
8000
X/Y/Z rapid movement (m/min)
48/48/48
18/18/18
36/36/24
36/36/36
Machine Weight (Kg)
5600
5500
6500
6800

Model
VMC1265
VMC1270
VMC1370
VMC1580
Vmc1690
Table size (mm)
1200*600
1200*700
1400*700
1700*800
1600*800
Max. allowable load (Kg)
800
800
800
1500
1500
X-axis stroke (mm)
1200
1200
1300
1500
1600
Y-axis travel (mm)
650
700
700
800
900
Z-axis travel (mm)
650
700
750
700
700
T-slot
5-18-100
5-18-130
5-18-130
5-22-135
7-22-110
spindle center to Z-axis guide surface (mm)
710
710
713
855
936
spindle end face to work table (mm)
120-770
120-770
120-870
160-860
150-850
Spindle taper hole
BT40-150
BT40-150
BT40-150
BT50-155
BT50-190
Spindle speed (r/min)
8000
8000
8000
6000
10000
X/Y/Z rapid movement (m/min)
36/36/36
36/36/36
24/24/24
24/24/18
15/15/12
Machine Weight (Kg)
7000
7000
8000
12000
12000
Product Details

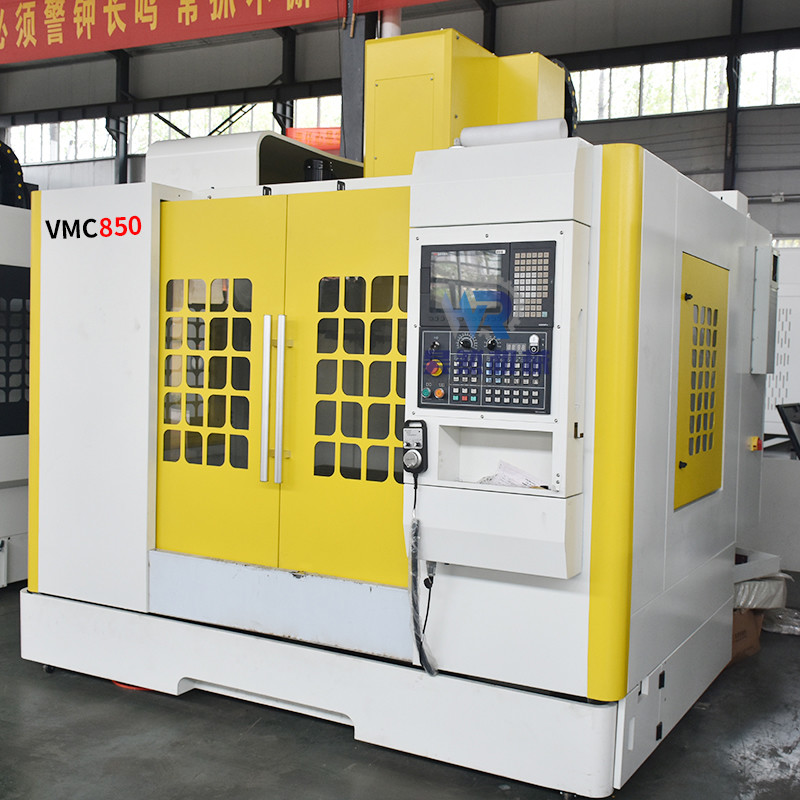

Vmc850 Cnc Milling Machining Center Taiwan Spindle 0
 Z-direction counterweight is added for balance to ensure smooth and stable movement of headstock; The z-direction drive motor is equipped with power loss braking device;
sample

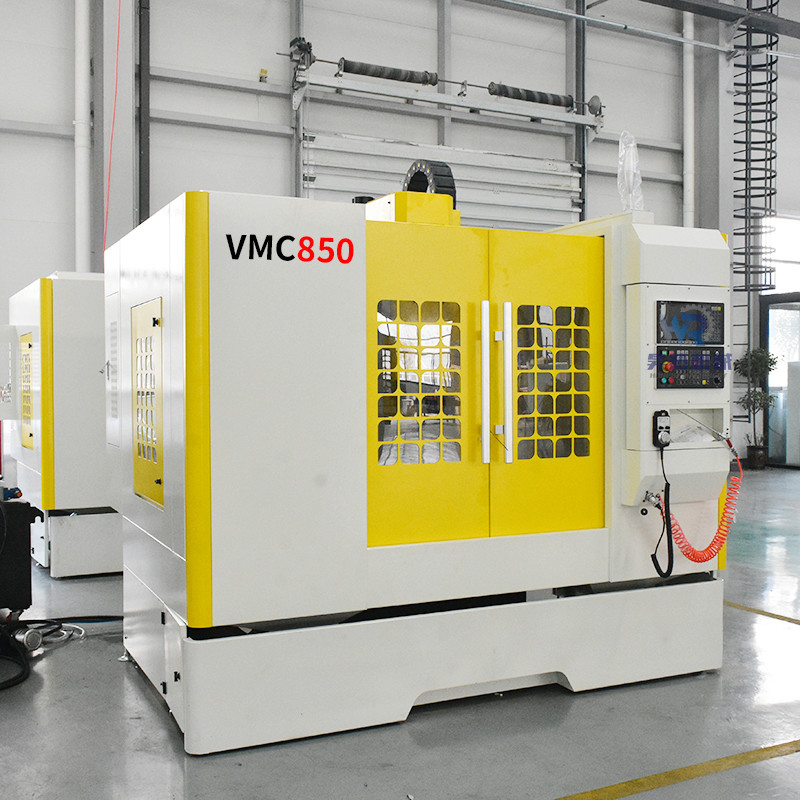

Vmc850 Cnc Milling Machining Center Taiwan Spindle 1

it is widely used to produce the auto spare
parts, medical treatment instrument and any kind of injection
mould, blowing mould, die-casting mould, car LED mould, toy mould and precise mould and o on.
Packaging＆Shipping
Vmc850 Cnc Milling Machining Center Taiwan Spindle 2

Packaging Details: 1. Outside package: Standard marine export plywood case. 2. Inner package: Stretchy film and plastic film for humidity. We can package according to your requests. Delivery Detail: Shipped in 3-20 working days after payment.
