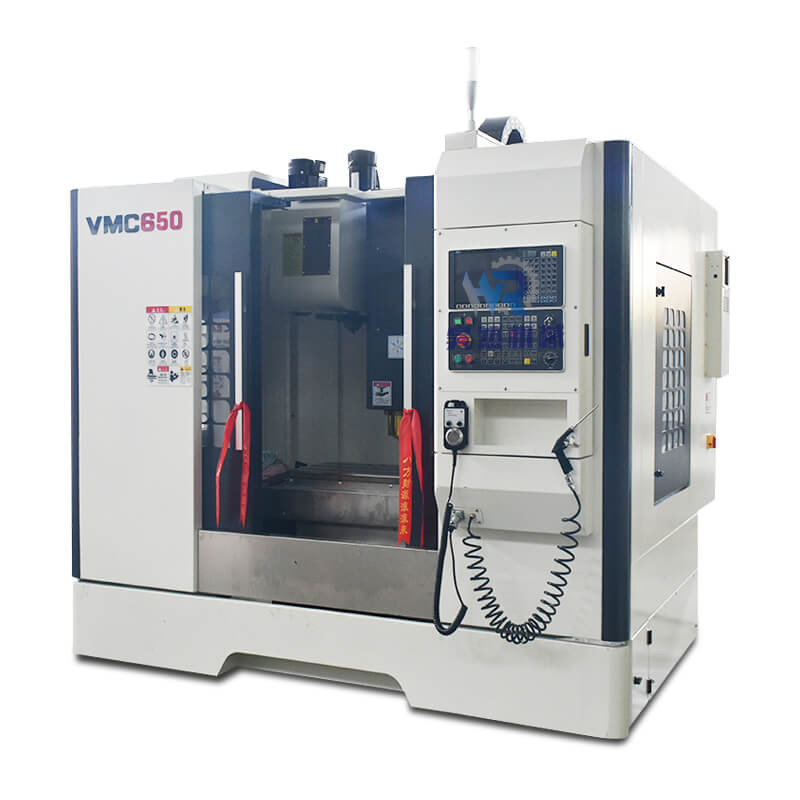

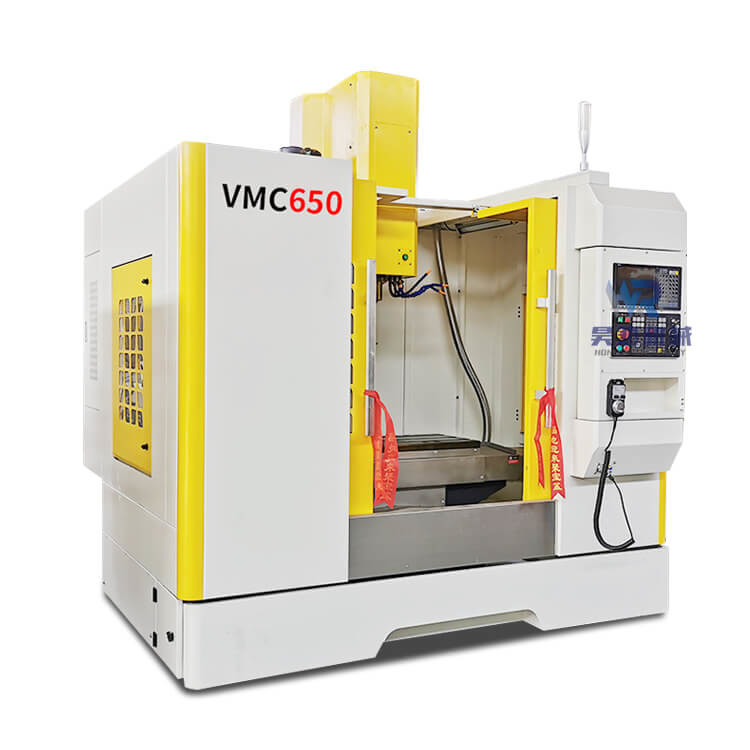

Knd Controller Vmc650 Cnc Milling Machine Vertical 5.5KW

  • Knd Controller Vmc650 Cnc Milling Machine Vertical 5.5KW
  • Knd Controller Vmc650 Cnc Milling Machine Vertical 5.5KW
Place of Origin china
Brand Name HR
Certification ceiso
Model Number vmc650
Minimum Order Quantity 1set
Price usd 19000-40000
Packaging Details wooden packing
Delivery Time 30day
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 40set/month
Product Details
Warranty 1 Year Weight 8000kg
Condition New Type Vertical
Voltage 380V 50HZ Power(w) 5.5KW
Spindle Taiwan 8000rpm Spindle Spindle Taper BT40
Highlight

5.5kw Vmc650 cnc milling machine vertical

,

knd controller cnc milling machine vertical

,

knd controller 650 vmc machining center
Leave a Message
Product Description



Model
VMC650
VMC840
VMC850
VMC855
Table size (mm)
1000*400
1000*400
1000*500
1000*550
Max. allowable load (Kg)
400
300
500
500
X-axis stroke (mm)
650
800
800
800
Y-axis travel (mm)
400
400
500
550
Z-axis travel (mm)
550
550
500
550
T-slot
3-18-120
3-18-140
5-18-108
5-18-90
spindle center to Z-axis guide surface (mm)
485
445
552
590
spindle end face to work table (mm)
100-650
100-650
110-610
120-670
Spindle taper hole
BT40-120
BT40-120
BT40-140
BT40-150
Spindle speed (r/min)
8000
8000
8000
8000
X/Y/Z rapid movement (m/min)
48/48/48
30/30/18
48/48/48
48/48/48
Machine Weight (Kg)
3800
3200
5300
5500
Knd Controller Vmc650 Cnc Milling Machine Vertical 5.5KW 0
Vmc650 CNC milling machineIt is suitable for the production of multi variety, medium and small batch products, and can meet the processing of complex and high-precision parts. Vmc650 CNC milling machine
Product Details
Knd Controller Vmc650 Cnc Milling Machine Vertical 5.5KW 1
Knd Controller Vmc650 Cnc Milling Machine Vertical 5.5KW 2



Vmc650 CNC milling machine CNC vertical machining cente suitable for the production of multi variety, medium and small batch products, and can meet the processing of complex and high-precision parts.CNC vertical machining cente
Knd Controller Vmc650 Cnc Milling Machine Vertical 5.5KW 3



Taiwan spindle ensures high-speed cutting. The water outlet function of the spindle center has good chip removal effect and good cooling effect, which improves the processing quality
Knd Controller Vmc650 Cnc Milling Machine Vertical 5.5KW 4



Taiwan HIWIN high precison guideway
Knd Controller Vmc650 Cnc Milling Machine Vertical 5.5KW 5



Automatic tool change system
Knd Controller Vmc650 Cnc Milling Machine Vertical 5.5KW 6

Casting customers are assured of machinery and precision testing
sample
Knd Controller Vmc650 Cnc Milling Machine Vertical 5.5KW 7

it is widely used to produce the auto spare
parts, medical treatment instrument and any kind of injection
mould, blowing mould, die-casting mould, car LED mould, toy mould and precise mould and o on.
Packaging＆Shipping
Knd Controller Vmc650 Cnc Milling Machine Vertical 5.5KW 8

Packaging Details: 1. Outside package: Standard marine export plywood case. 2. Inner package: Stretchy film and plastic film for humidity. We can package according to your requests. Delivery Detail: Shipped in 30 working days after payment.
