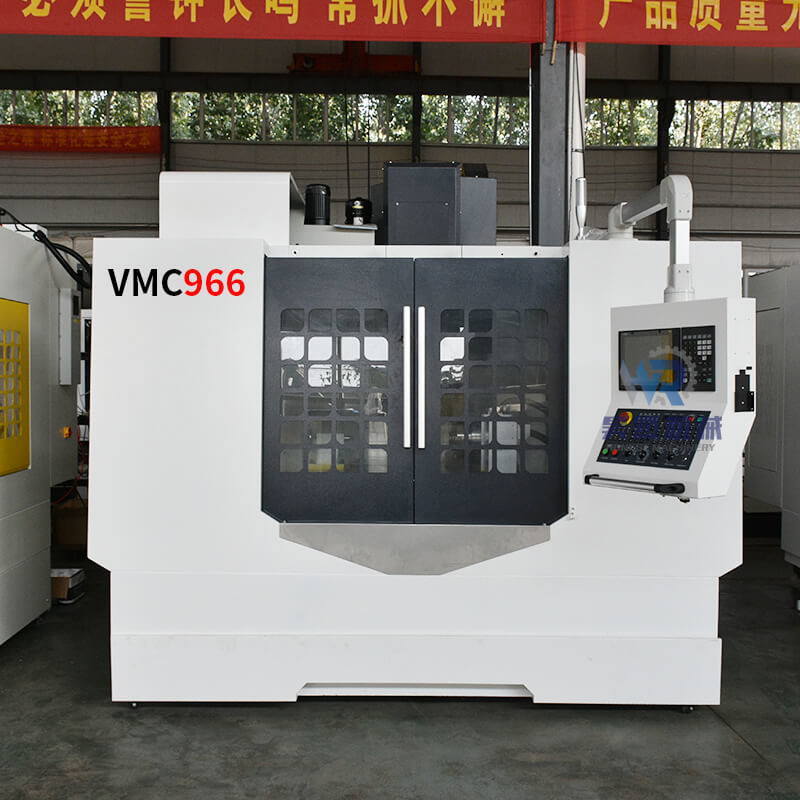

VMC966 Milling Vertical CNC Machine 3 Axis CNC Vertical Machining Center
| Place of Origin | China |
|---|---|
| Brand Name | HR |
| Certification | CE ISO |
| Model Number | vmc 966 |
| Minimum Order Quantity | 1 |
| Price | 26700$-32000$ per one set |
| Packaging Details | wooden package |
| Delivery Time | After 15-30 Days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Trade Assurance |
| Supply Ability | 200 per a month |
Product Details
| Name | China Factory Direct Sales VMC966 Cnc Milling Machines 3axis Vertical Machining Center | Number Of Axes | 4 |
|---|---|---|---|
| Machining Capacity | Medium Duty | Range Of Spindle Speed(r.p.m) | 8000 - 12000 |
| No. Of Spindles | Single | Spindle Taper | BT40 |
| Positioning Accuracy (mm) | ±0.005 | Repeatability (X/Y/Z) (mm) | ±0.002 |
| Highlight | 8000rpm vertical cnc machine,3axis vertical cnc machine Center,3 axis cnc vertical machining center |
||
Product Description
China factory direct sales VMC966 cnc milling machines 3axis vertical machining center
Product Paramenters
Product Description
vertical Machining has been around in its most basic form for more than 150 years. Yet, it's still one of the newest forms of machining technology (turning/lathes is the oldest). The process of “milling” entails a rotating cutter, or drilling bit, and a movable work table, which the workpiece is affixed to. The cutter is attached to and rotated in a housing called the "spindle."
Through the sharpness of the tool and force of the table pushing the material into the cutter, the material yields and is cut or shaved away as desired. The axis of force can be up/down (referred to as the Z-Axis) left/right (referred to as the X-Axis), or front to back (referred to as the Y-Axis). VMCs can be equipped with multiple adjustments. For example, there are many angles of approach available as well as rotary and other positioning devices up on the worktable. Later renditions of the VMC design added power and hydraulic feeding devices to make the system more automated and, eventually, computerized controls were added to allow for more automation in operation, repeatability, tool selection/changing and contour control. These new CNC’s took the “milling”machine to a new level of productivity and, thus, the term VMC (Vertical Machining Center) was born.
Through the sharpness of the tool and force of the table pushing the material into the cutter, the material yields and is cut or shaved away as desired. The axis of force can be up/down (referred to as the Z-Axis) left/right (referred to as the X-Axis), or front to back (referred to as the Y-Axis). VMCs can be equipped with multiple adjustments. For example, there are many angles of approach available as well as rotary and other positioning devices up on the worktable. Later renditions of the VMC design added power and hydraulic feeding devices to make the system more automated and, eventually, computerized controls were added to allow for more automation in operation, repeatability, tool selection/changing and contour control. These new CNC’s took the “milling”machine to a new level of productivity and, thus, the term VMC (Vertical Machining Center) was born.
Application:
This VMC is suitable for mechanical processing and mold making .And it can adapt to the processing
requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling,tapping,boring ,etc.
This VMC is suitable for mechanical processing and mold making .And it can adapt to the processing
requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling,tapping,boring ,etc.
Product Advantages
The advantages of Machining center
Machining center high speed and high rigidity spindle unit combined with servo spindle motor; X/Y/Z adopts high torque servo motor. X/Y/Z adopts Taiwan high-precision high-strength ball screw with Japanese NSK bearing and high precision imported locking. X/Y/Z three-way guide rail adopts hard track design, fixed surface adopts ultra-high frequency quenching process after precision grinding; The sliding surface is made of high strength wear-resisting material with plastic tape. Y direction guide rail for four track design (including auxiliary guide rail) greatly increase the rigidity and strength of the machine
tool.
tool.
Machine detection
Application Example
This VMC is suitable for mechanical processing and mold making .And it can adapt to the processing
requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling
,tapping,boring ,etc.
requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling
,tapping,boring ,etc.
