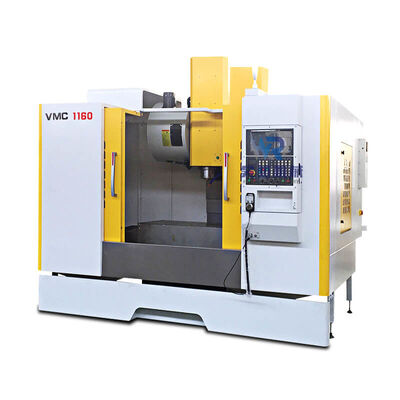

3axis CNC Vertical Machine Center VMC1160 For Small Batch Products

  • 3axis CNC Vertical Machine Center VMC1160 For Small Batch Products
  • 3axis CNC Vertical Machine Center VMC1160 For Small Batch Products
Place of Origin china
Brand Name HR
Certification ceiso
Model Number vmc1160
Minimum Order Quantity 1set
Price 19000-40000usd
Packaging Details wooden packing
Delivery Time 30day
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 40set/month
Product Details
Model VMC1160 Table Size (mm) 1200*600
X-axis Stroke (mm) 1100 Y-axis Travel (mm) 600
Z-axis Travel (mm) 600 Warranty 1 Year
Condition New Type Vertical
Highlight

3axis VMC1160 cnc vertical machine center

,

cnc vertical machine center vmc1160

,

vmc1160
Leave a Message
Product Description



Item
VMC840
VMC850
vmc855
VMC1160
VMC1270
VMC1370
VMC1580
Size of worktable(length×width)mm
1000*400
1000*500
1000*550
1200*600
1400*700
1460*700
1700*800
T slot (mm)
5-18*100
5-18*100
5-18*90
5-18*100mm
5-18*115
5-22*140
5-22*150
Max loading weight on worktable
500KG
600kg
600kg
1000kg
1000kg
1400
1500
X-Axis travel(mm)
800
800
800
1000
1200
1300
1500
Y-Axis travel(mm)
400
500
550
600
700
700
800
Z-Axis travel(mm)
500
500
500
600
700
700
700
Distance between spindle nose and table
105-550
105-605mm
120-620mm
100-700mm
130-830mm
160-860mm
170-840
Distance between spindle
center and column(mm)
450
550
540
667
767
775
810
Spindle taper
BT40
BT40
BT40
BT40
BT50
Max. spindle speed( rpm)
8000/10000/12000
Spindle motor power(Kw)
5.5KW
7.5/11kw
7.5/11kw
11/15kw
11/15kw
15/18.5kw
18.5kw
Rapid feeding speed: X,Y,Z axis m/min
16/16/16 (24/24//24 liner guidway)





Fast cutting speed m /min
10m/min





Positional accuracy
±0.005 mm
±0.005 mm
±0.005 mm
±0.005 mm
±0.005 mm
±0.0075 mm
±0.01 mm
Repeat positional accuracy
±0.003 mm
±0.003 mm
±0.003 mm
±0.003 mm
±0.003 mm
±0.005 mm
±0.005mm
Auto Tool changer type
16 tools head type tool changer(optional 24 arm type auto tool changer)





Max. tool length
300mm



Max. Tool diameter
Φ80(adjacent tool)/φ150(not adjacent tool)



Max.tool weight
8kg



Tool changing time(tool-to-tool)
7sec



Air pressure
0.6 Mpa



Machine weight
4200KG
5500KG
5800
7500KG
9000KG
10000KG
13000KG
Overall sizse(mm)
2600*2300*2300
2600*2300*2300
2800*2400*2400
3340*2800*2700
3800*3000*2650
3870*3165*2920
4300*3200*3100

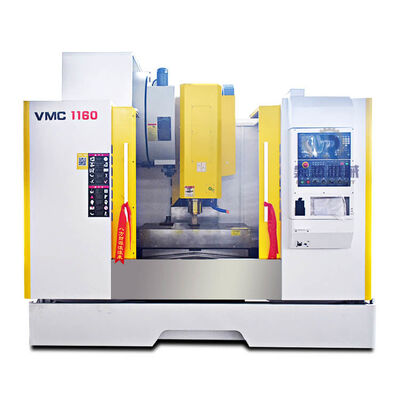

3axis CNC Vertical Machine Center VMC1160 For Small Batch Products 0
Vmc1160 CNC milling machine It is suitable for the production of multi variety, medium and small batch products, and can meet the processing of complex and high-precision parts.Vmc1160 CNC milling machine
Product Details
3axis CNC Vertical Machine Center VMC1160 For Small Batch Products 1

The basic parts are molded with resin sand and aging treatment, which provides a guarantee for the stability of the long-term service performance of the machine tool.
sample
3axis CNC Vertical Machine Center VMC1160 For Small Batch Products 2
it is widely used to produce the auto spare
parts, medical treatment instrument and any kind of injection
mould, blowing mould, die-casting mould, car LED mould, toy mould and precise mould and o on.

Packaging＆Shipping
3axis CNC Vertical Machine Center VMC1160 For Small Batch Products 3

Packaging Details: 1. Outside package: Standard marine export plywood case. 2. Inner package: Stretchy film and plastic film for humidity. We can package according to your requests. Delivery Detail: Shipped in 30 working days after payment.
