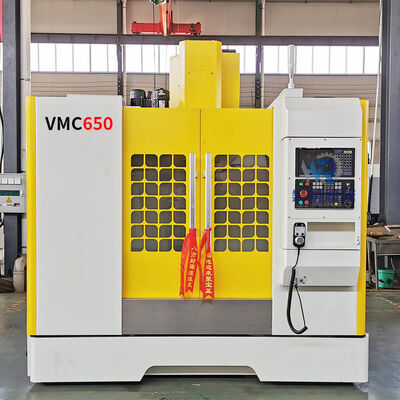

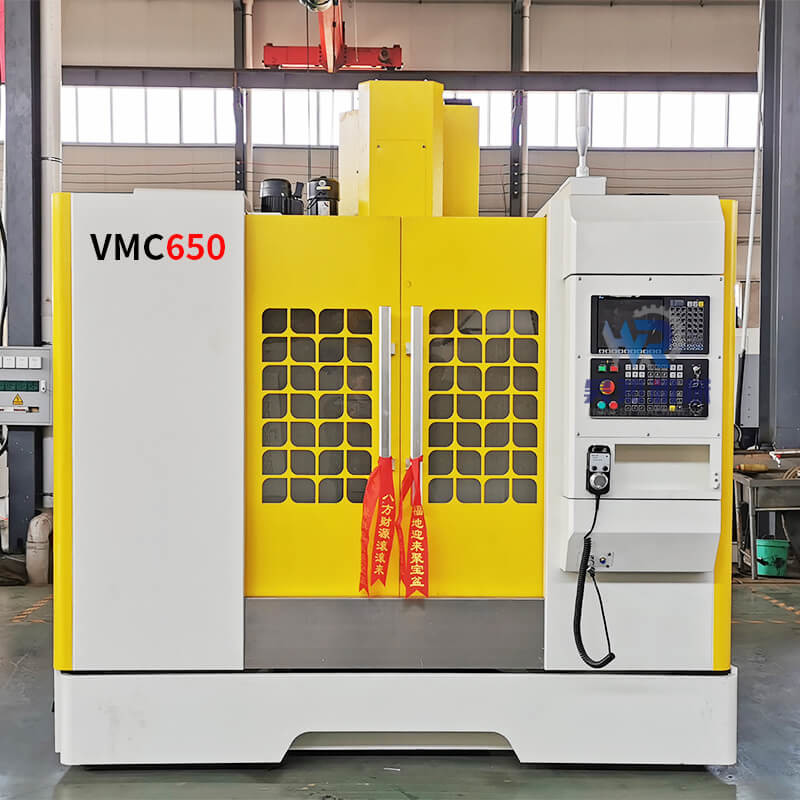

CNC Vmc650 Small Vertical Milling Machine Center 5 Axis 1000x400
| Place of Origin | china |
|---|---|
| Brand Name | HR |
| Certification | ceiso |
| Model Number | vmc650 |
| Minimum Order Quantity | 1set |
| Price | 19000-40000usd |
| Packaging Details | wooden packing |
| Delivery Time | 30day |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 40set/month |
Product Details
| Warranty | 1 Year | Weight | 8000kg |
|---|---|---|---|
| Condition | New | Type | Vertical |
| Power(w) | 7.5/11 KW | Spindle | Taiwan 10000rpm Spindle |
| Spindle Taper | BT40 | ||
| Highlight | 1000x400 vmc650,1000x400 vmc650 Milling Machine,vmc650 small vertical milling machine |
||
Product Description
1. Parts processing has strong adaptability and flexibility, and can process parts with particularly complex contour shape or difficult to control size, such as mold parts, shell parts, etc; 2. It can process parts that cannot be processed by ordinary machine tools or are difficult to process, such as complex curve parts described by mathematical models and three-dimensional space curved surface parts; 3. It can process parts that need to be processed in multiple processes after one-time clamping and positioning; 4. The machining precision is high and the machining quality is stable and reliable. At present, the pulse equivalent of NC device is generally 0.001mm, and the high-precision NC system can reach 0.1 μ m. In addition, NC machining also avoids the operation errors of operators; 5. High degree of production automation can reduce the labor intensity of operators. It is conducive to the automation of production management; 6. With high production efficiency, CNC milling machines generally do not need to use special process equipment such as special fixtures. When replacing workpieces, they only need to call the processing program, clamping tools and adjusting tool data stored in the CNC device, which greatly shortens the production cycle. Secondly, the CNC milling machine has the functions of milling machine, boring machine and drilling machine, which makes the process highly concentrated and greatly improves the production efficiency. In addition, the spindle speed and feed speed of NC milling machine are stepless, so it is conducive to select the best cutting parameters;
Product Details
Taiwan HIWIN high precison guideway Taiwan-made spindle Unit,8000-12000rpm available.Reliable Control System: machining center is suitable for producing metal product and parts in all shapes. Taiwan spindle adopts high-quality bearings with good rigidity. BT40 tool handle is standard and BT40 tool handle is optional.HT300 cast iron is adopted for the main foundation parts such as base, sliding seat, workbench, column and headstock; cnc milling machine The substructure is a box structure, and the compact and reasonable symmetrical reinforcement structure ensures the high rigidity, cnc milling machine bending resistance and damping performance of the foundation parts; A-span column and internal grid reinforcement effectively ensure the rigidity and accuracy of z-axis strong cutting; The basic parts are molded with resin sand and aging treatment, which provides a guarantee for the stability of the long-term service performance of the machine tool. cnc milling machine
Casting customers are assured of machinery and precision testing
sample
It is widely used to produce the auto spare parts, medical treatment instrument and any kind of injection mould, blowing mould, die-casting mould, car LED mould, toy mould and precise mould and o on. Large steel molds are the first products requiring large cutting amount and fast processing speed. It is applicable to the processing of plastic mold industry, automobile tire industry, hardware industry, toy industry, handicrafts, fine stamping die, bronzing die, high-frequency die, embossing wheel die, die-casting die and graphite electrode. It is the best choice for mold manufacturing industry and parts processing.
Packaging＆Shipping
Packaging Details: 1. Outside package: Standard marine export plywood case. 2. Inner package: Stretchy film and plastic film for humidity. We can package according to your requests. Delivery Detail: Shipped in 30 working days after payment.
Company information
Shandong honest Machinery Co., Ltd. is a provincial key enterprise specializing in mechanical product R & Development of numerical control equipment. It integrates development, production and sales. The company has a series of cnc milling machine ,fiber laser cutting machines, plasma cutting machines, and other products, which are widely used in machinery, mold, advertising, metal processing,in China and exported to Asia, Europe, North America, South America, Africa and other countries. It has advanced manufacturing technology, large production scale and high product quality. Professional user training and timely after-sales service are the basis to ensure customer satisfaction.
