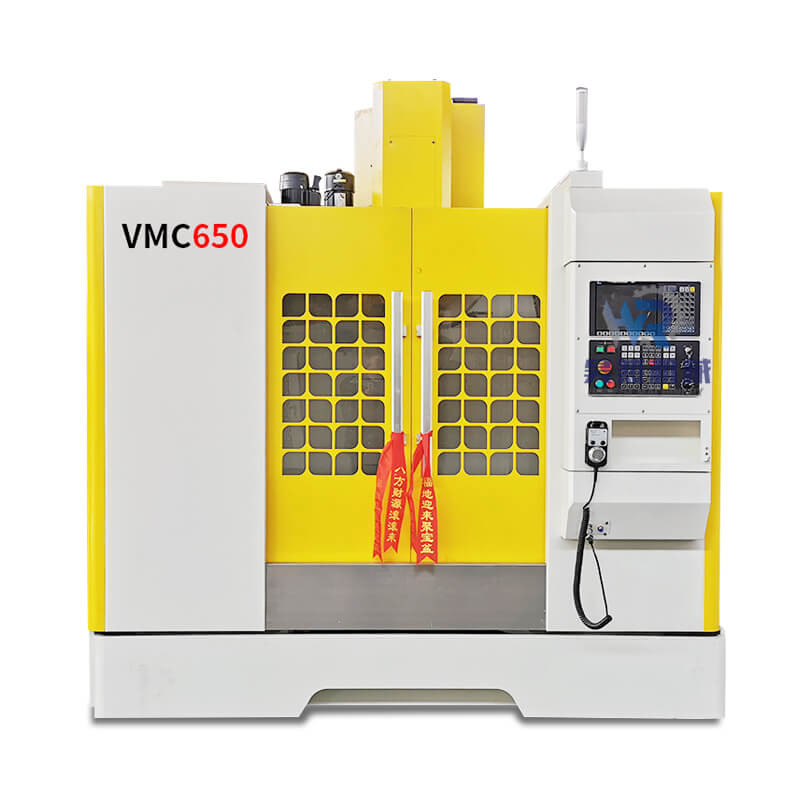

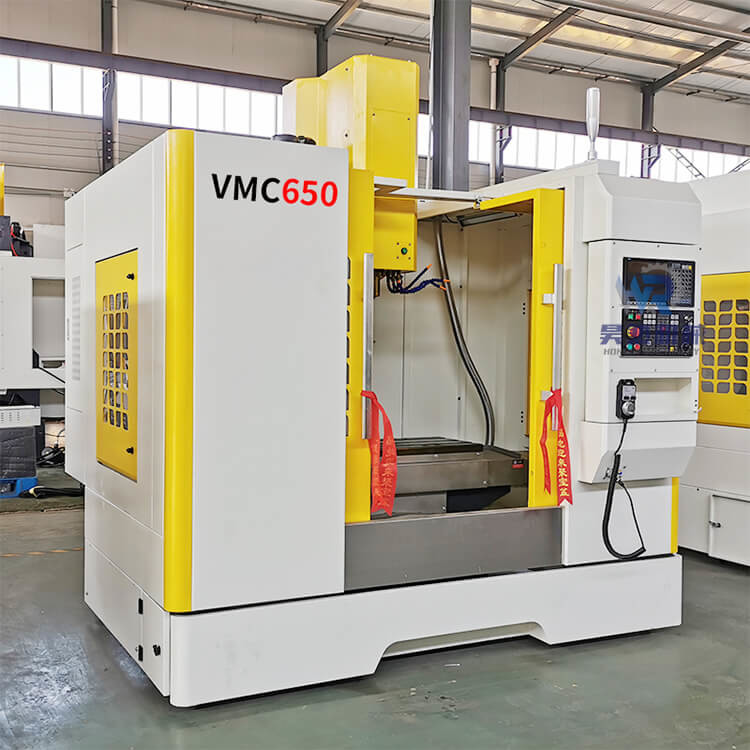

Custom 4 Axis VMC650 CNC Vertical Machine Center 1000x400
| Place of Origin | China |
|---|---|
| Brand Name | HR |
| Certification | CE ISO |
| Model Number | vmc 650 |
| Minimum Order Quantity | 1 |
| Price | 26700$-32000$ per one set |
| Packaging Details | wooden package |
| Delivery Time | After 15-30 Days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Trade Assurance |
| Supply Ability | 60 per a month |
Product Details
| Name | Vertical Machining Center 4 Axis VMC650 CNC Milling Machine For Metals | Number Of Axes | 4 |
|---|---|---|---|
| Machining Capacity | Medium Duty | Range Of Spindle Speed(r.p.m) | 8000 - 12000 |
| No. Of Spindles | Single | Spindle Taper | BT40 |
| Positioning Accuracy (mm) | ±0.005 | Repeatability (X/Y/Z) (mm) | ±0.002 |
| Highlight | 1000x400 cnc vertical machine center,3800kg cnc vertical machine center,1000x400 vertical cnc milling machine |
||
Product Description
Product Paramenters
Product Description
1.The fuselage and main components are high strength cast iron, microstructure stability, ensure the stability of machine tool for long-term use.
2.The column at the bottom of A type bridge type structure, combined with the big box base, greatly reduce the vibration of machine on heavy cutting
3.The pre tension precision ball screw drive
4.The high speed, high precision, high rigidity spindle unit
Application:
This VMC is suitable for mechanical processing and mold making .And it can adapt to the processing
requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling,tapping,boring ,etc.
Application:
This VMC is suitable for mechanical processing and mold making .And it can adapt to the processing
requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling,tapping,boring ,etc.
Product Advantages
The advantages of CNC Vertical Milling Machine
1. The main parts of machine tool 650 in machining center are optimized by finite element analysis. The main cast iron is made of high strength cast iron with stable metallostructure.
2. Machining center 650 machine body base, slide block, workbench, column, spindle box and other main foundation parts adopt high rigid cast iron structure, stable metallographic structure, distributed in the internal network structure reinforcement,to ensure the high rigidity and bending resistance and shock absorption performance of the foundation parts; The basic parts are made of resin sand and treated by sandblasting, tempering and vibration effectively to ensure the stability of the machine's accuracy in long-term use and provide a guarantee for the stability of the machine's performance.
3. Machining center 650 high speed and high rigidity spindle unit combined with servo spindle motor; X/Y/Z adopts high torque servo motor. X/Y/Z adopts Taiwan high-precision high-strength ball screw with Japanese NSK bearing and high precision imported locking. X/Y/Z three-way guide rail adopts hard track design, fixed surface adopts ultra-high frequency quenching process after precision grinding; The sliding surface is made of high strength wear-resisting material with plastic tape. Y direction guide rail for four track design (including auxiliary guide rail) greatly increase the rigidity and strength of the machine
tool.
2. Machining center 650 machine body base, slide block, workbench, column, spindle box and other main foundation parts adopt high rigid cast iron structure, stable metallographic structure, distributed in the internal network structure reinforcement,to ensure the high rigidity and bending resistance and shock absorption performance of the foundation parts; The basic parts are made of resin sand and treated by sandblasting, tempering and vibration effectively to ensure the stability of the machine's accuracy in long-term use and provide a guarantee for the stability of the machine's performance.
3. Machining center 650 high speed and high rigidity spindle unit combined with servo spindle motor; X/Y/Z adopts high torque servo motor. X/Y/Z adopts Taiwan high-precision high-strength ball screw with Japanese NSK bearing and high precision imported locking. X/Y/Z three-way guide rail adopts hard track design, fixed surface adopts ultra-high frequency quenching process after precision grinding; The sliding surface is made of high strength wear-resisting material with plastic tape. Y direction guide rail for four track design (including auxiliary guide rail) greatly increase the rigidity and strength of the machine
tool.
Application Example
This VMC is suitable for mechanical processing and mold making .And it can adapt to the processing
requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling
,tapping,boring ,etc.
requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling
,tapping,boring ,etc.
Machine detection
