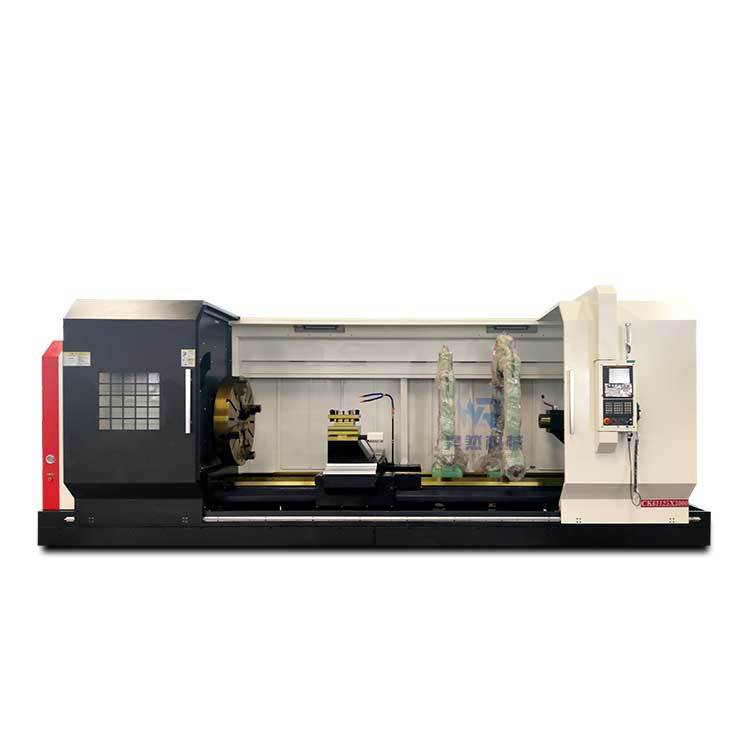

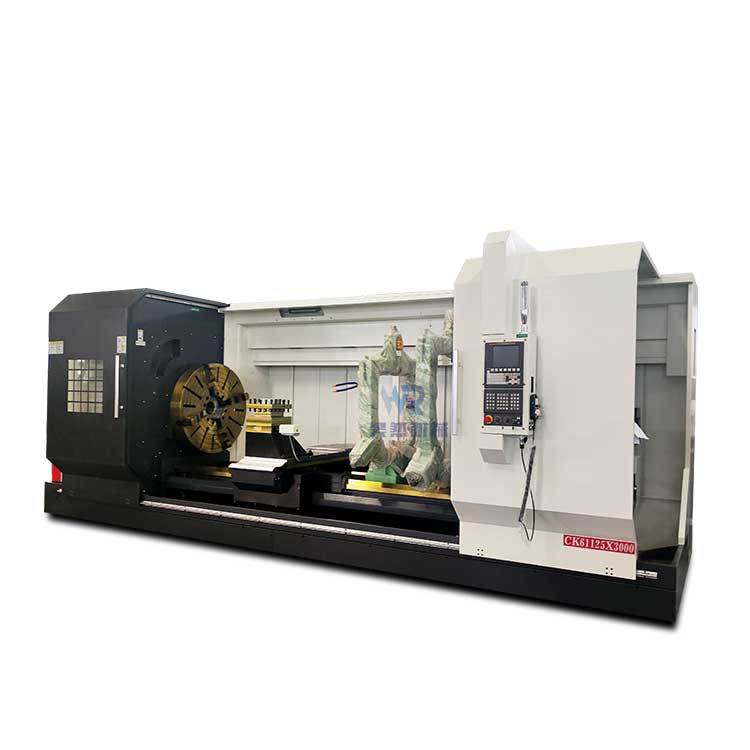

CK6180-1500 2000 3000 4000 CNC Lathe Machine
| Place of Origin | CHINA |
|---|---|
| Brand Name | HR |
| Certification | CE |
| Model Number | CK6180-1500 |
| Minimum Order Quantity | set |
| Price | 16500-17000USD/SET |
| Packaging Details | Plywood packaging |
| Delivery Time | 30 working days |
| Payment Terms | L/C, T/T |
| Supply Ability | 100sets/month |
Product Details
| Voltage | 380V,3 PHASE 380V 50HZ,380V( As Customer Required ) | Automatic Grade | Automatic |
|---|---|---|---|
| Power(w) | 11kw | Condition | New |
| Max. Swing Diameter | 800mm | Weight | 4800kg |
| Dimension(l*w*h) | 1770mm*1250 Mm*1650mm | Cnc Or Not | CNC |
| Type | Horizontal,TURNING CENTER | After-sales Service Provided | Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,Free Spare Parts |
| Warranty | 1 Year | Spindle Bore | 60mm |
| Spindle Speed | 1-835rpm | Color | Custom-made |
| Machine Type | Flat Bed Lathe | Year | New |

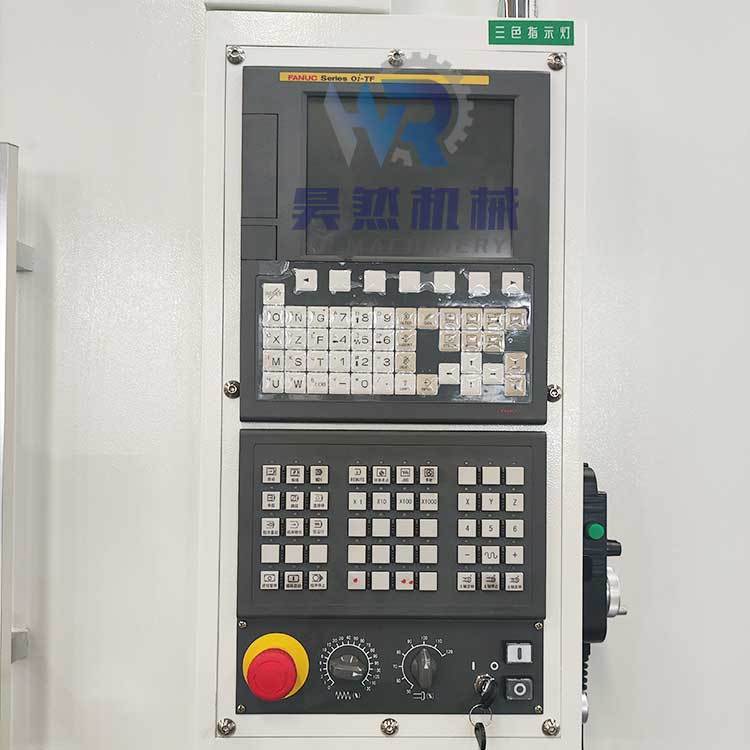

| Control System | SIEMENS GSK FANUC (optional) | ||
| Highlight | CK6180 CNC lathe machine with warranty,CNC lathe machine 1500-4000mm,heavy duty CNC lathe machine |
||
Product Description
Product Introduction
| Specification: | |
| cnc lathe machine ck6180 | |
| Max. swing dia. over bed | 800mm |
| Max. swing dia. over cross slide | 450mm |
| Max. processing length | 1500mm |
| Dia. of spindle | 130mm |
| Spindle taper | MT6 |
| Spindle number | Manual four-speed |
| Spindle speed | 30-84/53-150/125-350/300-835 |

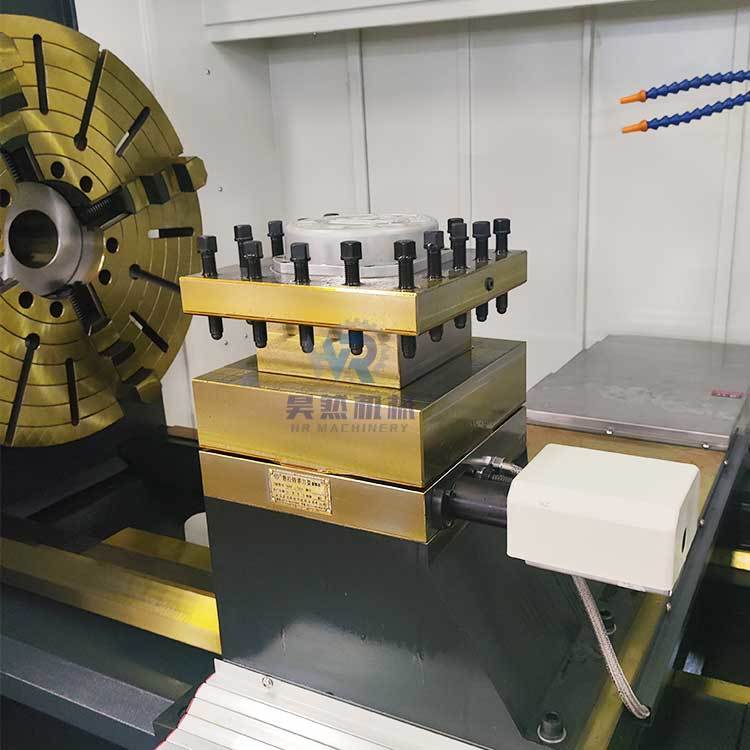

| Tool holder | 4-station Electric tool turret |
| Tool size | 32/32 |
| Main motor power | 11kw |
| Spindle head type | A2-11 |
| X/Z axis travel | 420/(1000/1500/2000/3000) |
| X/Z axis lead screw diameter × pitch | φ3208/φ5010 |
| X/Z fast moving speed | 4/6 |
| Sleeve diameter/stroke | Φ100/250 |
| Sleeve inner hole taper | MT6 |
| Sleeve drive mode | manual |
| Tailstock body movement mode | manual |
| Dimension | 3900mm×1940 mm×1800mm |
| weight | 4800kg |
