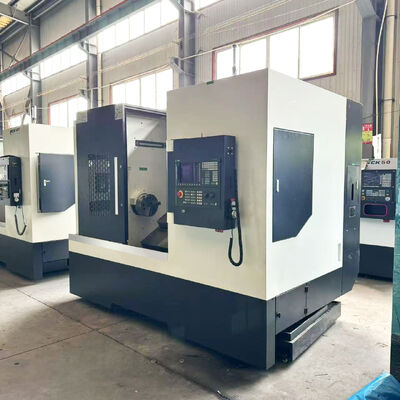

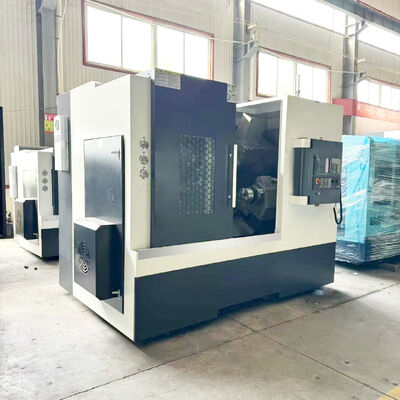

Double Spindle Slant Bed Automatic Cnc Lathe TCK56Y With Sub Spindle Drive Cnc Lathe Turning
| Place of Origin | china |
|---|---|
| Brand Name | HR |
| Certification | ceiso |
| Model Number | TCK56 |
| Minimum Order Quantity | 1set |
| Price | usd 29000-40000 |
| Packaging Details | standard export package(plywood case) |
| Delivery Time | 30days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 40set/month |
Product Details
| Max Swing Over Bed Dia.（mm） | Φ630 | Maximum Cutting Diameter (mm) | Φ540 |
|---|---|---|---|
| X-axis Travel (mm) | 280 | Y-axis Travel (mm) | ±50 |
| Z-axis Travel (mm) | 750 | X-axis Moving Speed (mm/min) | 24000 |
| Spindle Bore (mm) | Φ66 | Bar Through-hole(mm) | Φ52 |
| Highlight | double spindle CNC lathe with sub spindle,slant bed automatic CNC lathe,TCK56Y CNC lathe turning machine |
||
Product Description
Double Spindle Slant Bed Automatic Cnc Lathe TCK56Y with Sub Spindle Drive Cnc Lathe Turning
Product Introduction
Two axis feed.slant bed cnc turning center lathe machine The whole machine has a compact structure, beautiful appearance, large spindle torque, high rigidity, stable and reliable performance, and excellent accuracy retention. Optimized design of the headstock, suitable for turning of disc and shaft parts. It can process straight, arc, metric and inch threads, and multi-threaded. It is suitable for turning discs and shafts with complex shapes and high precision requirements. Parts Processing.
Details Images
1. Special structure more stronger 2. Heavy loading capacity 3.Easy metal chips falling down
CNC System Optional: Siemens , FANUC ,Syntec GSK Etc.
Main spindle
A2-6 main spindle Diameter of spindle through hole: 66mm
Inner diameter of pull through hole: 52mm
A2-6 main spindle Diameter of spindle through hole: 66mm
Inner diameter of pull through hole: 52mm
Counter spindle
A2-5 counter spindleDiameter of spindle through hole: 52mm
Inner diameter of pull through hole: 40mm
A2-5 counter spindleDiameter of spindle through hole: 52mm
Inner diameter of pull through hole: 40mm
12 stations -power turret, Optional servo turret,
Electric Components
Standard with Schneider
Standard with Schneider
Packing&Shipping
1.Port: Qingdao port or Shanghai port
2.Payment method: T/T, L/C, D/P, D/D etc.
3.Payment: 30% T/T as deposit, 70% balance shall be paid before shipment.
4.Delivery time: 30 days after receive the 30%T/T deposit.
2.Payment method: T/T, L/C, D/P, D/D etc.
3.Payment: 30% T/T as deposit, 70% balance shall be paid before shipment.
4.Delivery time: 30 days after receive the 30%T/T deposit.
5.Non-fumigation packaging, we use seaworthy plywood.
6. Steel base plate, it is stronger 3-5 times than normal plywood base plate.
7.Water-proof and damp proof, water resistant film wraped all the machine.
8.Fully sheathed case,prevention of collision and keep the goods intact.
6. Steel base plate, it is stronger 3-5 times than normal plywood base plate.
7.Water-proof and damp proof, water resistant film wraped all the machine.
8.Fully sheathed case,prevention of collision and keep the goods intact.
Certifications
All products are available upon request, with or without trademarks. If you need OEM service with your own brand or product, please let us know. If you have any other specific requirements, please feel free to contact us. Our factory has obtained the import and export license issued by the Ministry of foreign trade, and passed the iso9001 quality management system certification and CE certification. In the quality layer by layer, we will wholeheartedly serve for the majority of customers.
Customer Photos
We welcome customers to visit the factory, we will let you buy, we will have customers to visit the factory and customers online purchase feedback, through feedback learning experience, continuous progress, better service for you. Shandong HR is willing to unremitting pursuit and efforts, hand in hand with merchants to create a brilliant future
