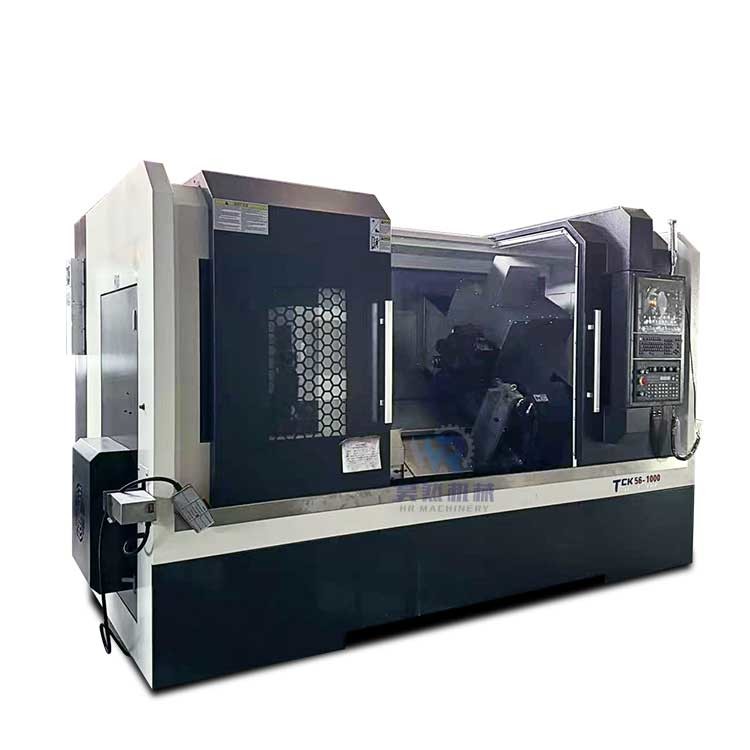

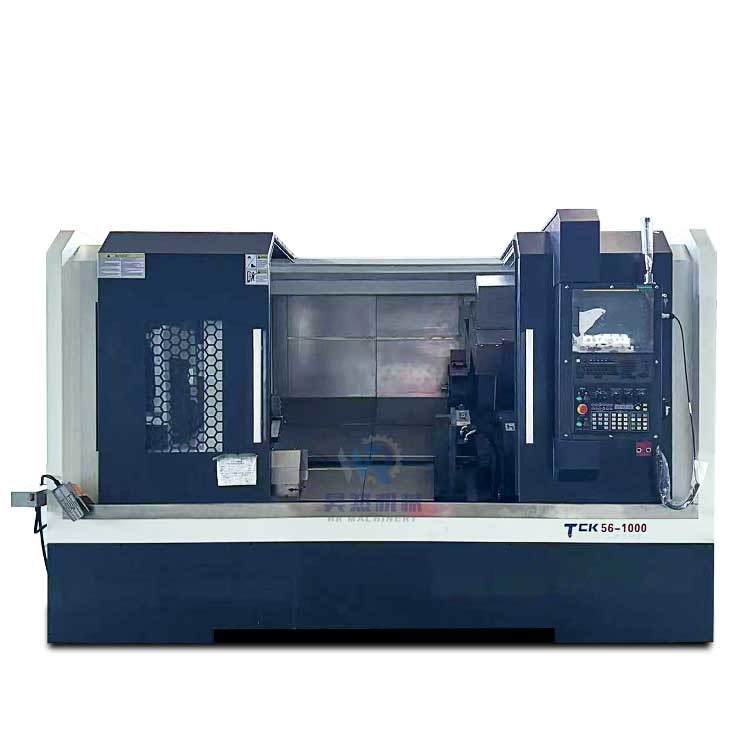

TCK56 CNC Lathe Machine Slant Bed Lathe Living Turret

  • TCK56 CNC Lathe Machine Slant Bed Lathe Living Turret
  • TCK56 CNC Lathe Machine Slant Bed Lathe Living Turret
Place of Origin CHINA
Brand Name HR
Certification CE
Model Number TCK56
Minimum Order Quantity 1 set
Packaging Details Standard material packaging
Delivery Time 30 working days
Payment Terms T/T, Western Union
Supply Ability 100 sets/month
Product Details
Voltage 3 PHASE 380V 50HZ,380V( As Customer Required ) Automatic Grade Automatic
Power(w) 4.0/5.5/7.5kw Condition New
Max. Swing Diameter 600 Mm Cnc Or Not CNC
Type Horizontal,TURNING CENTER After-sales Service Provided Engineers Available To Service Machinery Overseas
Warranty 1 Year Spindle Bore 60mm
Spindle Speed 150-2500rpm Color Can Be Free To Choose
Max. Spindle Speed (r.p.m) 2500rpm Machine Type Horizontal CNC Lathe Mchine
Product Name Economic Type Hydraulic Seals CNC Lathe Machine Year New
Control System SIEMENS GSK FANUC (optional)
Highlight

Slant Bed CNC Lathe Machine

,

Living Turret CNC Lathe Machine
Leave a Message
Product Description
Product Description


TCK56 CNC Lathe Machine Slant Bed Lathe Living Turret 0

  •

  • Introduction
TCK56 series multi-function CNC lathe, the bed adopts box structure and strong cast iron (HT-300), one-piece molding casting technology, and is completed by machining center clamping. Therefore, it has the characteristics of strong overall rigidity, good accuracy retention of machine tools, and high reliability in use.


Specification

Unit

TCK56

Work Capability

Max swing over bed Dia.

mm

Φ640

Max swing over the cross slide Dia.

mm

Φ280

Max cutting length

mm

540

Max turning diameter

mm

Φ540

Spindle

Hydraulic chuck size

mm

10''

Spindle nose

/

A2-6

Spindle taper/diameter

mm

Φ 66

Spindle speed

r/min

20-3500

Main motor power

kW

11

Tail stock

Tail stock sleeve dia./travel

mm

480

Sleeve taper

MT No.

MT-5

Body

Bed angle

DEG

45 °

Travel range for X/Z

mm

280/700

Fast feeding speed X/Z

m/min

24/24

Servo motor torque X/Z

Nm

15/15

Servo motor power

kw

2./2.3

Turret

Nos.

/

12

Tools size

mm

25×25/Φ32

Y axis travel range

mm

+_50



Dimension size

mm

3400X2060x2100



Weight

kg

4200


TCK56 CNC Lathe Machine Slant Bed Lathe Living Turret 1
TCK56 CNC Lathe Machine Slant Bed Lathe Living Turret 2

Details Images


TCK56 CNC Lathe Machine Slant Bed Lathe Living Turret 3

  •

    •

    •

    •

    • 45 Degree Machine structure



1. Special structure more stronger
2. Heavy loading capacity
3. Easy metal chips falling down


  •

  •

  •

  • HYDRAULIC CHUCK

Standard with hollowhydraulic chuck,Chinesebrand or Taiwan brand

TCK56 CNC Lathe Machine Slant Bed Lathe Living Turret 4


TCK56 CNC Lathe Machine Slant Bed Lathe Living Turret 5

  •

    •

    •

    •

    • Hydraulic tailstock



1. Standard with hydraulic tailstock
2. Can choose Programmable tailstock driven by servo motor


  •

  •

  •

  • Linear rails

X Z axis Adopts Taiwan Linear rails

High speed , High accuracy

TCK56 CNC Lathe Machine Slant Bed Lathe Living Turret 6


TCK56 CNC Lathe Machine Slant Bed Lathe Living Turret 7

  •

    •

    •

    •

    • Automatic chip conveyor



Easy metal chips remover
Save time and energy
Can choose with extra cost
