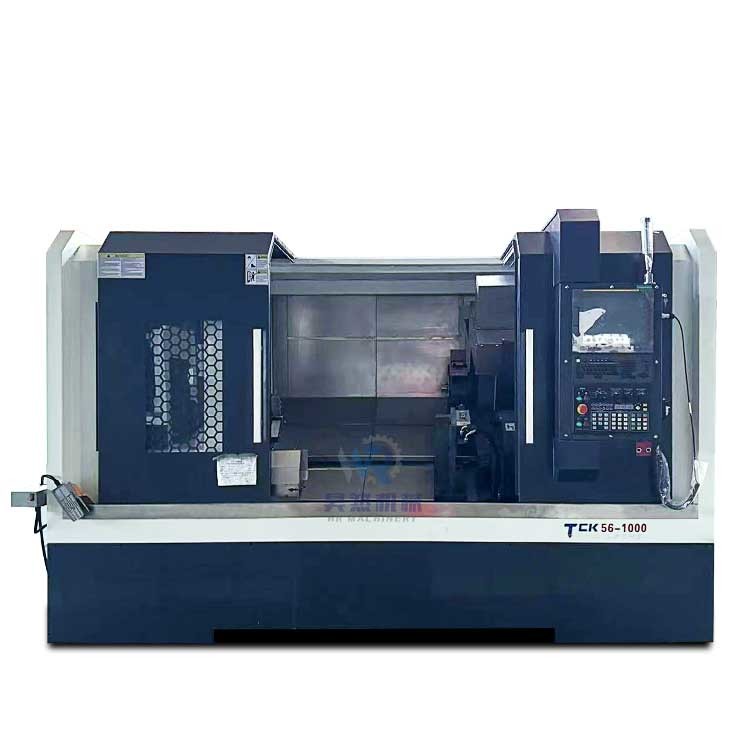

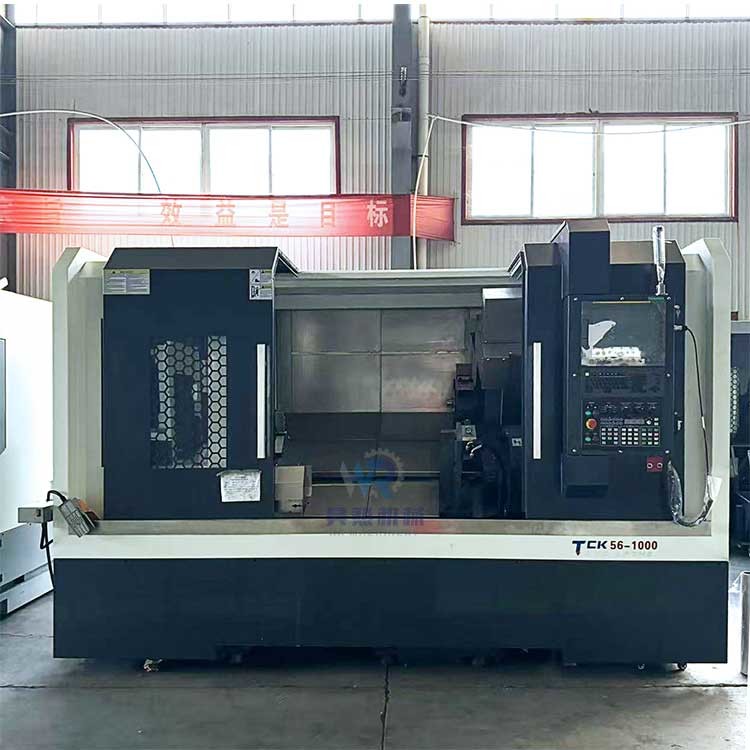

Horizontal Tck56-1000 Slant Bed Cnc Lathe Machine High Precision

  • Horizontal Tck56-1000 Slant Bed Cnc Lathe Machine High Precision
  • Horizontal Tck56-1000 Slant Bed Cnc Lathe Machine High Precision
Place of Origin SHANDONG
Brand Name HR
Certification CE
Model Number TCK56-1000
Minimum Order Quantity 1 SET
Price 24800USD
Packaging Details Standard configuration packaging
Delivery Time 30 work days
Payment Terms T/T, D/P
Supply Ability 100 sets/month
Product Details
Max Cutting Length 750MM/1000mm Working Roughness Ra1.6um
Type Horizontal Key Word CNC Turning Lathe Machine Center
X-Axis Travel 200mm Export Markets Global
Usage Metal Parts Machining Core Components Bearing, Pump, Gear, Other
Cnc Or Not CNC Lathe Machine Tool Post Stations 12
Swing Over Bed 640mm Voltage 220V
Year 2022 Z Axis Travel 380mm
Highlight

Horizontal slant bed cnc lathe machine

,

Precision slant bed cnc lathe machine

,

High Precision slant bed cnc lathe
Leave a Message
Product Description
Product Description


Horizontal Tck56-1000 Slant Bed Cnc Lathe Machine High Precision 0

  •

  • Introduction
TCK56 series multi-function CNC lathe, the bed adopts box structure and strong cast iron (HT-300), one-piece molding casting technology, and is completed by machining center clamping. Therefore, it has the characteristics of strong overall rigidity, good accuracy retention of machine tools, and high reliability in use.


Specification

Unit

TCK56

Work Capability

Max swing over bed Dia.

mm

Φ640

Max swing over the cross slide Dia.

mm

Φ280

Max cutting length

mm

540

Max turning diameter

mm

Φ540

Spindle

Hydraulic chuck size

mm

10''

Spindle nose

/

A2-6

Spindle taper/diameter

mm

Φ 66

Spindle speed

r/min

20-3500

Main motor power

kW

11

Tail stock

Tail stock sleeve dia./travel

mm

480

Sleeve taper

MT No.

MT-5

Body

Bed angle

DEG

45 °

Travel range for X/Z

mm

280/700

Fast feeding speed X/Z

m/min

24/24

Servo motor torque X/Z

Nm

15/15

Servo motor power

kw

2./2.3

Turret

Nos.

/

12

Tools size

mm

25×25/Φ32

Y axis travel range

mm

+_50



Dimension size

mm

3400X2060x2100



Weight

kg

4200


Horizontal Tck56-1000 Slant Bed Cnc Lathe Machine High Precision 1
Horizontal Tck56-1000 Slant Bed Cnc Lathe Machine High Precision 2

Details Images


Horizontal Tck56-1000 Slant Bed Cnc Lathe Machine High Precision 3

  •

    •

    •

    •

    • 45 Degree Machine structure



1. Special structure more stronger
2. Heavy loading capacity
3. Easy metal chips falling down


  •

  •

  •

  • HYDRAULIC CHUCK

Standard with hollowhydraulic chuck,Chinesebrand or Taiwan brand

Horizontal Tck56-1000 Slant Bed Cnc Lathe Machine High Precision 4


Horizontal Tck56-1000 Slant Bed Cnc Lathe Machine High Precision 5

  •

    •

    •

    •

    • Hydraulic tailstock



1. Standard with hydraulic tailstock
2. Can choose Programmable tailstock driven by servo motor


  •

  •

  •

  • Linear rails

X Z axis Adopts Taiwan Linear rails

High speed , High accuracy

Horizontal Tck56-1000 Slant Bed Cnc Lathe Machine High Precision 6


Horizontal Tck56-1000 Slant Bed Cnc Lathe Machine High Precision 7

  •

    •

    •

    •

    • Automatic chip conveyor



Easy metal chips remover
Save time and energy
Can choose with extra cost





Horizontal Tck56-1000 Slant Bed Cnc Lathe Machine High Precision 8
