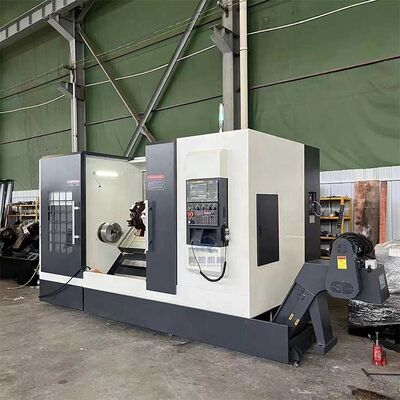

China Metal TCK56 Slant Bed CNC Lathe Machine Hydraulic Chuck And Tailstock Y Axis
Brand Name:
HR
Model Number:
TCK56
Place of Origin:
China
Certification:
CE ISO
Minimum Order Quantity:
1set
Price:
usd 19000-40000
Supply Ability:
40set/month
Product Details
| Parameter: | TCK56 | Max Swing Over Bed Dia.（mm）: | Φ560 |
|---|---|---|---|
| Max Swing Over Cross Slide Dia.（mm）: | Φ330 | Max Cutting Length（mm）: | 500 |
| X Axis Travel（mm）: | 270 | Z Axis Travel（mm）: | 700 |
| X、Z Axis Feed Speed（m/min）: | 30/36 | Spindle Bore Dia（mm）: | Φ62 |
| Highlight |
Hydraulic slant bed cnc lathe machine,Y Axis slant bed cnc lathe machine,Hydraulic slant bed cnc lathe |
||
Product Description
Product Introduction
The TCK56 Chinese high quality hot sales CNC slant bed cnc lathe machine cnc bar automatic lathe product is a semi-closed slant-bed turning and milling machine with X, Y, Z and C axes servo control. The structure and external dimensions are compact and reasonable. The spindle (C axis) is driven by a servo motor. It can realize the turning of the outer circle, the end surface and the thread of various materials, such as shafts and discs, and various surface milling and drilling in radial and axial directions, and is suitable for efficient machining of small parts.
Details Images
HT300 integrated bed Using HT300 cast iron, the internal reinforcing ribs are arranged reasonably, with high strength and good shock absorption,ensuring more stable stress during load cutting. making the basic components of the machine tool highly rigid and ensuring the stability of the machine tool for long-term use.
Packing&Shipping
1.Port: Qingdao port or Shanghai port
2.Payment method: T/T, L/C, D/P, D/D etc.
3.Payment: 30% T/T as deposit, 70% balance shall be paid before shipment.
4.Delivery time: 30 days after receive the 30%T/T deposit.
2.Payment method: T/T, L/C, D/P, D/D etc.
3.Payment: 30% T/T as deposit, 70% balance shall be paid before shipment.
4.Delivery time: 30 days after receive the 30%T/T deposit.
5.Non-fumigation packaging, we use seaworthy plywood.
6. Steel base plate, it is stronger 3-5 times than normal plywood base plate.
7.Water-proof and damp proof, water resistant film wraped all the machine.
8.Fully sheathed case,prevention of collision and keep the goods intact.
6. Steel base plate, it is stronger 3-5 times than normal plywood base plate.
7.Water-proof and damp proof, water resistant film wraped all the machine.
8.Fully sheathed case,prevention of collision and keep the goods intact.
Certifications
All products are available upon request, with or without trademarks. If you need OEM service with your own brand or product, please let us know. If you have any other specific requirements, please feel free to contact us. Our factory has obtained the import and export license issued by the Ministry of foreign trade, and passed the iso9001 quality management system certification and CE certification. In the quality layer by layer, we will wholeheartedly serve for the majority of customers.
Customer Photos
We welcome customers to visit the factory, we will let you buy, we will have customers to visit the factory and customers online purchase feedback, through feedback learning experience, continuous progress, better service for you. Shandong HR is willing to unremitting pursuit and efforts, hand in hand with merchants to create a brilliant future
Company Introduction
Shandong HR machine Co., Ltd. is a production-oriented enterprise with import and export rights. We are located in shandong provice.We are one of professional cnc lathe machine, cnc milling machine and swiss lathe machine manufacturer in china.We founded our fast lathe machine factory in 1996 in tengzhou City to produce center lathe and univesal milling machine for over 20 years development,we build three factories.One is for cnc lathe production one for cnc milling production. We imported advanced production technology and R&D team from Korean in 2001 and build our third factory forswiss lathe machine production.We own about 500 wokers and 40 engineers, more than 5000 square meter .
Product Highlights
Product Introduction The TCK56 Chinese high quality hot sales CNC slant bed cnc lathe machine cnc bar automatic lathe product is a semi-closed slant-bed turning and milling machine with X, Y, Z and C axes servo control. The structure and external dimensions are compact and reasonable. The spindle (C ...
