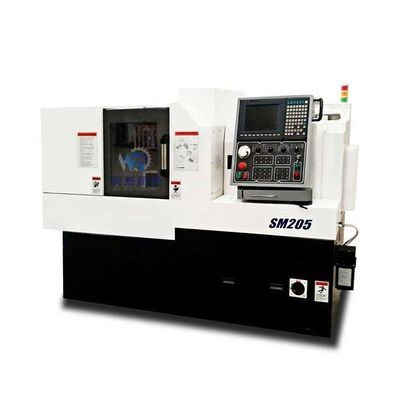

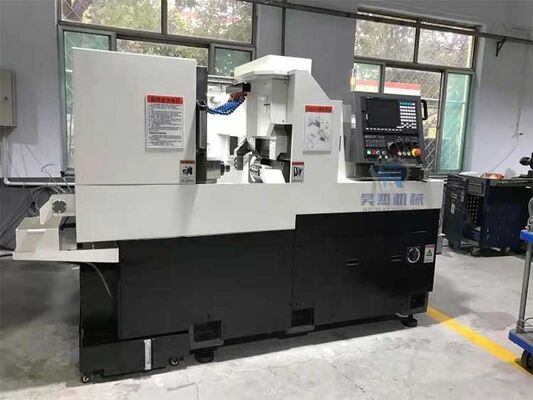

SM205 Swiss Type Automatic Cnc Horizontal Lathe Machine White
Product Details
| Voltage: | 380V,3 PHASE 380V 50HZ,380V( As Customer Required ) | Automatic Grade: | Automatic,Semi-automatic |
|---|---|---|---|
| Power(w): | 4KW,7.5kw | Condition: | New |
| Max. Swing Diameter: | 400mm,320mm | Weight: | 1650/1700kg |
| Highlight |
Swiss cnc horizontal lathe machine,White cnc horizontal lathe machine,Swiss horizontal cnc lathe machine |
||
Product Description
1.Arrangement of tooling:13 fixed tools and 9 live tools among 22 tools can handle complex processing.
2.Fanuc system: Stability self diagnostician(chucking,ejector, oil cooling,cut, tool breakdown).
3.Front end tool:5 fixed tools in front end tool, 4 live tools in cross drill,6 fixed tools in bite tool.
4.Back-end fixed tool:1 fixed tool and 3 live tools.
5. Toggle system: Lt is possible to maintain continuous process without toggle’s damage.
6.Off-center tool:1 fixed tool and 2 live tools,finished parts by our machine tools
2.Payment method: T/T, L/C, D/P, D/D etc.
3.Payment: 30% T/T as deposit, 70% balance shall be paid before shipment.
4.Delivery time: 30 days after receive the 30%T/T deposit.5.Non-fumigation packaging, we use seaworthy plywood.
6. Steel base plate, it is stronger 3-5 times than normal plywood base plate.
7.Water-proof and damp proof, water resistant film wraped all the machine.
8.Fully sheathed case,prevention of collision and keep the goods intact.
brand strategy and expand foreign market; Control the manufacturing level of company equipment. Formed by CNC lathe, CNC milling machine, vertical machining center, gantry machining center, CNC metal band sawing machine, drilling and milling machine series, milling machine series, turret milling machine series, more than ten categories, hundreds of varieties of production scale. It has achieved the expected goal of CNC product serialization and characteristic product individuation, and formed its own brand while
meeting the personalized needs of users.
4. The warranty period of the whole machine is 1 year. Under normal use, if the machine parts are damaged during the warranty period, we will provide free accessories. Outside the warranty period, if the parts are damaged, we only charge the cost price of the parts, and will never overcharge.
5. Provide lifetime free technical support, you can contact us at any time if you encounter difficulties in the process of use.
6. We provide overseas services, engineers can go to the customer's factory for debugging,installation, maintenance, and repair.(In case of non-epidemic situation).
