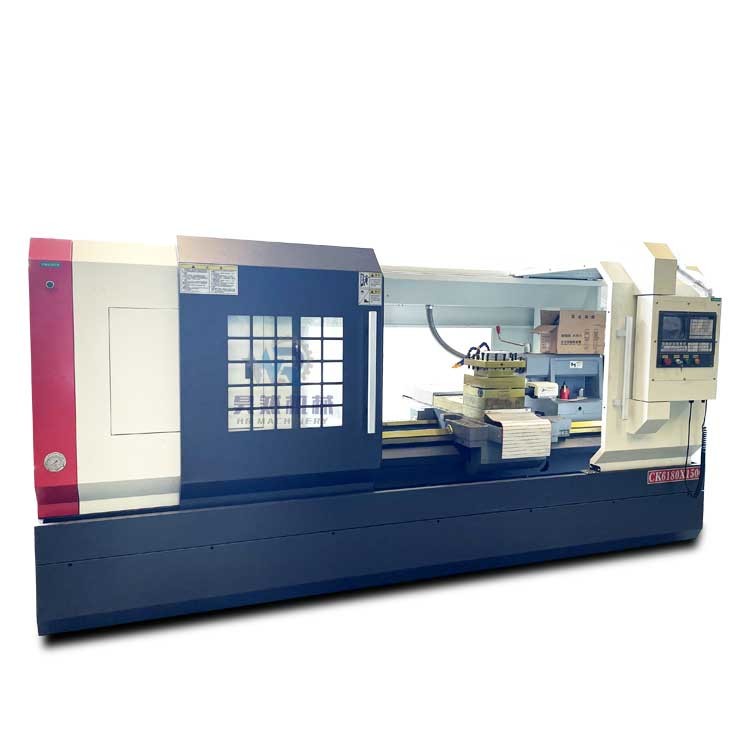

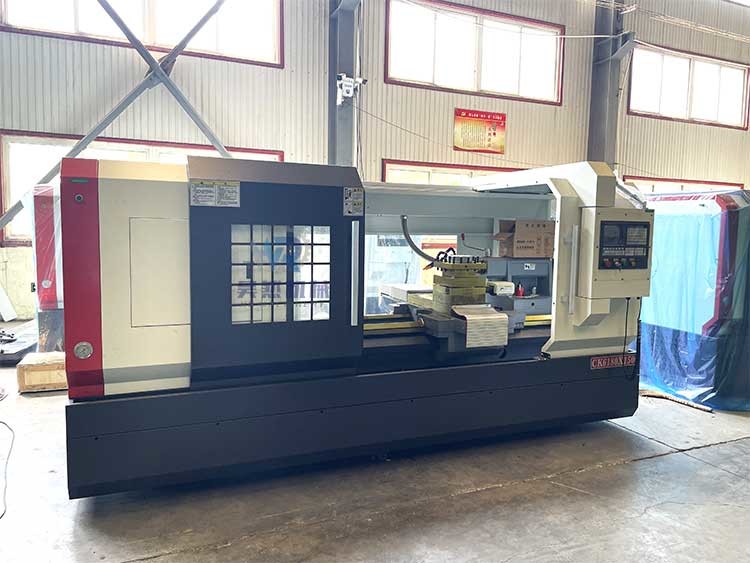

Ck6180 Cnc Lathe Machine High precision high strength

  • Ck6180 Cnc Lathe Machine High precision high strength
  • Ck6180 Cnc Lathe Machine High precision high strength
Place of Origin Shandong,China
Brand Name HR
Certification CE
Model Number ck6180
Minimum Order Quantity 1 sets
Price $28200 1set
Packaging Details WOODEN CASE
Delivery Time 30 days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 40sets months
Product Details
Voltage 380V,3 PHASE 380V 50HZ Size Ck6180
Axis Motors High Torque Bar Feeder Yes
Chip Conveyor Yes Control System GSK Fanuc
Coolant System Yes Machine Type CNC Lathe Machine
Spindle Motor High Torque Tailstock Yes
Axis Travel 1000/2000/3000 Chuck Size According To Customization
Spindle Nose Low Noise Spindle Orientation Horizontal Direction
Spindle Speed High Tool Capacity Turning
Turret Type 4/6/8
Highlight

Vertical CNC Machining Center 4 Axis

,

Vmc1690 CNC Machining Center

,

Vertical High Torque CNC Lathe Machine
Leave a Message
Product Description
Chinese Factory Exporting Type Big Size
Heavy Duty CNC Lathe Model CK6180

Product Description

CNC Lathe Features
1.A high strength, widening the crriage, suitablefor heavy cutting
2.Four position electricturret
3.Frequency conversion stepless speed regulation
4.Standard configuration: manual chuck
5.Optional configuration:hydraulic chuck
Ck6180 Cnc Lathe Machine High precision high strength 0

CNC Lathe use
The machine tool is automatically controlled by the CNC control system to perform various inner holes, outer circles, conical surfaces, arc surfaces, and thread turning. It is especially suitable for rough and fine machining of shafts and disc parts in small and medium batches, with a degree of automation High, simple programming, high precision and other advantages.

Parameter List

Max. swing over bed (mm)
φ800mm
Max. swing dia. over cross slide(mm)
φ500mm
Max.processing length(mm)
1000/1500/2000/3000mm
Form
Four gears No grade to change frequency
Range of spindle speed(r/min)
25-850 rpm
The spindle terminal structure
C11
Diameter of spindle bore (mm)
φ105mm
The taper of spindle front-end
(Metric)120 1:20
Power of main motor (KW)
11KW
Processing accuracy(mm)
IT6-IT7
Surface roughness
Ra1.6
Sleeve diameter of tailstock (mm)
φ100mm
Sleeve travel of tailstock (mm)
250
Cone hole taper of tailstock’s sleeve
MT6
Standard configuration
Four-station vertical electrical knife rest
Restting accuracy (mm)
0.01mm
Length of section of knife handle (mm)
30×30
Length*width*height
3300/3800/4300 ×1940 ×1800mm
Net weight (Kg)
4100/4500kg/5500kg
Ck6180 Cnc Lathe Machine High precision high strength 1
Ck6180 Cnc Lathe Machine High precision high strength 2
Detailed Images
Ck6180 Cnc Lathe Machine High precision high strength 3


Precision chuck
* Fast clamping product rotation at the same time for processing
* Optional hydraulic chuck



CNC tool rest
* Standard configuration 4 knife position
* Can be selected according to the requirements of 6 knife position, 8 knife position
Ck6180 Cnc Lathe Machine High precision high strength 4
Ck6180 Cnc Lathe Machine High precision high strength 5



Numerical Control System
* Assembly of wide numerical control system, but also optional other numerical control system


Tailstock
*Tailseat Tailframe body can be easily pushed and pulled from left to right.
*High precision, strong bearing capacity, reliable operation and so on. The sleeve is quenched and finely ground.
Ck6180 Cnc Lathe Machine High precision high strength 6
Certificate
All products are available upon request, with or without trademarks. If you need OEM service with your own brand or product, please let us know. If you have any other specific requirements, please feel free to contact us. Our factory has obtained the import and export license issued by the Ministry of foreign trade, and passed the iso9001 quality management system certification and CE certification. In the quality layer by layer, we will wholeheartedly serve for the majority of customers.

Ck6180 Cnc Lathe Machine High precision high strength 7
Ck6180 Cnc Lathe Machine High precision high strength 8
Company Introduction
Shandong HR machine Co., Ltd. is a production-oriented enterprise with import and export rights. The company is equipped with many kinds of machine tools and equipment, including nearly 100 sets of large, fine and sophisticated equipment. The enterprise has 100 employees at present, including more than 10 engineers and dozens of workers and technicians. The company has been insisting on staff training for many years, through changing staff concepts, implementing enterprise reform, introducing new management concepts and methods, using modern management level. The company has hundreds of sales outlets, more than one sales branch or office, 30 provinces, cities, autonomous regions. In Europe, South America, Asia, Hong Kong and other countries and regions have long-term cooperation dealers. In recent years, the company insists on changing the mode and adjusting the structure; Implement brand strategy and expand foreign market; Control the manufacturing level of company equipment. Formed by CNC lathe, CNC milling machine, vertical machining center, gantry machining center, CNC metal band sawing machine, drilling and milling machine series, milling machine series, turret milling machine series, more than ten categories, hundreds of varieties of production scale. It has achieved the expected goal of CNC product serialization and characteristic product individuation, and formed its own brand while meeting the personalized needs of users.
Ck6180 Cnc Lathe Machine High precision high strength 9
Packing&Shipping
1.Port: Qingdao port or Shanghai port
2.Payment method: T/T, L/C, D/P, D/D etc.
3.Payment: 30% T/T as deposit, 70% balance shall be paid before shipment.
4.Delivery time: 30 days after receive the 30%T/T deposit.5.Non-fumigation packaging, we use seaworthy plywood.
6. Steel base plate, it is stronger 3-5 times than normal plywood base plate.
7.Water-proof and damp proof, water resistant film wraped all the machine.
8.Fully sheathed case,prevention of collision and keep the goods intact.
Ck6180 Cnc Lathe Machine High precision high strength 10
Customer Visiting
Every year we have customers from all over the world to visit our factory, we will introduce our products to customers in detail.
Ck6180 Cnc Lathe Machine High precision high strength 11
Our services
Ck6180 Cnc Lathe Machine High precision high strength 12
Our services
1. We supply 24 hours on-line service,you could contact with us by email ,phone ,wechat ,whatsapp,skype etc.
2. Received your phone or mail,we will Analyze the problem immediately.
3.Supply professional solution, after analyze the problem, we give you our best solution.
4. The warranty period of the whole machine is 1 year. Under normal use, if the machine parts are damaged during the warranty period, we will provide free accessories. Outside the warranty period, if the parts are damaged, we only charge the cost price of the parts, and will never overcharge.
5. Provide lifetime free technical support, you can contact us at any time if you encounter difficulties in the process of use.
6. We provide overseas services, engineers can go to the customer's factory for debugging,installation, maintenance, and repair.(In case of non-epidemic situation).
