Vmc1160 Horizontal Cnc Vertical Machining Center Machine Manufacturers

  • Vmc1160 Horizontal Cnc Vertical Machining Center Machine Manufacturers
  • Vmc1160 Horizontal Cnc Vertical Machining Center Machine Manufacturers
Place of Origin china
Brand Name HR
Certification ceiso
Model Number vmc1160
Minimum Order Quantity 1set
Price 19000-40000usd
Packaging Details wooden packing
Delivery Time 30day
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 40set/month
Product Details
Model VMC1160 Table Size (mm) 1200*600
Max. Allowable Load (Kg) 800 X-axis Stroke (mm) 1100
Y-axis Travel (mm) 600 Z-axis Travel (mm) 600
T-slot 5-18*100 Spindle Speed (r/min) 8000
Highlight

Vmc1160 vertical machining center machine

,

Vmc vertical machining center machine

,

Vmc1160 cnc horizontal machining center manufacturers
Leave a Message
Product Description

Vmc1160 Horizontal Cnc Vertical Machining Center Machine Manufacturers

Item
VMC840
VMC850
vmc855
VMC1160
VMC1270
VMC1370
VMC1580
Size of worktable(length×width)mm
1000*400
1000*500
1000*550
1200*600
1400*700
1460*700
1700*800
T slot (mm)
5-18*100
5-18*100
5-18*90
5-18*100mm
5-18*115
5-22*140
5-22*150
Max loading weight on worktable
500KG
600kg
600kg
1000kg
1000kg
1400
1500
X-Axis travel(mm)
800
800
800
1000
1200
1300
1500
Y-Axis travel(mm)
400
500
550
600
700
700
800
Z-Axis travel(mm)
500
500
500
600
700
700
700
Distance between spindle nose and table
105-550
105-605mm
120-620mm
100-700mm
130-830mm
160-860mm
170-840
Distance between spindle
center and column(mm)
450
550
540
667
767
775
810
Spindle taper
BT40
BT40
BT40
BT40
BT50
Max. spindle speed( rpm)
8000/10000/12000
Spindle motor power(Kw)
5.5KW
7.5/11kw
7.5/11kw
11/15kw
11/15kw
15/18.5kw
18.5kw
Rapid feeding speed: X,Y,Z axis m/min
16/16/16 (24/24//24 liner guidway)





Fast cutting speed m /min
10m/min





Positional accuracy
±0.005 mm
±0.005 mm
±0.005 mm
±0.005 mm
±0.005 mm
±0.0075 mm
±0.01 mm
Repeat positional accuracy
±0.003 mm
±0.003 mm
±0.003 mm
±0.003 mm
±0.003 mm
±0.005 mm
±0.005mm
Auto Tool changer type
16 tools head type tool changer(optional 24 arm type auto tool changer)





Max. tool length
300mm



Max. Tool diameter
Φ80(adjacent tool)/φ150(not adjacent tool)



Max.tool weight
8kg



Tool changing time(tool-to-tool)
7sec



Air pressure
0.6 Mpa



Machine weight
4200KG
5500KG
5800
7500KG
9000KG
10000KG
13000KG
Overall sizse(mm)
2600*2300*2300
2600*2300*2300
2800*2400*2400
3340*2800*2700
3800*3000*2650
3870*3165*2920
4300*3200*3100
Vmc1160 CNC milling machine It can realize the one-time clamping of various complex parts such as discs, plates, shells, cams and molds, and can complete the processing of various processes such as drilling, milling, boring, expanding, reaming and rigid tapping. It is suitable for the production of multi variety, medium and small batch products, and can meet the processing of complex and high-precision parts.Vmc1160 CNC milling machine
Product Details

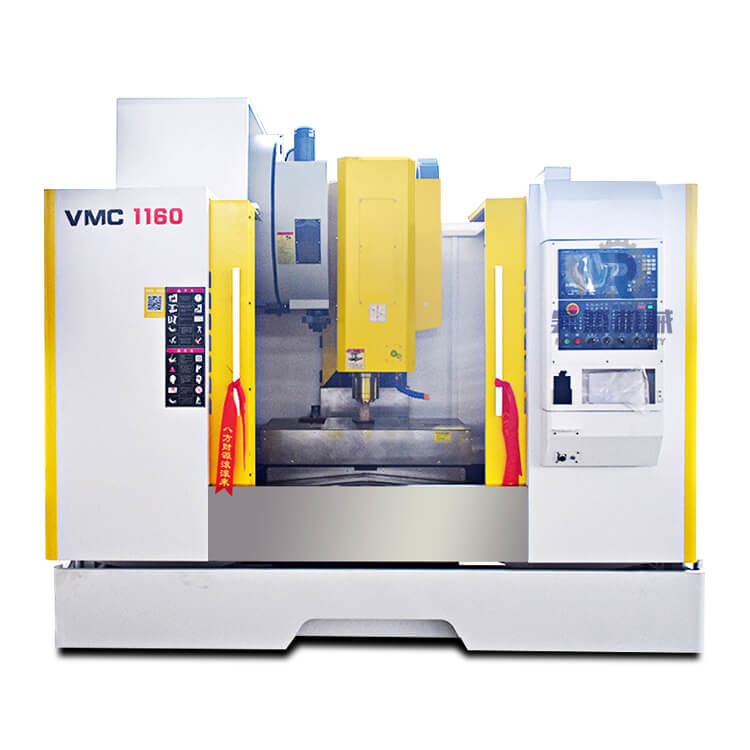

Vmc1160 Horizontal Cnc Vertical Machining Center Machine Manufacturers 0

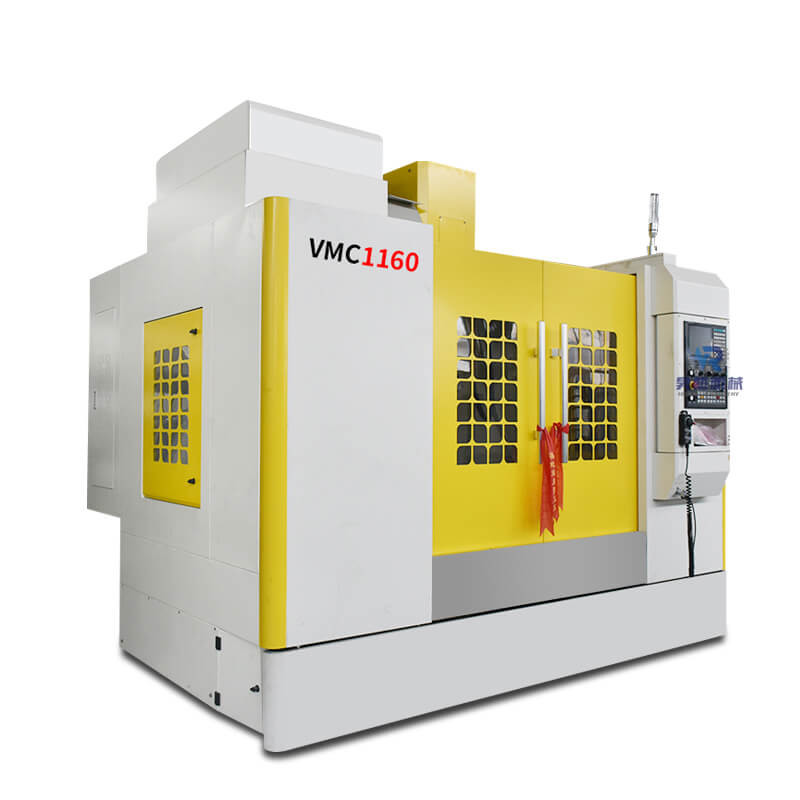

Vmc1160 Horizontal Cnc Vertical Machining Center Machine Manufacturers 1

The basic parts are molded with resin sand and aging treatment, which provides a guarantee for the stability of the long-term service performance of the machine tool.
sample
Vmc1160 Horizontal Cnc Vertical Machining Center Machine Manufacturers 2
it is widely used to produce the auto spare
parts, medical treatment instrument and any kind of injection
mould, blowing mould, die-casting mould, car LED mould, toy mould and precise mould and o on.

Packaging＆Shipping
Vmc1160 Horizontal Cnc Vertical Machining Center Machine Manufacturers 3

Packaging Details:
1. Outside package: Standard marine export plywood case.
2. Inner package: Stretchy film and plastic film for humidity. We can package according to your requests. Delivery Detail: Shipped in 30 working days after payment.
