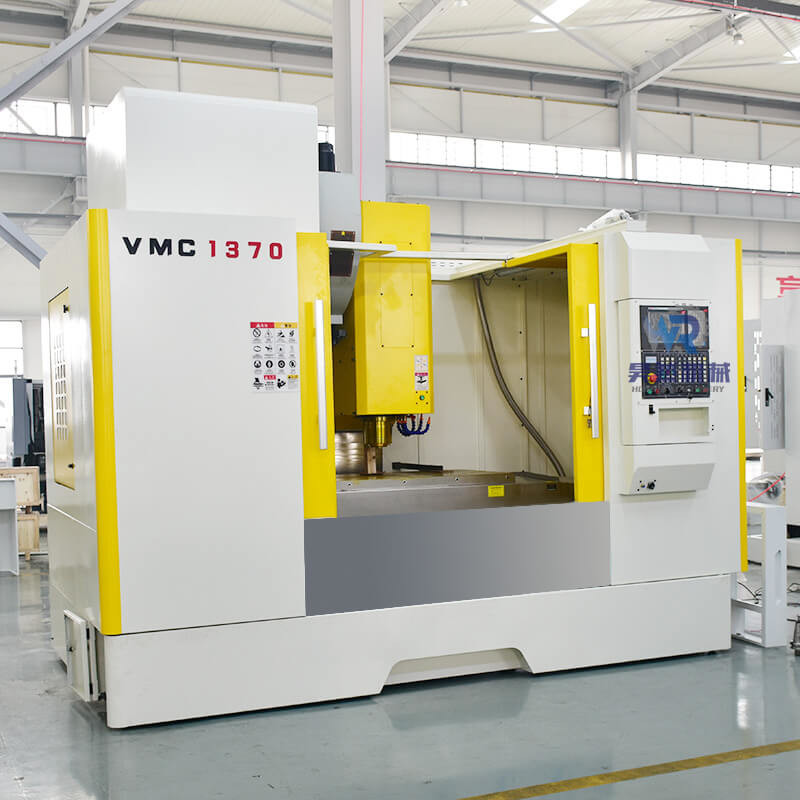

4axis Small Horizontal Machining Center CNC Vertical Milling Center Vmc1370
| Place of Origin | China |
|---|---|
| Brand Name | HR |
| Certification | CE ISO |
| Model Number | vmc 1370 |
| Minimum Order Quantity | 1 |
| Price | 26700$-32000$ per one set |
| Packaging Details | wooden package |
| Delivery Time | After 15-30 Days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Trade Assurance |
| Supply Ability | 200 per a month |
Product Details
| Name | CNC Vertical Machining Center Vmc1370 4axis | Number Of Axes | 4 |
|---|---|---|---|
| Machining Capacity | Medium Duty | Range Of Spindle Speed(r.p.m) | 8000 - 12000 |
| No. Of Spindles | Single | Spindle Taper | BT40 |
| Positioning Accuracy (mm) | ±0.005 | Repeatability (X/Y/Z) (mm) | ±0.002 |
| Highlight | 4axis small horizontal machining center,Vmc1370 small horizontal machining center,4axis cnc vertical milling center |
||
Product Description
4axis Small Horizontal Machining Center CNC Vertical Milling Center Vmc1370
Product Paramenters
Product Description
Vertical Machining has been around in its most basic form for more than 150 years. Yet, it's still one of the newest forms of machining technology (turning/lathes is the oldest). The process of “milling” entails a rotating cutter, or drilling bit, and a movable work table, which the workpiece is affixed to. The cutter is attached to and rotated in a housing called the "spindle." Through the sharpness of the tool and force of the table pushing the material into the cutter, the material yields and is cut or shaved away as desired. The axis of force can be up/down (referred to as the Z-Axis) left/right (referred to as the X-Axis), or front to back (referred to as the Y-Axis).
Product Advantages
The advantages of Machining center
The main parts of machine tool in machining center are optimized by finite element analysis. The main cast iron is made of high strength cast iron with stable metal structure. Machining center high speed and high rigidity spindle unit combined with servo spindle motor; X/Y/Z adopts high torque servo motor. X/Y/Z adopts Taiwan high-precision high-strength ball screw with Japanese NSK bearing and high precision imported locking. X/Y/Z three-way guide rail adopts hard track design, fixed surface adopts ultra-high frequency quenching process after precision grinding; The sliding surface is made of high strength wear-resisting material with plastic tape. Y direction guide rail for four track design (including auxiliary guide rail) greatly increase the rigidity and strength of the machine tool.
Machine detection
Application Example
This VMC is suitable for mechanical processing and mold making .And it can adapt to the processing
requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling
,tapping,boring ,etc.
requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling
,tapping,boring ,etc.
Packaging＆Shipping
1. Outside package: Standard marine export plywood case.
2. Inner package: Stretchy film and plastic film for humidity. We can
package according to your requests. Delivery Detail: Shipped in 15-30 working days after payment.
package according to your requests. Delivery Detail: Shipped in 15-30 working days after payment.
Certifications
Exhibition
FAQ
1:How can I choose the most suitable machines ? A:Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .You can also send us the products drawing ,we will choose the most suitable machines for you .
2.How can I get a quotation? A:Directly inquiry on alibaba,with the detail you needed,we will reply in 1 hour on work days.Or you can send Email to us.
3.What is the delivery time and the package? A:Normally about 20 days.International logistics standard for transport machine tools,like wooden package.
4.Do you have any certification? A:Yes,we have CE
5. What is your trade terms? A : FOB, CFR and CIF all acceptable.
6. What's the Payment Terms ? A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight
7. What's the MOQ? A: 1 set
