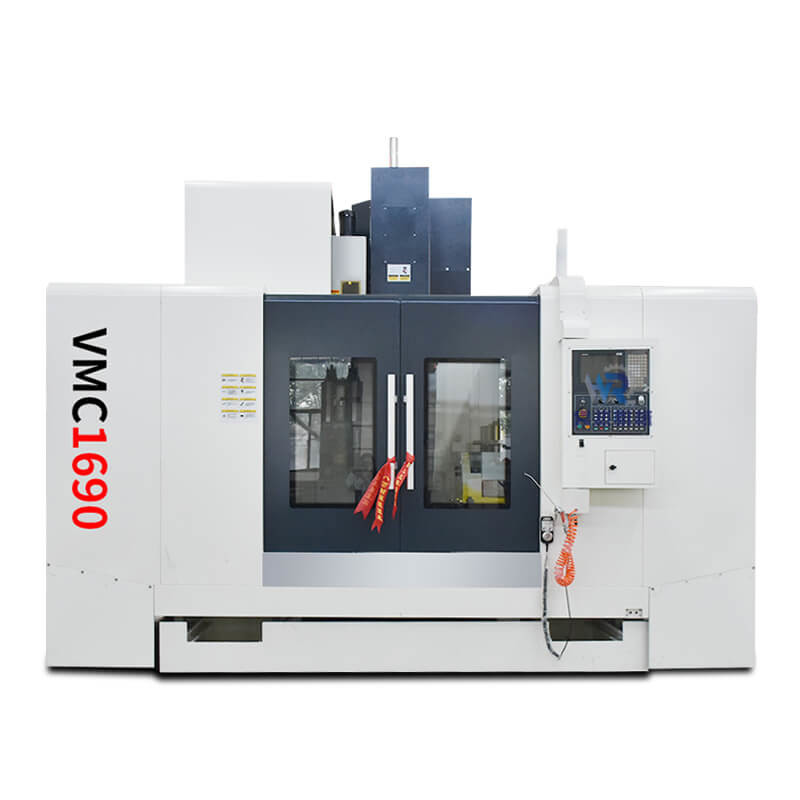

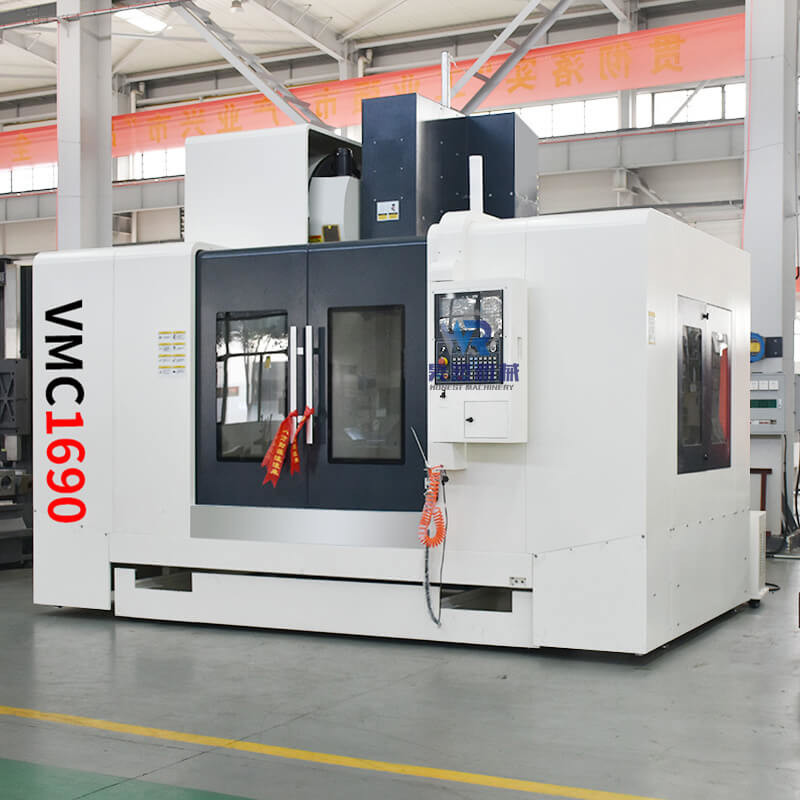

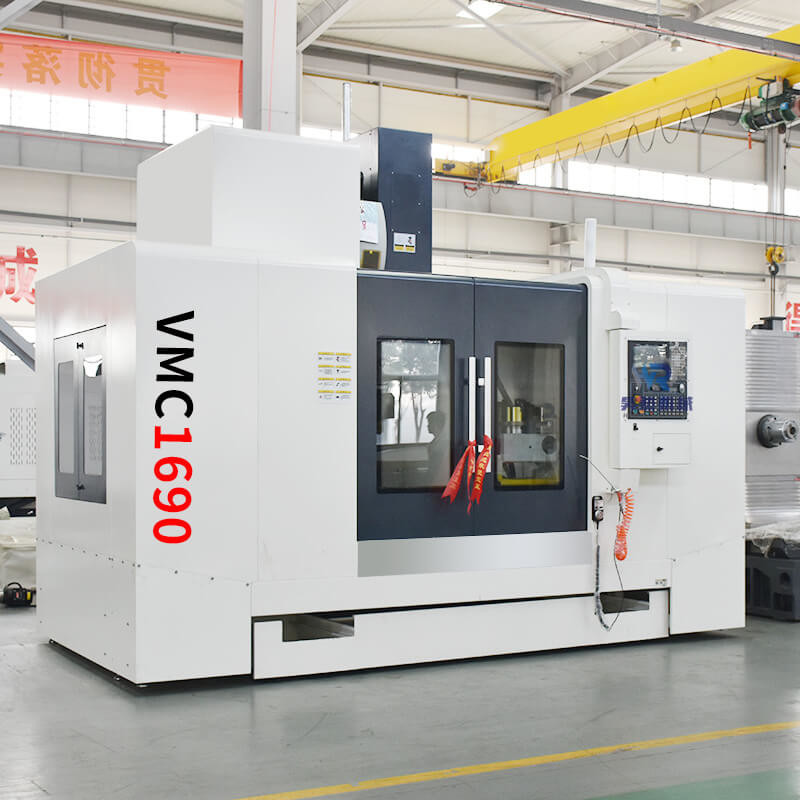

5 Axis High Precision VMC CNC Milling Machine Center Vmc1690
| Place of Origin | China |
|---|---|
| Brand Name | HR |
| Certification | CE ISO |
| Model Number | VMC1690 |
| Minimum Order Quantity | 1 Set |
| Price | 26700$-32000$ per one set |
| Packaging Details | Wooden Package |
| Delivery Time | After 15-30 Days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Trade Assurance |
| Supply Ability | 200 per a month |
Product Details
| Type | VERTICAL | Number Of Axes | 5 |
|---|---|---|---|
| Machining Capacity | Heavy Duty | Table Travel (X) (mm) | 1600 |
| Table Travel (Z) (mm) | 700 | Repeatability (X/Y/Z) (mm) | 0.005 |
| T Slot (mm) | 7-22-110 | Max. Spindle Speed( Rpm | 12000 |
| Highlight | 5 Axis VMC CNC Milling Machine,Precision VMC CNC Milling Machine,5 Axis cmc and vmc machines |
||
Product Description
Vertical Machining has been around in its most basic form for more than 150 years. Yet, it's still one of the newest forms of machining technology (turning/lathes is the oldest). The process of “milling” entails a rotating cutter, or drilling bit, and a movable work table, which the workpiece is affixed to. The cutter is attached to and rotated in a housing called the "spindle." Through the sharpness of the tool and force of the table pushing the material into the cutter, the material yields and is cut or shaved away as desired. The axis of force can be up/down (referred to as the Z-Axis) left/right (referred to as the X-Axis), or front to back (referred to as the Y-Axis).
Product Description
Product Paramenters
|
Model
|
VMC650
|
VMC840
|
VMC850
|
VMC855
|
VMC966 I
|
VMC1050
|
|
Table size (mm)
|
1000x400
|
1000x400
|
1000x500
|
1000x550
|
1100x550
|
1200x420
|
|
Max. allowable load (Kg)
|
400
|
300
|
500
|
500
|
600
|
500
|
|
X-axis stroke (mm)
|
650
|
800
|
800
|
800
|
900
|
1000
|
|
Y-axis travel (mm)
|
400
|
400
|
500
|
550
|
600
|
500
|
|
Z-axis travel (mm)
|
550
|
550
|
500
|
550
|
600
|
550
|
|
T-slot
|
3-18-120
|
3-18-140
|
5-18-108
|
5-18-90
|
5-18-100
|
5-18-100
|
|
spindle center to Z-axis guide surface (mm)
|
485
|
445
|
552
|
590
|
663
|
)575
|
|
spindle end face to work table (mm)
|
100-650
|
100-650
|
110-610
|
120-670
|
100-700
|
100-650
|
|
Spindle taper hole
|
BT40-120
|
BT40-120
|
BT40-140
|
BT40-150
|
BT40-150
|
BT40-150
|
|
Spindle speed (r/min)
|
8000
|
8000
|
8000
|
8000
|
8000
|
8000
|
|
X/Y/Z rapid movement (m/min)
|
48/48/48
|
30/30/18
|
48/48/48
|
48/48/48
|
48/48/48
|
18/18/18
|
|
Machine Weight (Kg)
|
3800
|
3200
|
5300
|
5500
|
5600
|
5500
|
|
Model
|
VMC1160
|
VMC1165
|
VMC1265
|
VMC1270
|
VMC1370
|
VMC1580
|
Vmc1690
|
|
Table size (mm)
|
1200x600
|
1200x600
|
1200x600
|
1300×650
|
1400x700
|
1700X800
|
1600*800
|
|
Max. allowable load (Kg)
|
800
|
800
|
800
|
1000
|
1000
|
1500
|
1500
|
|
X-axis stroke (mm)
|
1100
|
1100
|
1200
|
1200
|
1300
|
1500
|
1600
|
|
Y-axis travel (mm)
|
600
|
650
|
650
|
700
|
700
|
800
|
900
|
|
Z-axis travel (mm)
|
600
|
650
|
650
|
750
|
750
|
700
|
700
|
|
T-slot
|
5-18x100
|
5-18-100
|
5-18-100
|
5-18-120
|
5-18-130
|
5-22-135
|
7-22-110
|
|
spindle center to Z-axis guide surface (mm)
|
650
|
710
|
710
|
785
|
713
|
855
|
936
|
|
spindle end face to work table (mm)
|
120-720
|
120-720
|
120-770
|
120-850
|
120-870
|
160-860
|
150-850
|
|
Spindle taper hole
|
BT40-150
|
BT40-150
|
BT40-150
|
BT40-150
|
BT40-150
|
BT50-155
|
BT50-190
|
|
Spindle speed (r/min)
|
8000
|
8000
|
8000
|
8000
|
8000
|
6000
|
10000
|
|
X/Y/Z rapid movement (m/min)
|
36/36/24
|
36/36/36
|
36/36/36
|
24/24/24
|
24/24/24
|
24/24/18
|
15/15/12
|
|
Machine Weight (Kg)
|
6500
|
6800
|
7000
|
7500
|
8000
|
12000
|
12000
|
Product Advantages
The advantages of Machining center
1. The main parts of machine tool in machining center are optimized by finite element analysis. The main cast iron is made of high strength cast iron with stable metal structure. 2. Machining center machine body base, slide block, workbench, column, spindle box and other main foundation parts adopt high rigid cast iron structure, stable metal graphic structure, distributed in the internal network structure reinforcement,to ensure the high rigidity and bending resistance and shock absorption performance of the foundation parts; The basic parts are made of resin sand and treated by sandblasting, tempering and vibration effectively to ensure the stability of the machine's accuracy in long-term use and provide a guarantee for the stability of the machine's performance. 3. The machining center machine has a-shaped straddle structure, which is optimized for THREE-DIMENSIONAL diameter reduction, reducing the vibration of the machine tool during strong cutting and making the machine tool more rigid. 4. Machining center high speed and high rigidity spindle unit combined with servo spindle motor; X/Y/Z adopts high torque servo motor. X/Y/Z adopts Taiwan high-precision high-strength ball screw with Japanese NSK bearing and high precision imported locking. X/Y/Z three-way guide rail adopts hard track design, fixed surface adopts ultra-high frequency quenching process after precision grinding; The sliding surface is made of high strength wear-resisting material with plastic tape. Y direction guide rail for four track design (including auxiliary guide rail) greatly increase the rigidity and strength of the machine tool
