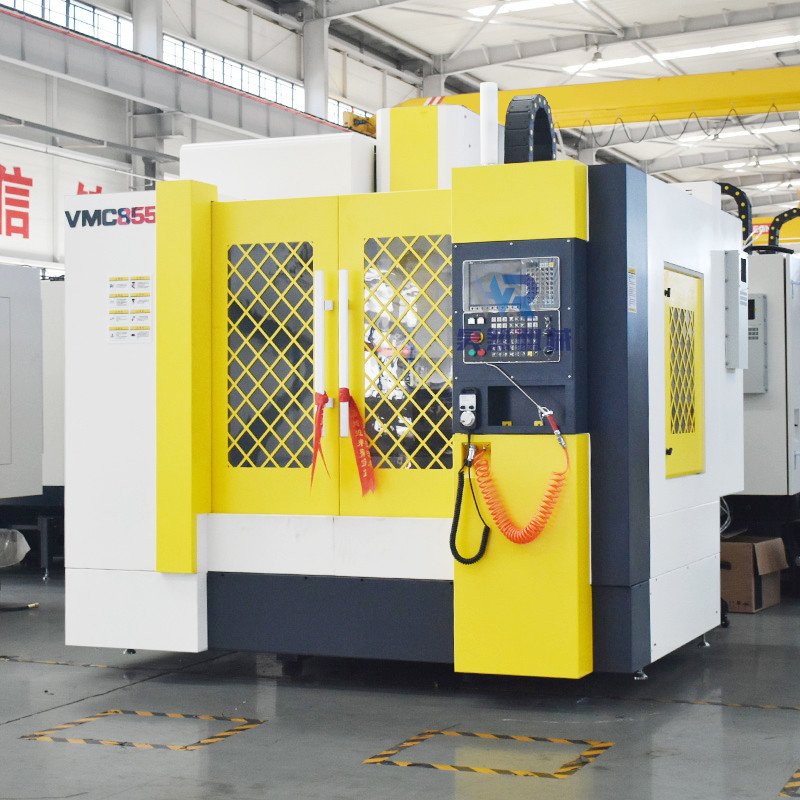

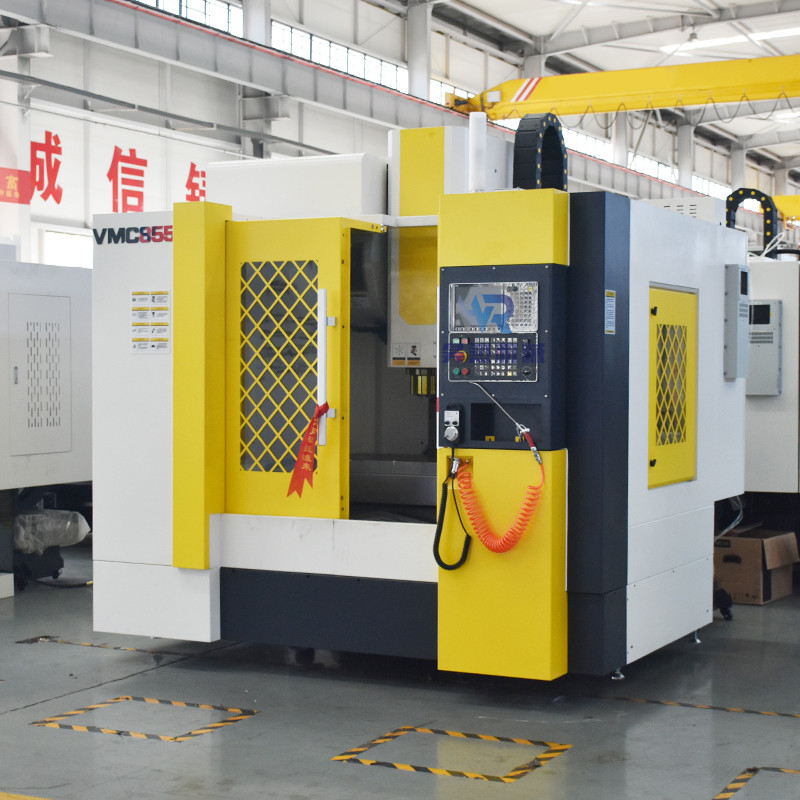

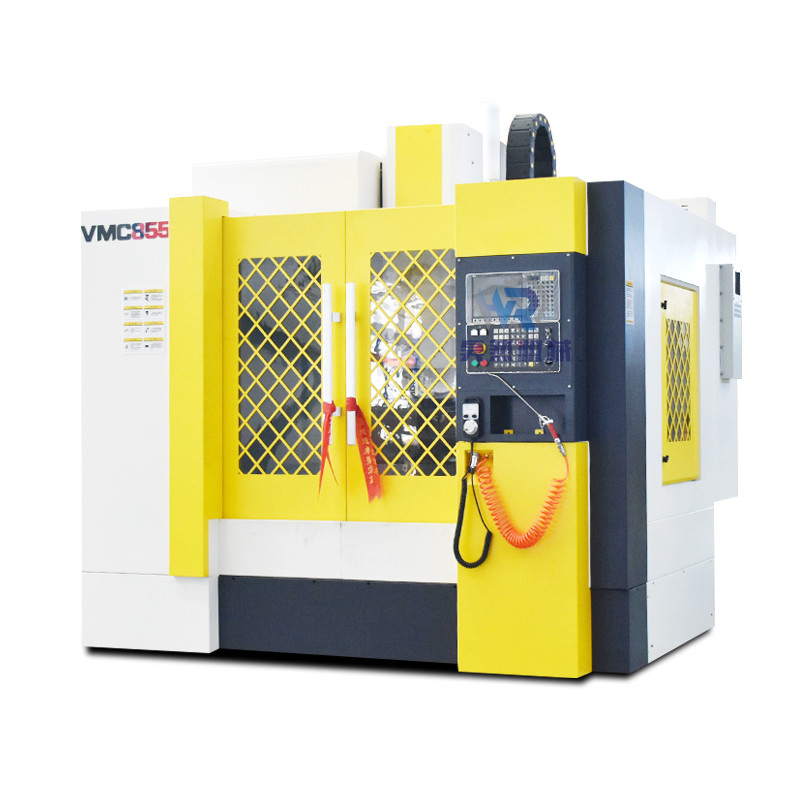

High Speed 4 Axis Vertical Milling Machine Cnc Vmc 855
| Place of Origin | China |
|---|---|
| Brand Name | HR |
| Certification | CE ISO |
| Model Number | vmc 855 |
| Minimum Order Quantity | 1 |
| Price | 26700$-32000$ per one set |
| Packaging Details | wooden package |
| Delivery Time | After 15-30 Days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Trade Assurance |
| Supply Ability | 200 per a month |
Product Details
| Name | High Speed 3 Axis Cnc Milling Machine VMC855 Vertical Machine Center | Number Of Axes | 3 |
|---|---|---|---|
| Machining Capacity | Medium Duty | Range Of Spindle Speed(r.p.m) | 8000 - 12000 |
| No. Of Spindles | Single | Spindle Taper | BT40 |
| Positioning Accuracy (mm) | ±0.005 | Repeatability (X/Y/Z) (mm) | ±0.002 |
| Highlight | vmc 855 vertical milling machine cnc,4 axis vertical milling machine cnc,4 axis cnc vertical milling machine |
||
Product Description
Product Paramenters
Product Description
The process of “milling” entails a rotating cutter, or drilling bit, and a movable work table, which the workpiece is affixed to. The cutter is attached to and rotated in a housing called the "spindle." Through the sharpness of the tool and force of the table pushing the material into the cutter, the material yields and is cut or shaved away as desired. The axis of force can be up/down (referred to as the Z-Axis) left/right (referred to as the X-Axis), or front to back (referred to as the Y-Axis).
Product Advantages
The advantages of Machining center 855
Advantage 1: CE, ISO certification.
Advantage 2: Full production tracking.
Advantage 3: Engineers stationed in the factory guarantee the highest quality.
Advantage 4: Low MOQ for only 1 unit.
Advantage 5: Sales staff who have been in the business for more than 10 years, answer your pre-sales / after-sales questions.
Advantage 6: Engineers traveling around the world to ensure after-sales service.
Advantage 7: OEM, ODM production, to meet customer needs in all aspects.
Advantage 8: 5% -10% deposit, giving you the greatest trust and the least pressure on funds.
Machine detection
Application Example
This VMC is suitable for mechanical processing and mold making .And it can adapt to the processing
requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling
,tapping,boring ,etc.
requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling
,tapping,boring ,etc.
Packaging＆Shipping
1. Outside package: Standard marine export plywood case.
2. Inner package: Stretchy film and plastic film for humidity. We can
package according to your requests. Delivery Detail: Shipped in 15-30 working days after payment.
package according to your requests. Delivery Detail: Shipped in 15-30 working days after payment.
