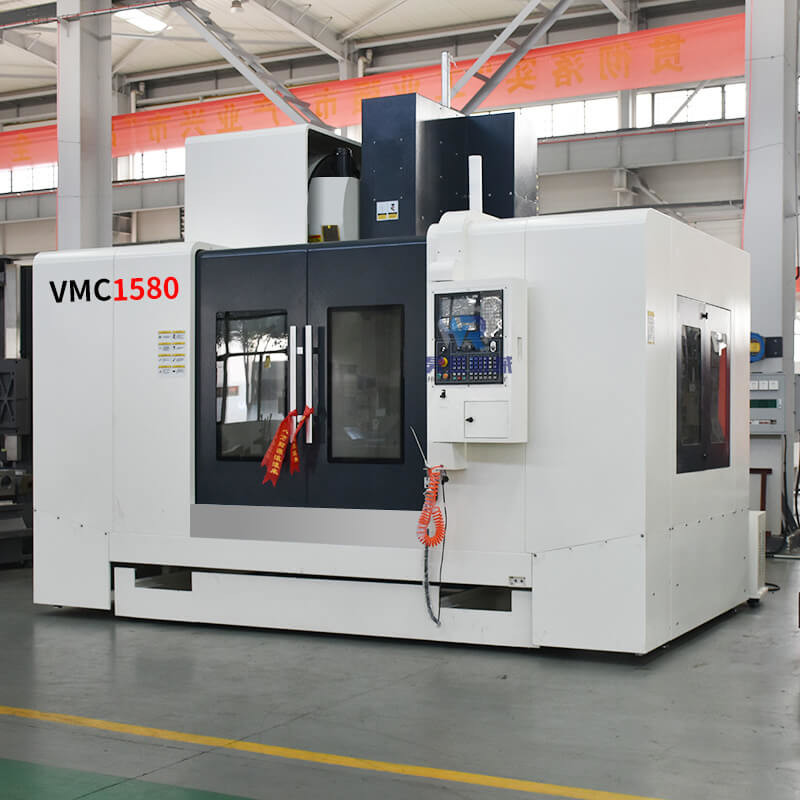

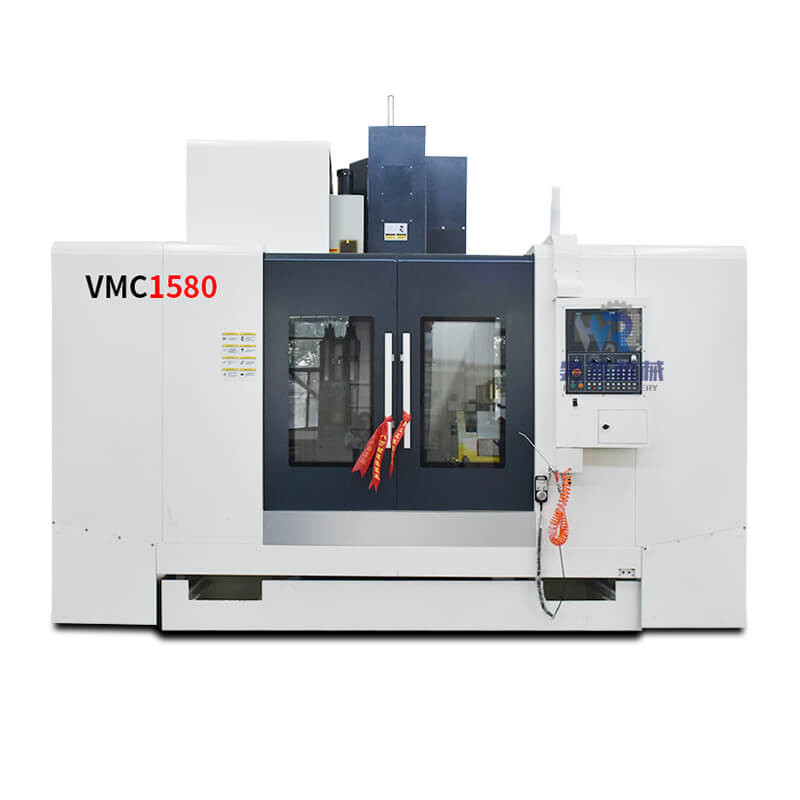

Vertical CNC VMC Mill Machine Center 5 Axis VMC1580

Brand Name: HR
Model Number: vmc 1580
Place of Origin: China
Certification: CE ISO
Minimum Order Quantity: 1
Price: 26700$-32000$ per one set
Supply Ability: 200 per a month
Tags

New vmc cnc machines

4 Axis vmc cnc machines

VMC850 Vertical Machine Center

Product Details

Name: Vertical Machine Center Vertical Machine Center 5 Axis VMC1580 Number Of Axes: 5
Machining Capacity: Medium Duty Range Of Spindle Speed(r.p.m): 8000 - 12000
No. Of Spindles: Single Spindle Taper: BT40
Positioning Accuracy (mm): ±0.005 Repeatability (X/Y/Z) (mm): ±0.002
Highlight

vmc mill Machine

,

CNC vmc mill

,

5 Axis vmc cnc machines

Product Description



Product Advantages

The advantages of Machining center

CNC Vertical Machining Centers can include an additional axis to do specific cutting applications. Rotary Tables are common as a 4th Axis on mills. They can vary in size and weight capacities and can have a horizontal or vertical configuration. They are generally an add-on to a standard 3-axis mill. The mill will have to have a proper 4th axis interface (generally a 4th axis card, drive and CNC Control) to accept a 4th axis rotary table. Trunnion Tables can also be an add-on to a vertical CNC Mill. A Trunnion table adds a 4th and 5th axis to a standard mill by incorporating an A-Axis (which rotates around the X-Axis) as well as a C-Axis (which rotates around the Z Axis).
Product Paramenters
Model
VMC650
VMC840
VMC850
VMC855
VMC966 I
VMC1050
Table size (mm)
1000x400
1000x400
1000x500
1000x550
1100x550
1200x420
Max. allowable load (Kg)
400
300
500
500
600
500
X-axis stroke (mm)
650
800
800
800
900
1000
Y-axis travel (mm)
400
400
500
550
600
500
Z-axis travel (mm)
550
550
500
550
600
550
T-slot
3-18-120
3-18-140
5-18-108
5-18-90
5-18-100
5-18-100
spindle center to Z-axis guide surface (mm)
485
445
552
590
663
)575
spindle end face to work table (mm)
100-650
100-650
110-610
120-670
100-700
100-650
Spindle taper hole
BT40-120
BT40-120
BT40-140
BT40-150
BT40-150
BT40-150
Spindle speed (r/min)
8000
8000
8000
8000
8000
8000
X/Y/Z rapid movement (m/min)
48/48/48
30/30/18
48/48/48
48/48/48
48/48/48
18/18/18
Machine Weight (Kg)
3800
3200
5300
5500
5600
5500

Model
VMC1160
VMC1165
VMC1265
VMC1270
VMC1370
VMC1580
Vmc1690
Table size (mm)
1200x600
1200x600
1200x600
1300×650
1400x700
1700X800
1600*800
Max. allowable load (Kg)
800
800
800
1000
1000
1500
1500
X-axis stroke (mm)
1100
1100
1200
1200
1300
1500
1600
Y-axis travel (mm)
600
650
650
700
700
800
900
Z-axis travel (mm)
600
650
650
750
750
700
700
T-slot
5-18x100
5-18-100
5-18-100
5-18-120
5-18-130
5-22-135
7-22-110
spindle center to Z-axis guide surface (mm)
650
710
710
785
713
855
936
spindle end face to work table (mm)
120-720
120-720
120-770
120-850
120-870
160-860
150-850
Spindle taper hole
BT40-150
BT40-150
BT40-150
BT40-150
BT40-150
BT50-155
BT50-190
Spindle speed (r/min)
8000
8000
8000
8000
8000
6000
10000
X/Y/Z rapid movement (m/min)
36/36/24
36/36/36
36/36/36
24/24/24
24/24/24
24/24/18
15/15/12
Machine Weight (Kg)
6500
6800
7000
7500
8000
12000
12000



Vertical CNC VMC Mill Machine Center 5 Axis VMC1580 0
Vertical CNC VMC Mill Machine Center 5 Axis VMC1580 1




Product Description
Vertical Machining has been around in its most basic form for more than 150 years. Yet, it's still one of the newest forms of machining technology (turning/lathes is the oldest). The process of “milling” entails a rotating cutter, or drilling bit, and a movable work table, which the workpiece is affixed to. The cutter is attached to and rotated in a housing called the "spindle." Through the sharpness of the tool and force of the table pushing the material into the cutter, the material yields and is cut or shaved away as desired. The axis of force can be up/down (referred to as the Z-Axis) left/right (referred to as the X-Axis), or front to back (referred to as the Y-Axis).
Vertical CNC VMC Mill Machine Center 5 Axis VMC1580 2
Machine detection
Vertical CNC VMC Mill Machine Center 5 Axis VMC1580 3
Vertical CNC VMC Mill Machine Center 5 Axis VMC1580 4
Application Example
This VMC is suitable for mechanical processing and mold making .And it can adapt to the processing
requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling
,tapping,boring ,etc.
Vertical CNC VMC Mill Machine Center 5 Axis VMC1580 5
Packaging＆Shipping
Vertical CNC VMC Mill Machine Center 5 Axis VMC1580 6
1. Outside package: Standard marine export plywood case.
2. Inner package: Stretchy film and plastic film for humidity. We can
package according to your requests. Delivery Detail: Shipped in 15-30 working days after payment.
