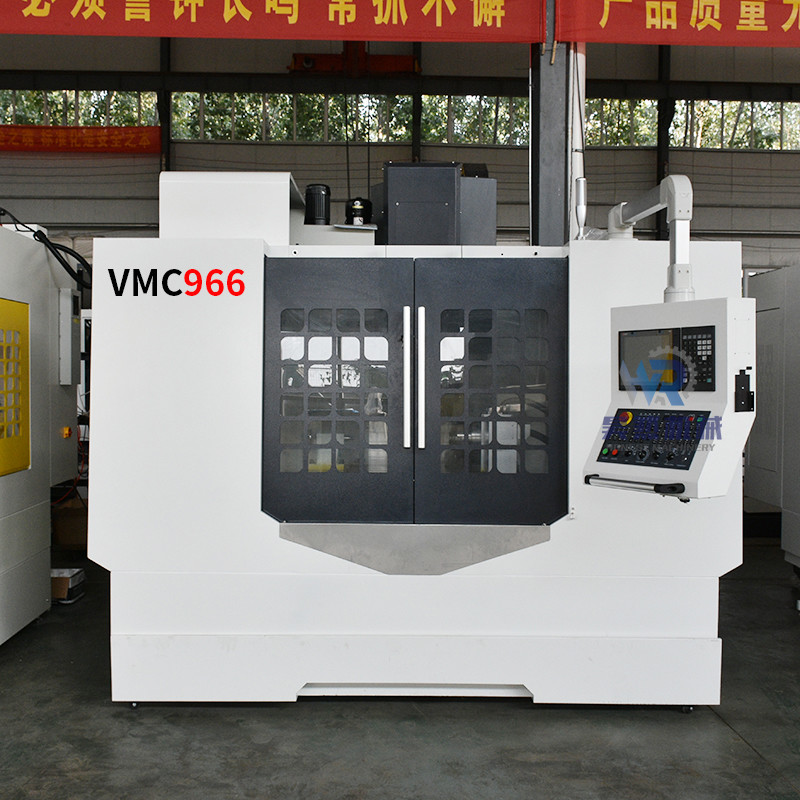

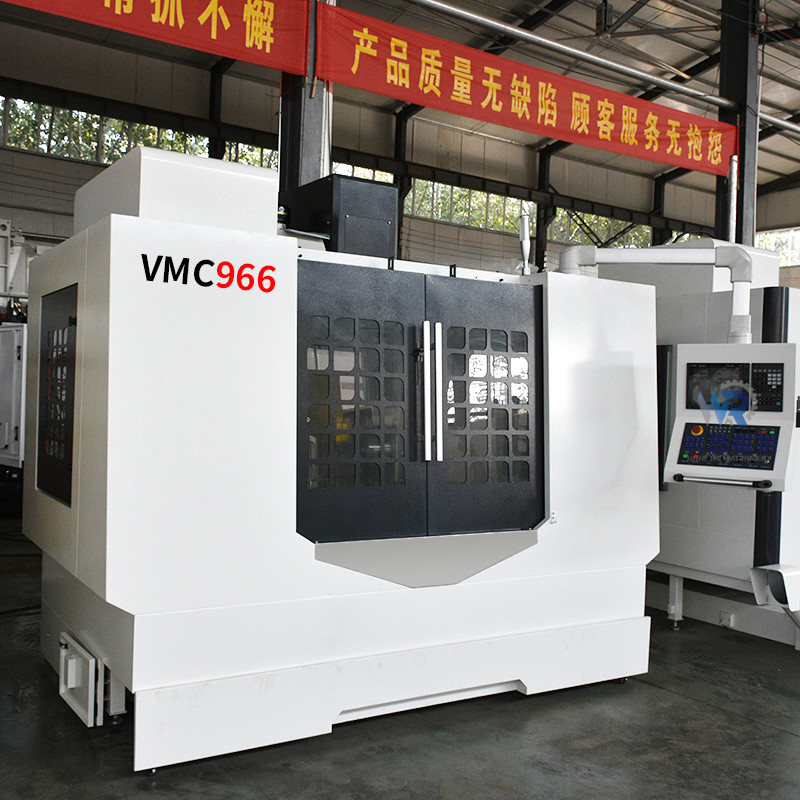

Small CNC 3 Axis Vertical Milling Machine Mini VMC 966 For Metal
| Place of Origin | china |
|---|---|
| Brand Name | HR |
| Certification | ceiso |
| Model Number | vmc966 |
| Minimum Order Quantity | 1set |
| Price | 19000-40000usd |
| Packaging Details | wooden packing |
| Delivery Time | 30day |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 40set/month |
Product Details
| Warranty | 1 Year | Weight | 4800kg |
|---|---|---|---|
| Condition | New | Type | Vertical |
| Spindle Taper | BT40 | Spindle Speed | 8000 Rpm |
| Table Size | 1100*550 | T-slot | 5-18-100 |
| Highlight | Small 3 axis vertical milling machine,Metal 3 axis vertical milling machine,Small 3 axis vmc |
||
Product Description
Small CNC 3 Axis Vertical Milling Machine Mini VMC 966 For Metal
Product Description
Vertical Machining has been around in its most basic form for more than 150 years. Yet, it's still one of the newest forms of machining technology (turning/lathes is the oldest). The process of “milling” entails a rotating cutter, or drilling bit, and a movable work table, which the workpiece is affixed to. The cutter is attached to and rotated in a housing called the "spindle." Through the sharpness of the tool and force of the table pushing the material into the cutter, the material yields and is cut or shaved away as desired. The axis of force can be up/down (referred to as the Z-Axis) left/right (referred to as the X-Axis), or front to back (referred to as the Y-Axis).
Application:
This VMC is suitable for mechanical processing and mold making .And it can adapt to the processing
requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling,tapping,boring ,etc.
Application:
This VMC is suitable for mechanical processing and mold making .And it can adapt to the processing
requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling,tapping,boring ,etc.
Product Details

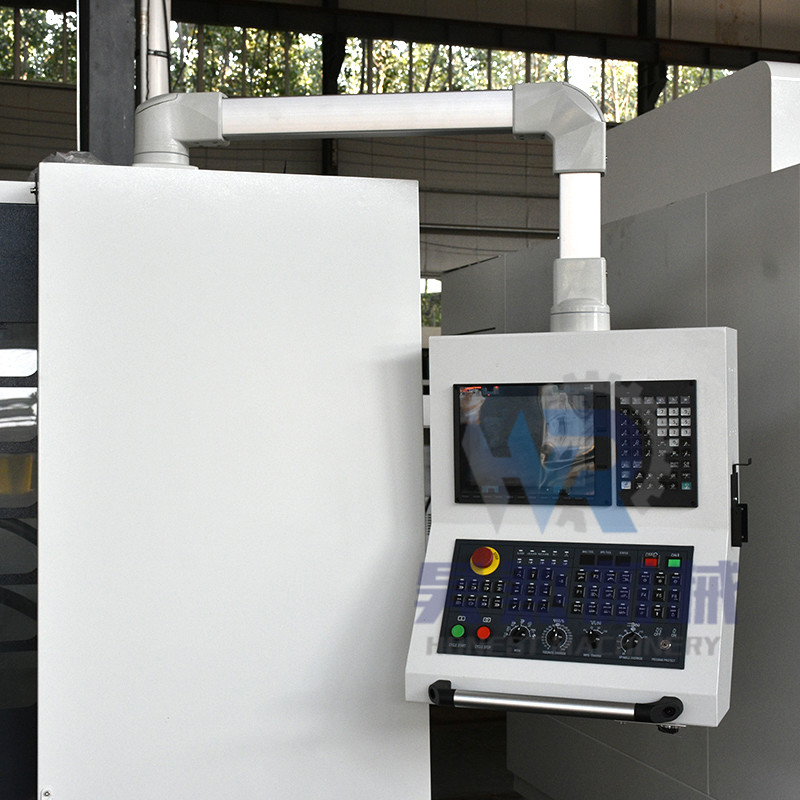

1 .Taiwan HIWIN high precison guideway 2 .Taiwan-made spindle Unit,8000-12000rpm available 3.Reliable Control System: vertical machining center is suitable for producing metal product and parts in all shapes.
Equipped with precision ball screw and servo motor drive, the connection between the screw and the motor adopts special coupling technology, with small moment of inertia, no transmission gap, high transmission stiffness and high speed, and the cutting feed speed can reach 20m / min.
Taiwan spindle ensures high-speed cutting. The water outlet function of the spindle center has good chip removal effect and good cooling effect, which improves the processing quality
Taiwan HIWIN high precison guideway
Automatic tool change system
mechanical accuracy test can make every customer more assured
sample
It is widely used to produce the auto spare parts, medical treatment instrument and any kind of injection mould, blowing mould, die-casting mould, car LED mould, toy mould and precise mould and o on. Large steel molds are the first products requiring large cutting amount and fast processing speed. It is applicable to the processing of plastic mold industry, automobile tire industry, hardware industry, toy industry, handicrafts, fine stamping die, bronzing die, high-frequency die, embossing wheel die, die-casting die and graphite electrode. It is the best choice for mold manufacturing industry and parts processing.
Packaging＆Shipping
Packaging Details: 1. Outside package: Standard marine export plywood case. 2. Inner package: Stretchy film and plastic film for humidity. We can package according to your requests. Delivery Detail: Shipped in 30 working days after payment.
Certifications
All products are available upon request, with or without trademarks. If you need OEM service with your own brand or product, please let us know. If you have any other specific requirements, please feel free to contact us. Our factory has obtained the import and export license issued by the Ministry of foreign trade, and passed the iso9001 quality management system certification and CE certification. In the quality layer by layer, we will wholeheartedly serve for the majority of customers.
