3 Axis CNC Vertical Drilling Machine Center VMC 850 FNC Controller

Name: 3 Axis CNC Vertical Drilling Machine Center VMC 850 FNC Controller
Brand: Shandong Honest Machinery Co., Ltd.
SKU: vmc 1160
Price: 34,650.00 USD
Availability: InStock

Brand Name: HR

Model Number: vmc 1160

Place of Origin: China

Certification: CE ISO

Minimum Order Quantity: 1

Price: 34300$-35000$ per one set

Supply Ability: 60 per a month

VMC850 Vertical Machine Center

Product Details

Type:	Vertical	Number Of Axes:	3
Machining Capacity:	Medium Duty	Range Of Spindle Speed(r.p.m):	8000 - 12000
No. Of Spindles:	Single	Spindle Taper:	BT40
Positioning Accuracy (mm):	±0.005	Repeatability (X/Y/Z) (mm):	±0.002
Highlight	3 Axis cnc vertical drilling machine , VMC cnc vertical drilling machine , 3 Axis cnc machine and vmc machine

Product Description

Factory sale VMC 1160 vertical machining center cnc 5 axis milling machine center

Product Paramenters

Model	VMC650	VMC840	VMC850	VMC855	VMC966 I
Table size (mm)	1000x400	1000x400	1000x500	1000x550	1100x550
Max. allowable load (Kg)	400	300	500	500	600
X-axis stroke (mm)	650	800	800	800	900
Y-axis travel (mm)	400	400	500	550	600
Z-axis travel (mm)	550	550	500	550	600
T-slot	3-18-120	3-18-140	5-18-108	5-18-90	5-18-100
spindle center to Z-axis guide surface (mm)	485	445	552	590	663
spindle end face to work table (mm)	100-650	100-650	110-610	120-670	100-700
Spindle taper hole	BT40-120	BT40-120	BT40-140	BT40-150	BT40-150
Spindle speed (r/min)	8000	8000	8000	8000	8000
X/Y/Z rapid movement (m/min)	48/48/48	30/30/18	48/48/48	48/48/48	48/48/48
Machine Weight (Kg)	3800	3200	5300	5500	5600

Model	VMC1050	VMC1160	VMC1165	VMC1265	VMC1370 I	VMC1580
Table size (mm)	1200x420	1200x600	1200x600	1200x600	1400x700	1700X800
Max. allowable load (Kg)	500	800	800	800	800	1500
X-axis stroke (mm)	1000	1100	1100	1200	1300	1500
Y-axis travel (mm)	500	600	650	650	700	800
Z-axis travel (mm)	550	600	650	650	750	700
T-slot	5-18-100	5-18x100	5-18-100	5-18-100	5-18-130	5-22-135
spindle center to Z-axis guide surface (mm)	)575	650	710	710	713	855
spindle end face to work table (mm)	100-650	120-720	120-720	120-720	120-870	160-860
Spindle taper hole	BT40-150	BT40-150	BT40-150	BT40-150	BT40-150	BT50-155
Spindle speed (r/min)	8000	8000	8000	8000	8000	6000
X/Y/Z rapid movement (m/min)	18/18/18	36/36/24	36/36/36	36/36/36	24/24/24	24/24/18
Machine Weight (Kg)	5500	6500	6800	6800	8000	12000

STANDARD CONFIGURATION:

KND2000MF3i Control System 2. Taiwan BT40-8000 spindle.
Taiwan 16 tools ATC
Taiwan HIWIN three axis linear guideway
Taiwan Hiwin ball screw.
Work Lamp.
Full Enclosure Machine Guard.





OPTIONAL CONFIGURATION:

Siemens Fanuc Syntec KND Mitusbishi GUNT. 2. 16T/ 24T arm type tool changer.
Chain type chip conveyor.
4th axis and 5th axis.
Spindle oil cooler.
Coolant through spindle.
Renishaw probe for workpiece and tool.
10000RPM/ 12000RPM spindle.

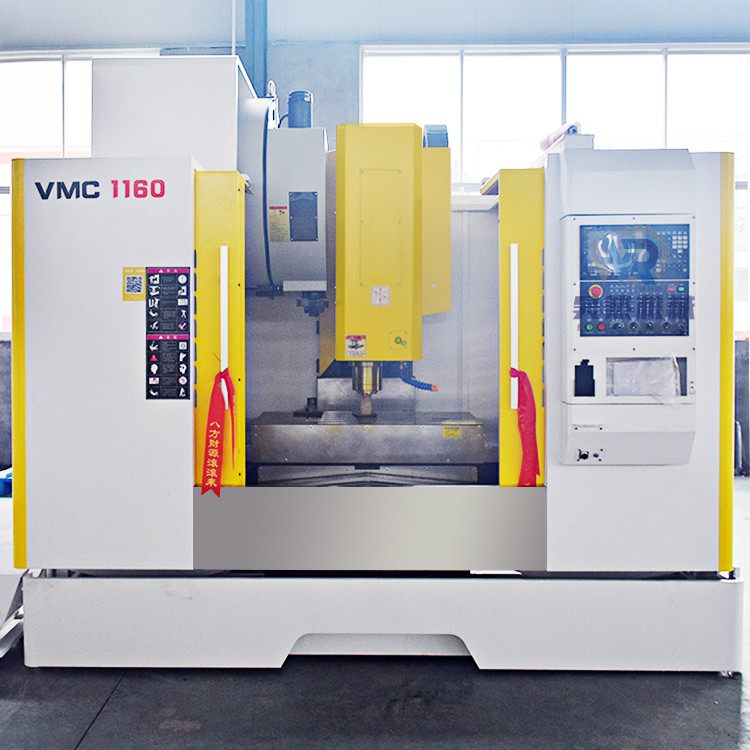

3 Axis CNC Vertical Drilling Machine Center VMC 850 FNC Controller 0

Product Description

VMC series vertical CNC milling machine adopts vertical frame layout, the column is fixed on the bed body, the headstock moves up and down along the column (Z direction), the slide moves longitudinally along the bed (Y direction), and the table moves laterally along the slide (X To) the structure.

The large parts such as bed, workbench, sliding seat, column and headstock are made of resin sand castings, and after two aging treatments, the stress is eliminated, the stability is good, the strength is high, and the stability of the long-term use precision of the machine tool is ensured. It provides a guarantee for the stability of machine performance. These large pieces are optimized by Soldworks and Ansys to improve the rigidity and stability of the large parts and the whole machine, effectively suppressing the deformation and vibration of the machine tool caused by the cutting force.

Product details

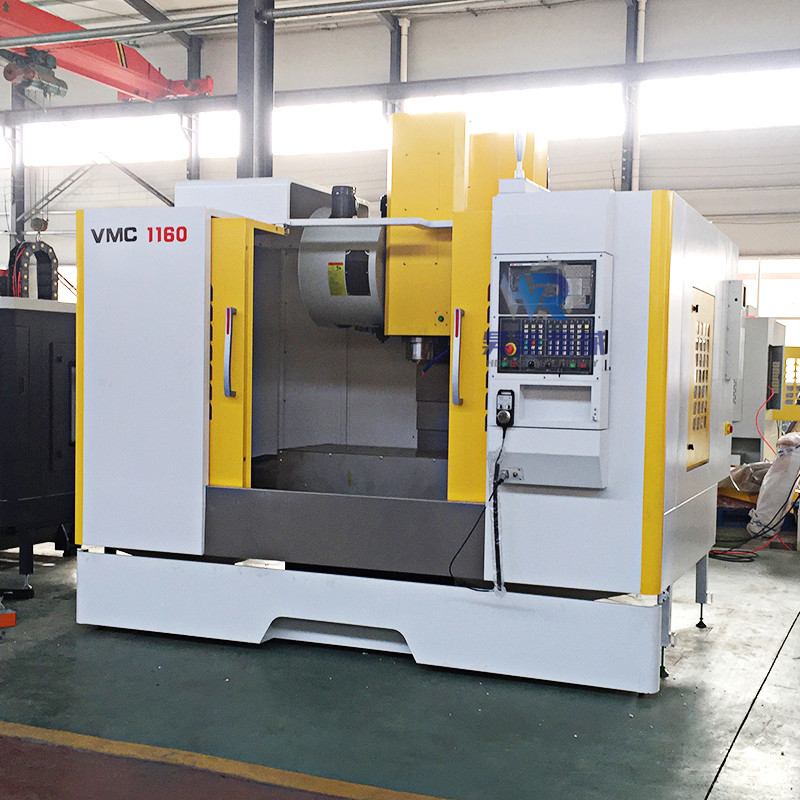

3 Axis CNC Vertical Drilling Machine Center VMC 850 FNC Controller 1

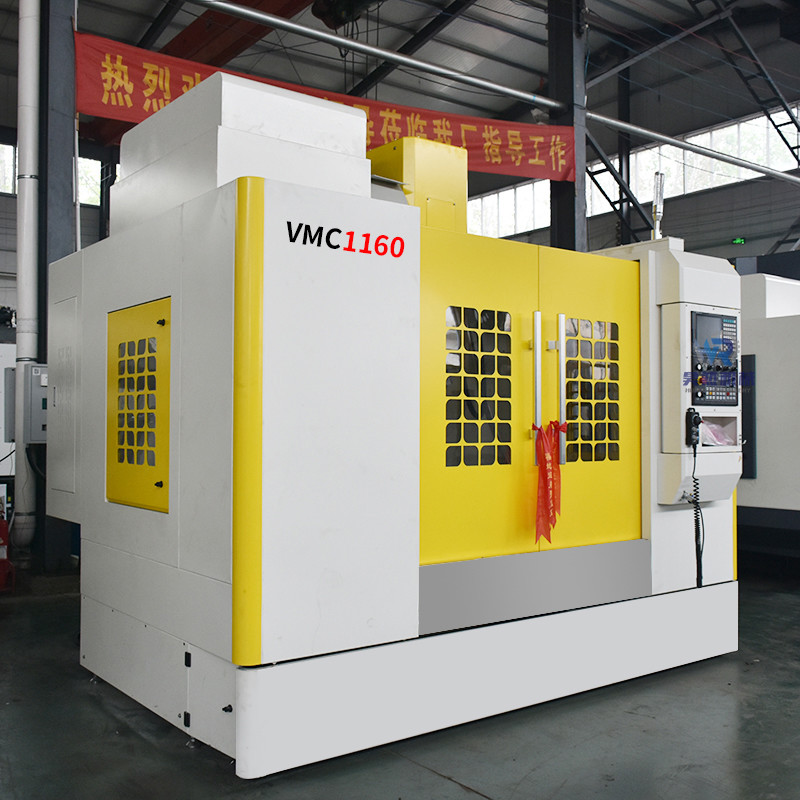

3 Axis CNC Vertical Drilling Machine Center VMC 850 FNC Controller 2

Application Example

VMC 1160 cnc milling machine vertical machining center The vertical machining center is mainly used to process parts with high precision, many processes and complex shapes such as plates, disc parts, shell parts, molds, etc. It can continuously complete milling, drilling, expanding, reaming, boring, Tapping, two-dimensional and three-dimensional curved surfaces, and precise machining of inclined planes, the processing is programmed, and the production cycle is shortened, so that users can obtain good economic benefits.

3 Axis CNC Vertical Drilling Machine Center VMC 850 FNC Controller 3

Packaging＆Shipping

1. Outside package: Standard marine export plywood case.2. Inner package: Stretchy film and plastic film for humidity. We can

package according to your requests. Delivery Detail: Shipped in 15-30 working days after payment.

3 Axis CNC Vertical Drilling Machine Center VMC 850 FNC Controller 4

Company information

Shandong Honest control machine tool Co., Ltd. is a production-oriented enterprise with import and export rights. The company is equipped with many kinds of machine tools and equipment, including nearly 100 sets of large, fine and sophisticated equipment. The enterprise has 100 employees at present, including more than 10 engineers and dozens of workers and technicians. The company has been insisting on staff training for many years, through changing staff concepts, implementing enterprise reform, introducing new management concepts and methods, using modern management level. The company has hundreds of sales outlets, more than one sales branch or office, 30 provinces, cities, autonomous regions. In Europe, South America, Asia, Hong Kong and other countries and regions have long-term cooperation dealers. In recent years, the company insists on changing the mode and adjusting the structure; Implement brand strategy and expand foreign market; Control the manufacturing level of company equipment. Formed by CNC lathe, CNC milling machine, vertical machining center, gantry machining center, CNC metal band sawing machine, drilling and milling machine series, milling machine series, turret milling machine series, more than ten categories, hundreds of varieties of production scale. It has achieved the expected goal of CNC product serialization and characteristic product individuation, and formed its own brand while meeting the personalized needs of users.

3 Axis CNC Vertical Drilling Machine Center VMC 850 FNC Controller 5

Certifications

3 Axis CNC Vertical Drilling Machine Center VMC 850 FNC Controller 6

3 Axis CNC Vertical Drilling Machine Center VMC 850 FNC Controller 7

3 Axis CNC Vertical Drilling Machine Center VMC 850 FNC Controller 8

Customer Photos

3 Axis CNC Vertical Drilling Machine Center VMC 850 FNC Controller 9

FAQ

1:How can I choose the most suitable machines ?

A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you .

2: What's your main products of your company?

A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .

3: Where is our factory located? How can I visit there?

A : Our factory is located in Jinan City ,Shandong Province,271000 China. You are warmly welcomed to visit us.

4. What is your trade terms?

A : FOB, CFR and CIF all acceptable.

5: What's the Payment Terms ?

A : T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight .

6: What's the MOQ?

A: 1 set .(Only some low cost machines will be more than 1 set )
