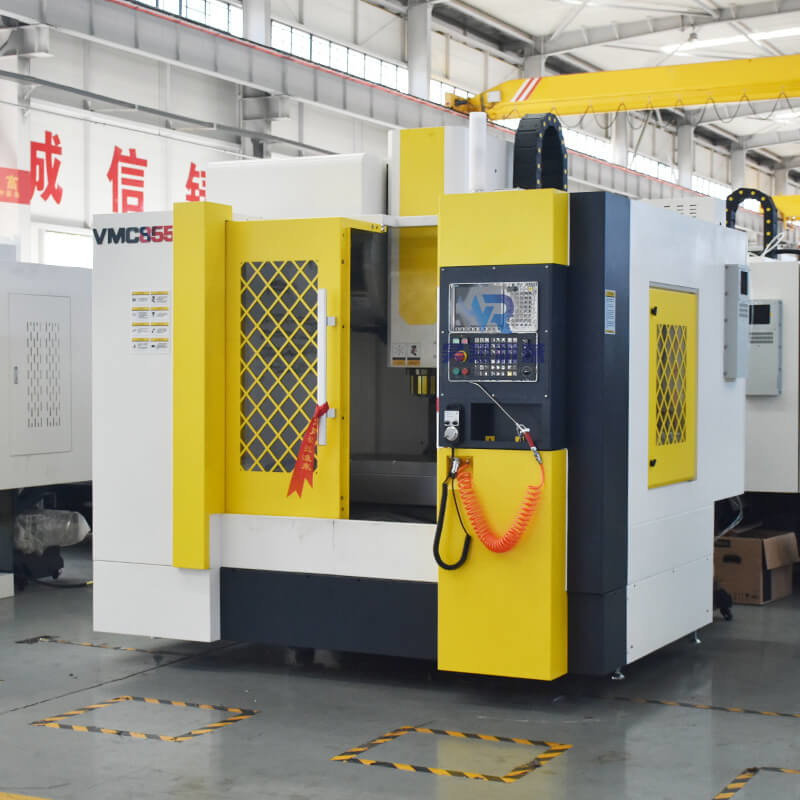

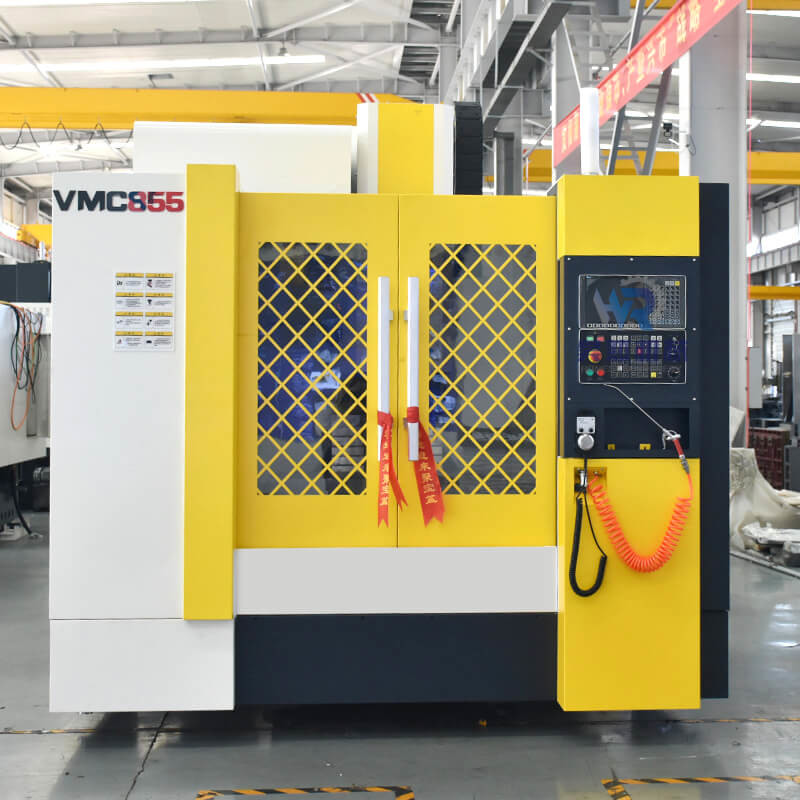

3axis VMC CNC Milling Machine VMC855 KND Controller 8000r/min
| Place of Origin | China |
|---|---|
| Brand Name | HR |
| Certification | CE ISO |
| Model Number | vmc 855 |
| Minimum Order Quantity | 1 |
| Price | 26700$-32000$ per one set |
| Packaging Details | wooden package |
| Delivery Time | After 15-30 Days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Trade Assurance |
| Supply Ability | 200 per a month |
Product Details
| Name | Knd Controller 3 Axis Iron Milling Cnc Vmc855 Vertical Machine Center | Number Of Axes | 3 |
|---|---|---|---|
| Machining Capacity | Medium Duty | Range Of Spindle Speed(r.p.m) | 8000 - 12000 |
| No. Of Spindles | Single | Spindle Taper | BT40 |
| Positioning Accuracy (mm) | ±0.005 | Repeatability (X/Y/Z) (mm) | ±0.002 |
| Highlight | 8000r/min VMC CNC Milling Machine,KND VMC CNC Milling Machine,3axis vmc milling machine |
||
Product Description
3axis VMC CNC Milling Machine VMC855 KND Controller
Product Paramenters
Product Description
Vertical Machining has been around in its most basic form for more than 150 years. Yet, it's still one of the newest forms of machining technology (turning/lathes is the oldest). The process of “milling” entails a rotating cutter, or drilling bit, and a movable work table, which the workpiece is affixed to. The cutter is attached to and rotated in a housing called the "spindle." Through the sharpness of the tool and force of the table pushing the material into the cutter, the material yields and is cut or shaved away as desired. The axis of force can be up/down (referred to as the Z-Axis) left/right (referred to as the X-Axis), or front to back (referred to as the Y-Axis).
Product Advantages
The advantages of Machining center 855
Machining center 855 machine body base, slide block, workbench, column, spindle box and other main foundation parts adopt high rigid cast iron structure, stable metallographic structure, distributed in the internal network structure reinforcement,to ensure the high rigidity and bending resistance and shock absorption performance of the foundation parts; The basic parts are made of resin sand and treated by sandblasting, tempering and vibration effectively to ensure the stability of the machine's accuracy in long-term use and provide a guarantee for the stability of the machine's performance.
Application Example
This VMC is suitable for mechanical processing and mold making .And it can adapt to the processing
requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling
,tapping,boring ,etc.
requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling
,tapping,boring ,etc.
Packaging＆Shipping
1. Outside package: Standard marine export plywood case.
2. Inner package: Stretchy film and plastic film for humidity. We can
package according to your requests. Delivery Detail: Shipped in 15-30 working days after payment.
package according to your requests. Delivery Detail: Shipped in 15-30 working days after payment.
