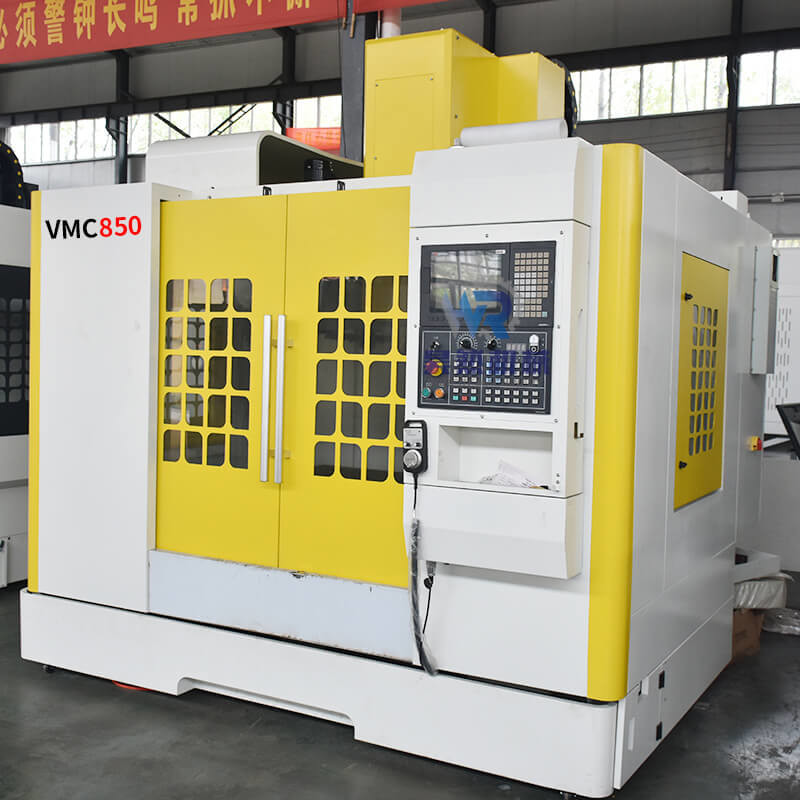

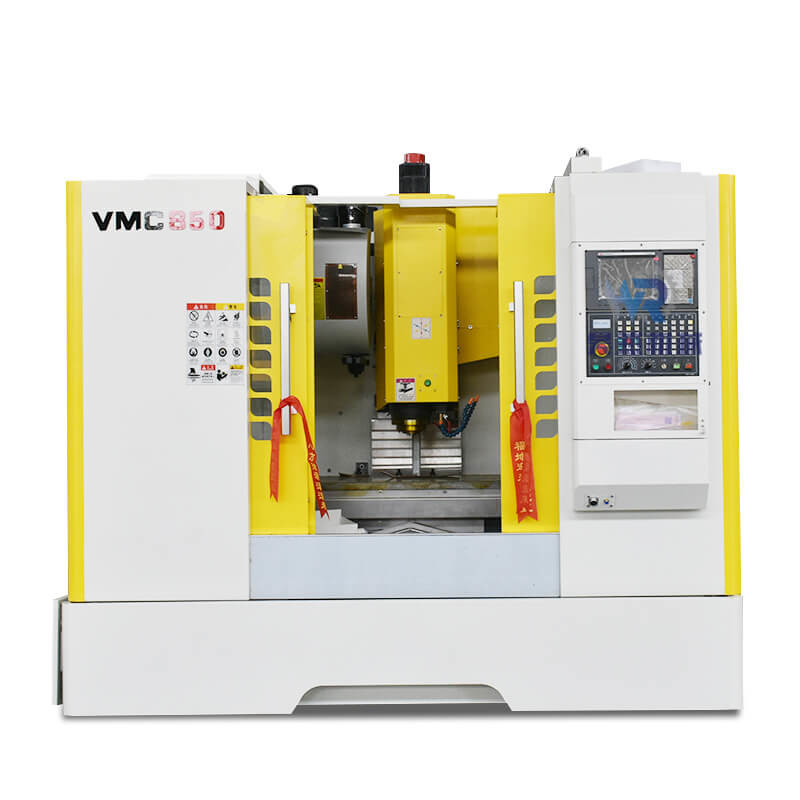

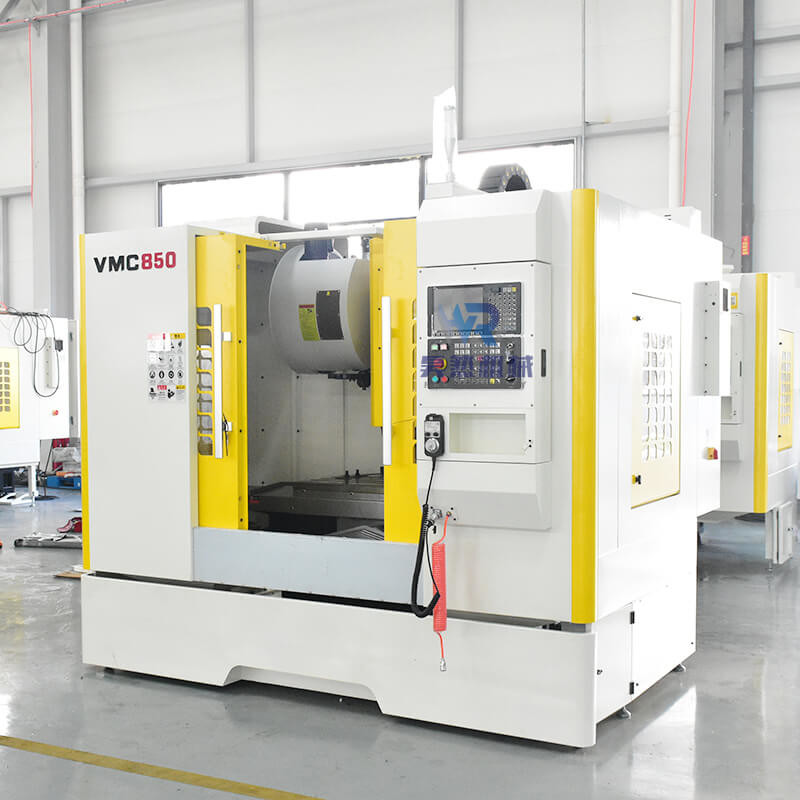

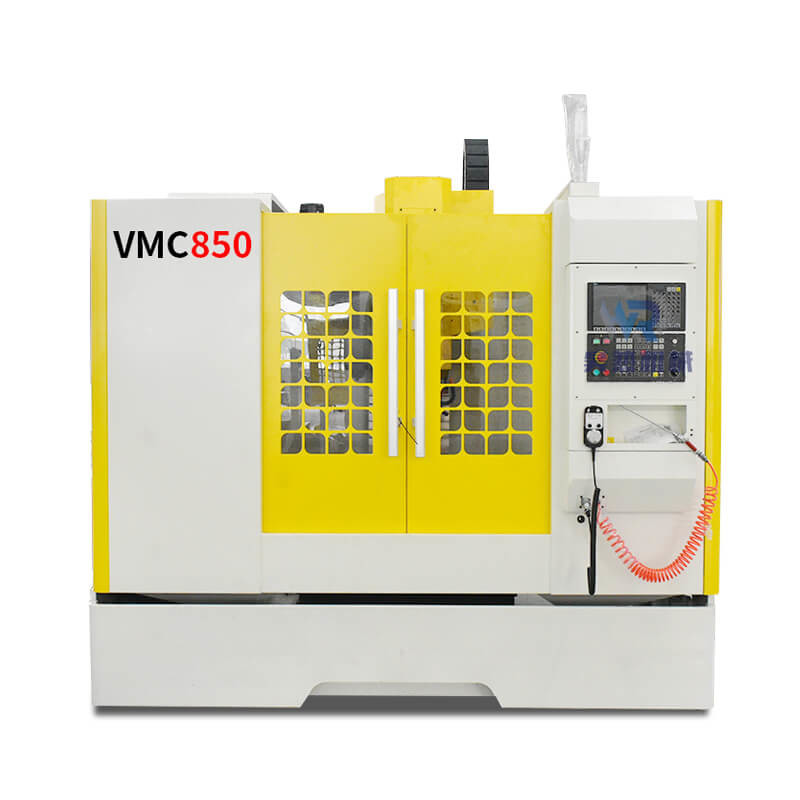

VMC850 CNC Vertical Machine Center 5 Axis VMC Machine
Product Details
| Name: | CNC 5 Axis Taiwan Vertical Machining Center VMC850 CNC Vertical Milling Machine | Number Of Axes: | 5 |
|---|---|---|---|
| Machining Capacity: | Medium Duty | Range Of Spindle Speed(r.p.m): | 8000 - 12000 |
| No. Of Spindles: | Single | Spindle Taper: | BT40 |
| Positioning Accuracy (mm): | ±0.005 | Repeatability (X/Y/Z) (mm): | ±0.002 |
| Highlight |
Vertical Machine Center VMC 850,5 Axis Vertical Machine Center,5 axis vmc machine Center |
||
Product Description
VMC850 CNC Vertical Machine Center 5 Axis VMC Machine
CNC Vertical Mills generally have a single spindle, automatic tool changer, work table and CNC Control.
The spindle on a CNC Machining Center can have a wide range of speeds depending on what material is being cut and the depth of cut that is required. Typical spindle speed ranges from 0 to 10,000 RPM. Higher speeds are used for lighter materials including graphite and aluminum among others. Higher speeds can reach 12,000 RPM up to 50,000 RPM and higher.
The Spindle is loaded with tool holders and cutters to achieve the proper material removal. There are many different styles of tool holders including BT and CAT – which have a conical shape as well as HSK, which uses flanges instead of a taper to lock the holder in place. BT and CAT Holders can come in various sizes including 30, 40 and 50 taper depending on the size of tool the cutter requires. HSK (Hollow taper ShanK) comes in a variety of types – A through F – and sizes from HSK-32 up to HSK-160. HSK is
considered a better tool holder for high speed machining as there is more surface contact between the spindle and the holder, reducing vibration and keeping the tool from pulling back into the receiver when cutting at high speeds.
Application:
This VMC is suitable for mechanical processing and mold making .And it can adapt to the processing
requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling,tapping,boring ,etc.
The advantages of Machining center 850 machine:
2. Machining center 850 machine body base, slide block, workbench, column, spindle box and other main foundation parts adopt high rigid cast iron structure, stable metallographic structure, distributed in the internal network structure reinforcement,to ensure the high rigidity and bending resistance and shock absorption performance of the foundation parts; The basic parts are made of resin sand and treated by sandblasting, tempering and vibration effectively to ensure the stability of the machine's accuracy in long-term use and provide a guarantee for the stability of the machine's performance.
3. The machining center 850 machine has a-shaped straddle structure, which is optimized for THREE-DIMENSIONAL diameter reduction, reducing the vibration of the machine tool during strong cutting and making the machine tool more rigid.
4. Machining center 850 high speed and high rigidity spindle unit combined with servo spindle motor; X/Y/Z adopts high torque servo motor. X/Y/Z adopts Taiwan high-precision high-strength ball screw with Japanese NSK bearing and high precision imported locking. X/Y/Z three-way guide rail adopts hard track design, fixed surface adopts ultra-high frequency quenching process after precision grinding; The sliding surface is made of high strength wear-resisting material with plastic tape. Y direction guide rail for four track design (including auxiliary guide rail) greatly increase the rigidity and strength of the machine
tool.
requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling,tapping,boring ,etc.
package according to your requests. Delivery Detail: Shipped in 15-30 working days after payment.
