quality VMC650 Taiwan Spindle CNC Vertical Machining Center Milling Machine factory
<
quality VMC650 Taiwan Spindle CNC Vertical Machining Center Milling Machine factory
quality VMC650 Taiwan Spindle CNC Vertical Machining Center Milling Machine factory
>

VMC650 Taiwan Spindle CNC Vertical Machining Center Milling Machine

Brand Name: HR
Model Number: vmc650
Place of Origin: china
Certification: ceiso
Minimum Order Quantity: 1set
Price: usd 19000-40000
Supply Ability: 40set/month
Tags

8000rpm vmc 850 milling machine

Honest vmc 850 milling machine

Honest 850 small vertical machining center

Product Details

Warranty: 2 Years Weight: 4800kg
Condition: New Type: Vertical
Voltage: 380V 50HZ Power(w): 7.5/11 KW
Spindle: Taiwan 10000rpm Spindle Spindle Taper: BT40
Highlight

VMC650 CNC Vertical Milling Machine

,

Taiwan Spindle CNC Vertical Milling Machine

,

CNC Machining Center VMC650

Product Description

CNC Machining Center VMC650 Taiwan Spindle CNC Vertical Milling Machine



Product Description

 CNC vertical machining center With high production efficiency, CNC milling machines generally do not need to use special process equipment such as special fixtures. When replacing workpieces, they only need to call the processing program, clamping tools and adjusting tool data stored in the CNC device, which greatly shortens the production cycle.

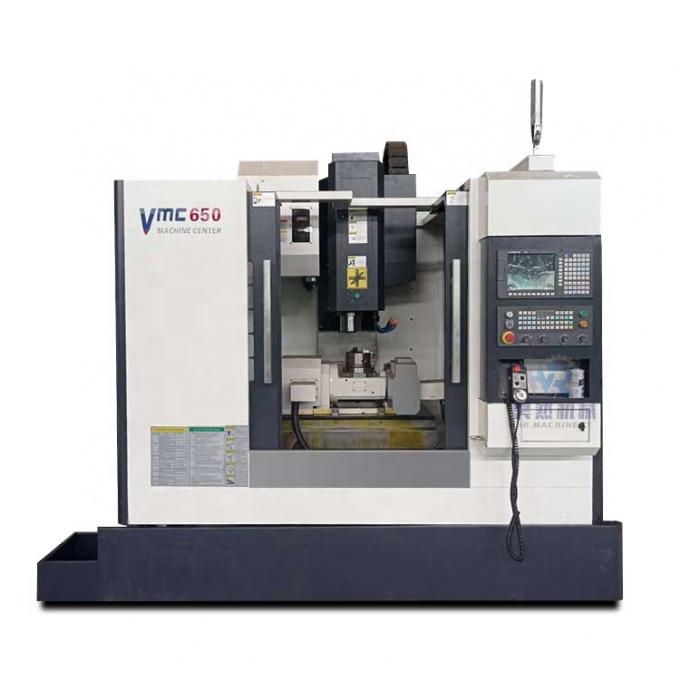

VMC650 Taiwan Spindle CNC Vertical Machining Center Milling Machine 0

Model
Vmc640
VMC650
VMC840
VMC850
VMC855
Table size (mm)
800*300
1000*400
1000*400
1000*500
1000*550
Max. allowable load (Kg)
400
400
300
500
500
X-axis stroke (mm)
600
650
800
800
800
Y-axis travel (mm)
400
400
400
500
550
Z-axis travel (mm)
450
550
550
500
550
T-slot
3-18-120
3-18-120
3-18-140
5-18-108
5-18-90
spindle center to Z-axis guide surface (mm)
460
485
445
552
590
spindle end face to work table (mm)
120-670 mm
100-650
100-650
110-610
120-670
Spindle taper hole
BT40-120
BT40-120
BT40-120
BT40-140
BT40-150
Spindle speed (r/min)
8000
8000
8000
8000
8000
X/Y/Z rapid movement (m/min)
24/24/18mm
48/48/48
30/30/18
48/48/48
48/48/48
Machine Weight (Kg)
3000
3800
3200
5300
5500
Model
VMC966
VMC1050
VMC1160
VMC1165
Table size (mm)
1100*550
1200*420
1200*600
1200*600
Max. allowable load (Kg)
600
500
800
800
X-axis stroke (mm)
900
1000
1100
1100
Y-axis travel (mm)
600
500
600
650
Z-axis travel (mm)
600
550
600
650
T-slot
5-18-100
5-18-100
5-18*100
5-18-100
spindle center to Z-axis guide surface (mm)
663
575
650
710
spindle end face to work table (mm)
100-700
100-650
120-720
120-720
Spindle taper hole
BT40-150
BT40-150
BT40-150
BT40-150
Spindle speed (r/min)
8000
8000
8000
8000
X/Y/Z rapid movement (m/min)
48/48/48
18/18/18
36/36/24
36/36/36
Machine Weight (Kg)
5600
5500
6500
6800

Model
VMC1265
VMC1270
VMC1370
VMC1580
Vmc1690
Table size (mm)
1200*600
1200*700
1400*700
1700*800
1600*800
Max. allowable load (Kg)
800
800
800
1500
1500
X-axis stroke (mm)
1200
1200
1300
1500
1600
Y-axis travel (mm)
650
700
700
800
900
Z-axis travel (mm)
650
700
750
700
700
T-slot
5-18-100
5-18-130
5-18-130
5-22-135
7-22-110
spindle center to Z-axis guide surface (mm)
710
710
713
855
936
spindle end face to work table (mm)
120-770
120-770
120-870
160-860
150-850
Spindle taper hole
BT40-150
BT40-150
BT40-150
BT50-155
BT50-190
Spindle speed (r/min)
8000
8000
8000
6000
10000
X/Y/Z rapid movement (m/min)
36/36/36
36/36/36
24/24/24
24/24/18
15/15/12
Machine Weight (Kg)
7000
7000
8000
12000
12000
Recommended by seller


Vmc1160 Best Price Cnc Vertical Machine Center 3 Axis Cnc Milling Machine With BT40 Spindle

CN¥229,884.80-CN¥237,068.70 / set

1 set



VMC850 VMC Machine 4-Axis CNC Vertical Machining Center

CN¥143,678-CN¥148,706.73 / set

1 set



Factory Direct Sales CNC Vertical Milling Machine VMC640 Cnc Machining Center

CN¥142,959.61-CN¥150,143.51 / set

1 set



CNC Milling Machine VMC1270 CNC Vertical Machining Center with 24 Tool Magazines

CN¥251,436.50-258,620.40 / set

1 set

Detailed description

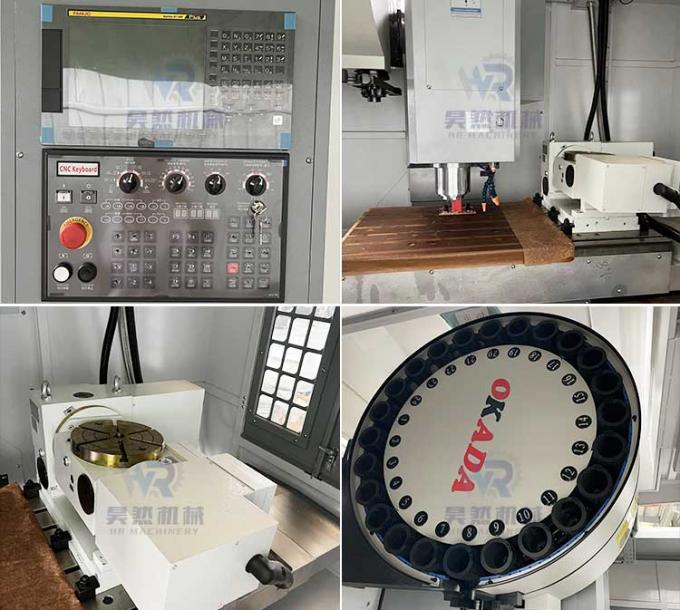

VMC650 Taiwan Spindle CNC Vertical Machining Center Milling Machine 1
Taiwan spindle ensures high-speed cutting. The water outlet function of the spindle center has good chip removal effect and good cooling effect, which improves the processing quality CNC Vertical Machine Center Three axis rapid displacement, CNC Vertical Machine Center greatly shorten the processing time. CNC Vertical Machine Center High stability tool change system to reduce non machining time. CNC Vertical Machine Center It adopts the structure of rear debris, which is convenient to clean the debris and is not easy to leak oil. CNC Vertical Machine Center The three axes are supported by high rigid wire rail, CNC Vertical Machine Center with high speed and high precision.CNC Vertical Machine Center
Packing & Delivery
VMC650 Taiwan Spindle CNC Vertical Machining Center Milling Machine 2
1. Outside package: Standard marine export plywood case. 2. Inner package: Stretchy film and plastic film for humidity. We can package according to your requests. Delivery Detail: Shipped in 30 working days after payment.

Product Highlights

CNC Machining Center VMC650 Taiwan Spindle CNC Vertical Milling Machine Product Description CNC vertical machining center With high production efficiency, CNC milling machines generally do not need to use special process equipment such as special fixtures. When replacing workpieces, they only need ...
