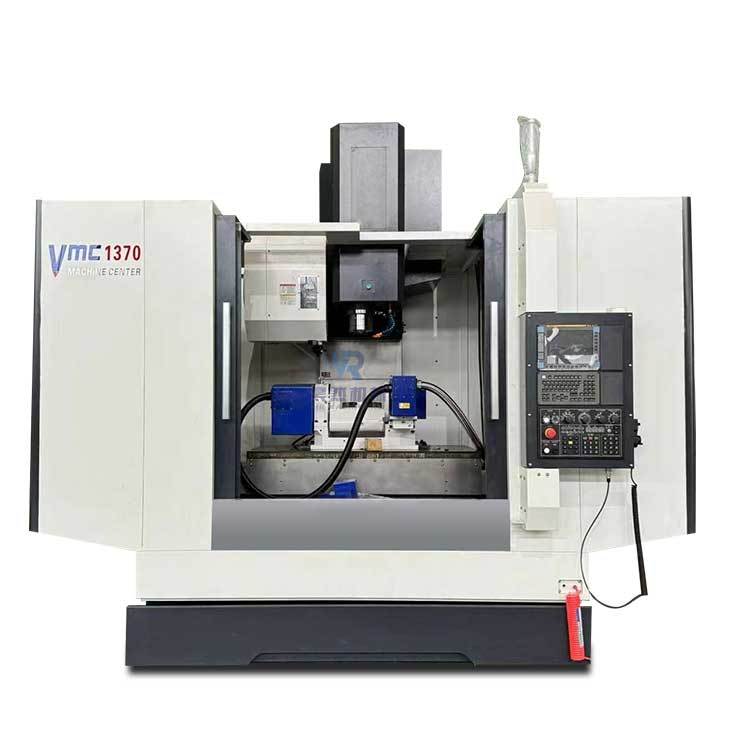

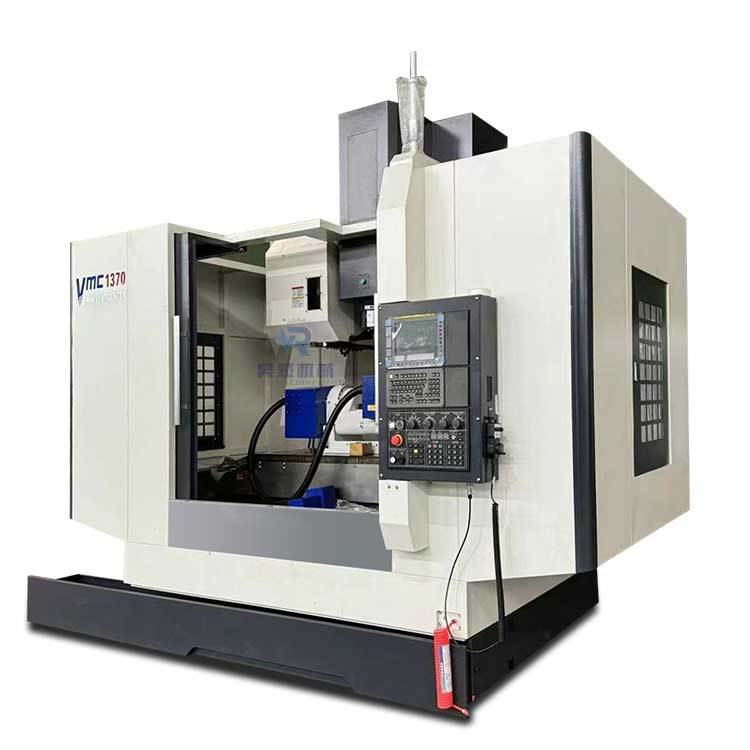

Vmc1370 5 Axis Machining Center Large Vertical Machining Center Machine

Brand Name: HR
Model Number: vmc1370
Place of Origin: china
Certification: ce
Minimum Order Quantity: 1set
Price: 30000-50000usd
Supply Ability: 40set/month
Tags

VMC 855 5 Axis Machining Center

CNC Horizontal 5 Axis Machining Center

VMC cnc horizontal machining center manufacturers

Product Details

Table Size (mm): 1400*700 Max. Allowable Load (Kg): 800
X-axis Stroke (mm): 1300 Y-axis Travel (mm): 700
Z-axis Travel (mm): 750 Condition: New
Type: Vertical Spindle Taper: BT40
Highlight

ODM 5 Axis Machining Center

,

Vmc1370 5 Axis Machining Center

,

Vmc1370 vertical machining center machine

Product Description

 Vmc1370 5 Axis Machining Center Large Vertical Machining Center Machine

Model
VMC650
VMC840
VMC850
VMC855
Table size (mm)
1000*400
1000*400
1000*500
1000*550
Max. allowable load (Kg)
400
300
500
500
X-axis stroke (mm)
650
800
800
800
Y-axis travel (mm)
400
400
500
550
Z-axis travel (mm)
550
550
500
550
T-slot
3-18-120
3-18-140
5-18-108
5-18-90
spindle center to Z-axis guide surface (mm)
485
445
552
590
spindle end face to work table (mm)
100-650
100-650
110-610
120-670
Spindle taper hole
BT40-120
BT40-120
BT40-140
BT40-150
Spindle speed (r/min)
8000
8000
8000
8000
X/Y/Z rapid movement (m/min)
48/48/48
30/30/18
48/48/48
48/48/48
Machine Weight (Kg)
3800
3200
5300
5500
Model
VMC966
VMC1050
VMC1160
VMC1165
Table size (mm)
1100*550
1200*420
1200*600
1200*600
Max. allowable load (Kg)
600
500
800
800
X-axis stroke (mm)
900
1000
1100
1100
Y-axis travel (mm)
600
500
600
650
Z-axis travel (mm)
600
550
600
650
T-slot
5-18-100
5-18-100
5-18*100
5-18-100
spindle center to Z-axis guide surface (mm)
663
575
650
710
spindle end face to work table (mm)
100-700
100-650
120-720
120-720
Spindle taper hole
BT40-150
BT40-150
BT40-150
BT40-150
Spindle speed (r/min)
8000
8000
8000
8000
X/Y/Z rapid movement (m/min)
48/48/48
18/18/18
36/36/24
36/36/36
Machine Weight (Kg)
5600
5500
6500
6800
Model
VMC1270
VMC1370
VMC1580
Table size (mm)
1200*700
1400*700
1700*800
Max. allowable load (Kg)
1000
800
1500
X-axis stroke (mm)
1200
1300
1500
Y-axis travel (mm)
700
700
800
Z-axis travel (mm)
700
750
700
T-slot
5-18-115
5-18-130
5-22-135
spindle center to Z-axis guide surface (mm)
767
713
855
spindle end face to work table (mm)
130-830
120-870
160-860
Spindle taper hole
BT50
BT40-150
BT50-155
Spindle speed (r/min)
8000
8000
6000
X/Y/Z rapid movement (m/min)
36/36/36
24/24/24
24/24/18
Machine Weight (Kg)
9000
8000
12000
Vmc1370 5 Axis Machining Center Large Vertical Machining Center Machine 0
HT300 cast iron is adopted for the main foundation parts such as base, sliding seat, workbench, column and headstock; The substructure is a box structure, and the compact and reasonable symmetrical reinforcement structure ensures the high rigidity, bending resistance and damping performance of the foundation parts; A-span column and internal grid reinforcement effectively ensure the rigidity and accuracy of z-axis strong cutting; The basic parts are molded with resin sand and aging treatment, which provides a guarantee for the stability of the long-term service performance of the machine tool.
Detailed description
Vmc1370 5 Axis Machining Center Large Vertical Machining Center Machine 1
Taiwan spindle BT40/BT50 Taiwan 24T arm type auto tool changer Taiwan P-grade high precision linear guide ways and Taiwan C3 grade precision ball screws. FANUC, SIEMENS,, MITSUBISHI, GSK cnc controllers are optional. Taiwan 4th or 5th axes rotary table is optional. Tools and workpiece measuring instrument are optional.
Packing & Delivery
Vmc1370 5 Axis Machining Center Large Vertical Machining Center Machine 2
1. Outside package: Standard marine export plywood case. 2. Inner package: Stretchy film and plastic film for humidity. We can package according to your requests. Delivery Detail: Shipped in 30 working days after payment.

Product Highlights

Vmc1370 5 Axis Machining Center Large Vertical Machining Center Machine Model VMC650 VMC840 VMC850 VMC855 Table size (mm) 1000*400 1000*400 1000*500 1000*550 Max. allowable load (Kg) 400 300 500 500 X-axis stroke (mm) 650 800 800 800 Y-axis travel (mm) 400 400 500 550 Z-axis travel (mm) 550 550 500 ...
