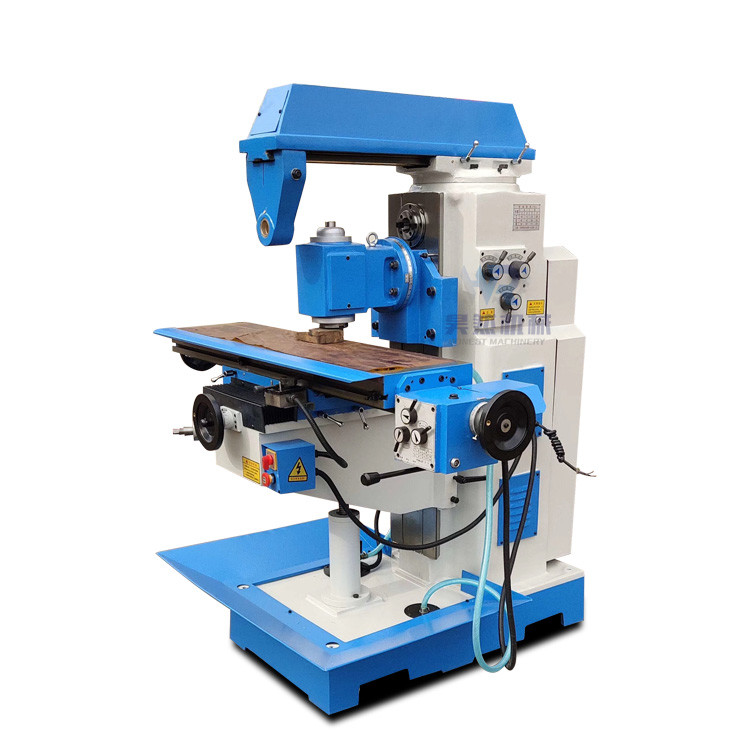

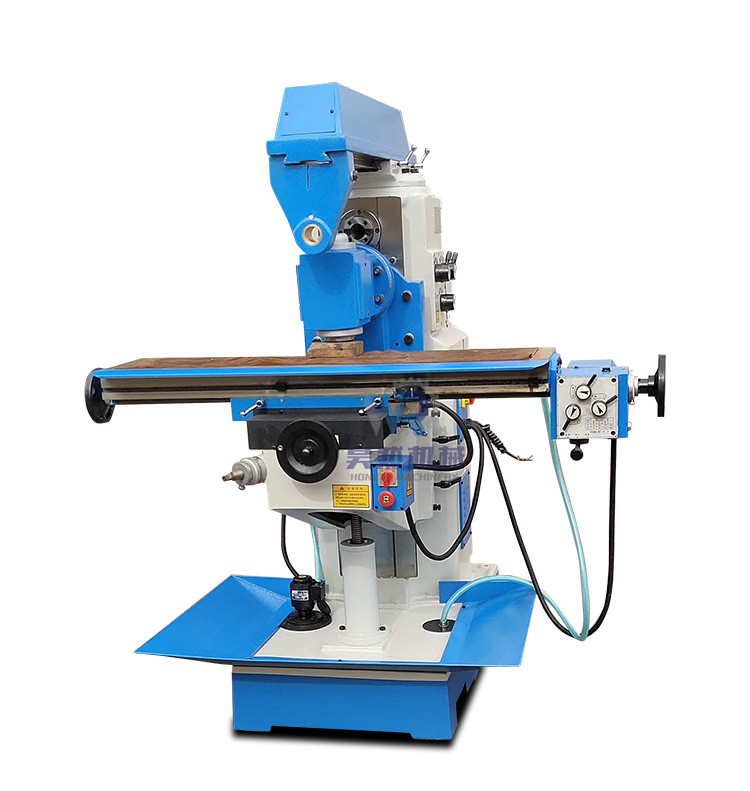

280mm 3kw Rotary Head Milling Machine Benchtop Vertical Milling Machine
Brand Name:
HR
Model Number:
X6128
Place of Origin:
china
Certification:
ceiso
Minimum Order Quantity:
1set
Price:
usd3500-6000
Supply Ability:
40set/month
Product Details
| NAME: | Strong Bearing Capacity Milling Machine X6128 | Table Size: | 1200*280mm |
|---|---|---|---|
| Table Travel: | 680/280/400mm | T Slot(number-width-pitch): | 5-14-50mm |
| Spindle Taper: | IS040 7:24 | Main Motor Power: | 3kw |
| Weight: | 1300kg | Overall Dimension: | 1725*1450*1750mm |
| Highlight |
Benchtop rotary head milling machine,3kw rotary head milling machine,280mm benchtop vertical milling machine |
||
Product Description
Product Description
The main performance characteristics:
The main shaft adopts energy consumption braking,
with large braking torque, rapid and reliable stop.
The manual lubrication device can forcibly lubricate
the lead screw and guide rail. Table X- direction motorized feed
Company information
Shandong Honest control machine tool Co., Ltd. is a production-oriented enterprise with import and export rights. The company is equipped with many kinds of machine tools and equipment, including nearly 100 sets of large, fine and sophisticated equipment. In Europe, South America, Asia, Hong Kong and other countries and regions have long-term cooperation dealers. In recent years, the company insists on changing the mode and adjusting the structure; Implement brand strategy and expand foreign market; Control the manufacturing level of company equipment. Formed by CNC lathe, CNC milling machine, vertical machining center, gantry machining center, CNC metal band sawing machine, drilling and milling machine series, milling machine series, turret milling machine series, more than ten categories, hundreds of varieties of production scale. It has achieved the expected goal of CNC product serialization and characteristic product individuation, and formed its own brand while meeting the personalized needs of users.
sample
Application:
1. Universal lifting platform milling machine is a kind of general metal cutting machine tool.
2. Spindle taper hole of the machine can be directly or through the attachment installed all cylindrical milling cutter, disc cutter, molding cutter, end milling cutter tool, suitable for processing a variety of small parts of plane, inclined plane,grooves, holes, and other gear. Is a mechanical manufacturing, mold, equipment, instruments, automobiles, motorcycles and other industries of the ideal processing equipment.
Packaging＆Shipping
Packaging Details:
1. Outside package: Standard marine export plywood case.
2. Inner package: Stretchy film and plastic film for humidity. We can package according to your requests. Delivery Detail: Shipped in 20-30 working days after payment.
Certifications
All products are available upon request, with or without trademarks. If you need OEM service with your own brand or product, please let us know. If you have any other specific requirements, please feel free to contact us. Our factory has obtained the import and export license issued by the Ministry of foreign trade, and passed the iso9001 quality management system certification and CE certification. In the quality layer by layer, we will wholeheartedly serve for the majority of customers.
customer visiting
We welcome customers to visit the factory, we will have customers to visit the factory and customers online purchase feedback, through feedback learning experience, continuous progress, better service for you.Shandong Honest is willing to unremitting pursuit and efforts, hand in hand with merchants to create a brilliant future
FAQ
1: How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
A : FOB, CFR and CIF all acceptable.
Product Highlights
Product Description Specifications Units X6128 X6032 Table size mm 1200×280 1500x320 Table travel mm 680/280/400 800/300/400 T slot(number-width-pitch) mm 5-14-50 3-16-70 Spindle taper IS040 7:24 IS040 7:24 Spindle speed range rpm 40-1300 (12 steps) 40-1300 (12 steps) Distance between spindle axis ...
