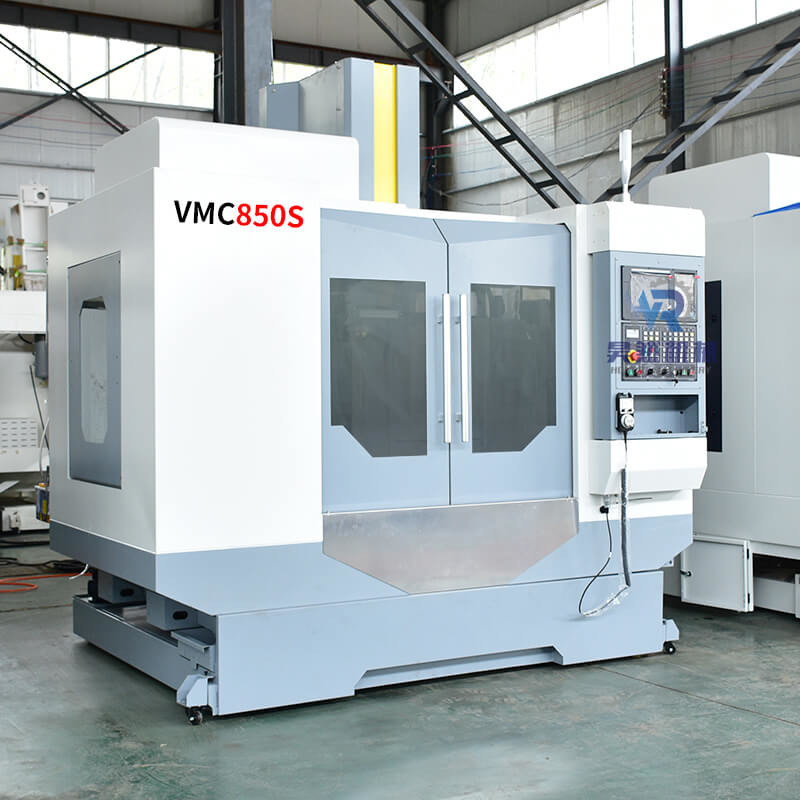

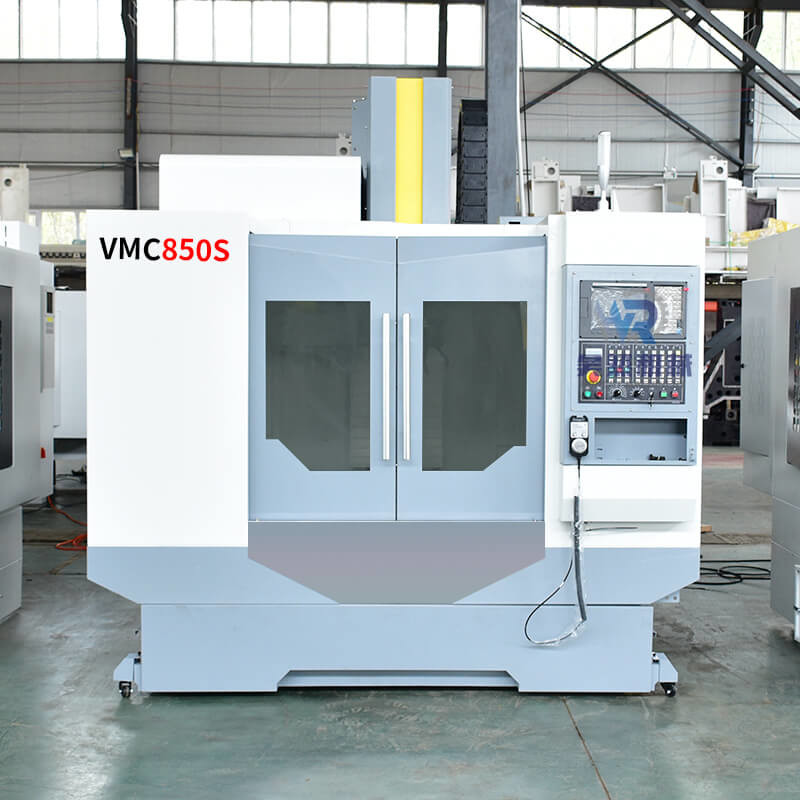

Linear Guide Rail Metal Vertical Horizontal CNC Milling Machine Center VMC850S
| Place of Origin | China |
|---|---|
| Brand Name | HR |
| Certification | CE ISO |
| Model Number | vmc 850S |
| Minimum Order Quantity | 1 |
| Price | 26700$-32000$ per one set |
| Packaging Details | wooden package |
| Delivery Time | After 15-30 Days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Trade Assurance |
| Supply Ability | 200 per a month |
Product Details
| Name | High Precision VMC850S Linear Guide Rail CNC Vertical Machining Center | Number Of Axes | 3 |
|---|---|---|---|
| Machining Capacity | Medium Duty | Range Of Spindle Speed(r.p.m) | 8000 - 12000 |
| No. Of Spindles | Single | Spindle Taper | BT40 |
| Positioning Accuracy (mm) | ±0.005 | Repeatability (X/Y/Z) (mm) | ±0.002 |
| Highlight | VMC horizontal cnc milling machine,Metal horizontal cnc milling machine,VMC cnc metal milling machine |
||
Product Description
Linear Guide Rail Metal Vertical Horizontal CNC Milling Machine Center VMC850S
Product Paramenters
Make the Impossible Possible:
1.Most economical drilling and tapping solution for metal parts, typically aluminum alloy, etc.
2.High precision and efficiency with ultrasonic spindle technology.
3.FEM enabling optimal design and lightweight structure while ensuring high rigidity of the machine.
4.Optional 4th/5th axis rotary table available for multi-sided machining in one clamping.
5.Lightweight and ultra-compact enough to go and down stairs.
6.Optional ATC: 21/16 tools.
7.Significant tool life improvement.
8.Free Workpiece Testing.
1.Most economical drilling and tapping solution for metal parts, typically aluminum alloy, etc.
2.High precision and efficiency with ultrasonic spindle technology.
3.FEM enabling optimal design and lightweight structure while ensuring high rigidity of the machine.
4.Optional 4th/5th axis rotary table available for multi-sided machining in one clamping.
5.Lightweight and ultra-compact enough to go and down stairs.
6.Optional ATC: 21/16 tools.
7.Significant tool life improvement.
8.Free Workpiece Testing.
Product Advantages
The advantages of CNC Vertical Milling Machine
1. The main parts of machine tool 850 in machining center are optimized by finite element analysis. The main cast iron is made of high strength cast iron with stable metallostructure.
2. Machining center 850 machine body base, slide block, workbench, column, spindle box and other main foundation parts adopt high rigid cast iron structure, stable metallographic structure, distributed in the internal network structure reinforcement,to ensure the high rigidity and bending resistance and shock absorption performance of the foundation parts; The basic parts are made of resin sand and treated by sandblasting, tempering and vibration effectively to ensure the stability of the machine's accuracy in long-term use and provide a guarantee for the stability of the machine's performance.
3. Machining center 850 high speed and high rigidity spindle unit combined with servo spindle motor; X/Y/Z adopts high torque servo motor. X/Y/Z adopts Taiwan high-precision high-strength ball screw with Japanese NSK bearing and high precision imported locking. X/Y/Z three-way guide rail adopts hard track design, fixed surface adopts ultra-high frequency quenching process after precision grinding; The sliding surface is made of high strength wear-resisting material with plastic tape. Y direction guide rail for four track design (including auxiliary guide rail) greatly increase the rigidity and strength of the machine tool.
2. Machining center 850 machine body base, slide block, workbench, column, spindle box and other main foundation parts adopt high rigid cast iron structure, stable metallographic structure, distributed in the internal network structure reinforcement,to ensure the high rigidity and bending resistance and shock absorption performance of the foundation parts; The basic parts are made of resin sand and treated by sandblasting, tempering and vibration effectively to ensure the stability of the machine's accuracy in long-term use and provide a guarantee for the stability of the machine's performance.
3. Machining center 850 high speed and high rigidity spindle unit combined with servo spindle motor; X/Y/Z adopts high torque servo motor. X/Y/Z adopts Taiwan high-precision high-strength ball screw with Japanese NSK bearing and high precision imported locking. X/Y/Z three-way guide rail adopts hard track design, fixed surface adopts ultra-high frequency quenching process after precision grinding; The sliding surface is made of high strength wear-resisting material with plastic tape. Y direction guide rail for four track design (including auxiliary guide rail) greatly increase the rigidity and strength of the machine tool.
Application Example
This VMC is suitable for mechanical processing and mold making .And it can adapt to the processing
requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling
,tapping,boring ,etc.
requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling
,tapping,boring ,etc.
Machine detection
Packaging＆Shipping
1. Outside package: Standard marine export plywood case.
2. Inner package: Stretchy film and plastic film for humidity. We can
package according to your requests. Delivery Detail: Shipped in 15-30 working days after payment.
package according to your requests. Delivery Detail: Shipped in 15-30 working days after payment.
Company information
Shandong Honest control machine tool Co., Ltd. is a production-oriented enterprise with import and export rights. The company is equipped with many kinds of machine tools and equipment, including nearly 100 sets of large, fine and sophisticated equipment. The enterprise has 100 employees at present, including more than 10 engineers and dozens of workers and technicians. The company has been insisting on staff training for many years, through changing staff concepts, implementing enterprise reform, introducing new management concepts and methods, using modern management level. The company has hundreds of sales outlets, more than one sales branch or office, 30 provinces, cities, autonomous regions. In Europe, South America, Asia, Hong Kong and other countries and regions have long-term cooperation dealers. In recent years, the company insists on changing the mode and adjusting the structure; Implement brand strategy and expand foreign market; Control the manufacturing level of company equipment. Formed by CNC lathe, CNC milling machine, vertical machining center, gantry machining center, CNC metal band sawing machine, drilling and milling machine series, milling machine series, turret milling machine series, more than ten categories, hundreds of varieties of production scale. It has achieved the expected goal of CNC product serialization and characteristic product individuation, and formed its own brand while meeting the personalized needs of users.
