VMC855 Vertical Machining CNC Milling Center 4 Axis VMC Machine 8000rpm
Brand Name:
HR
Model Number:
vmc855
Place of Origin:
china
Certification:
ceiso
Minimum Order Quantity:
1set
Price:
19000-40000usd
Supply Ability:
40set/month
Product Details
| Model: | VMC855 | Warranty: | 1 Year |
|---|---|---|---|
| Condition: | New | Type: | Vertical |
| Power(w): | 7.5/11 KW | Spindle Taper: | BT40 |
| Spindle Speed: | 8000 Rpm | Table Size: | 1000*550 |
| Highlight |
VMC855 CNC Milling Center,8000rpm CNC Milling Center,VMC855 4 axis vmc machine |
||
Product Description

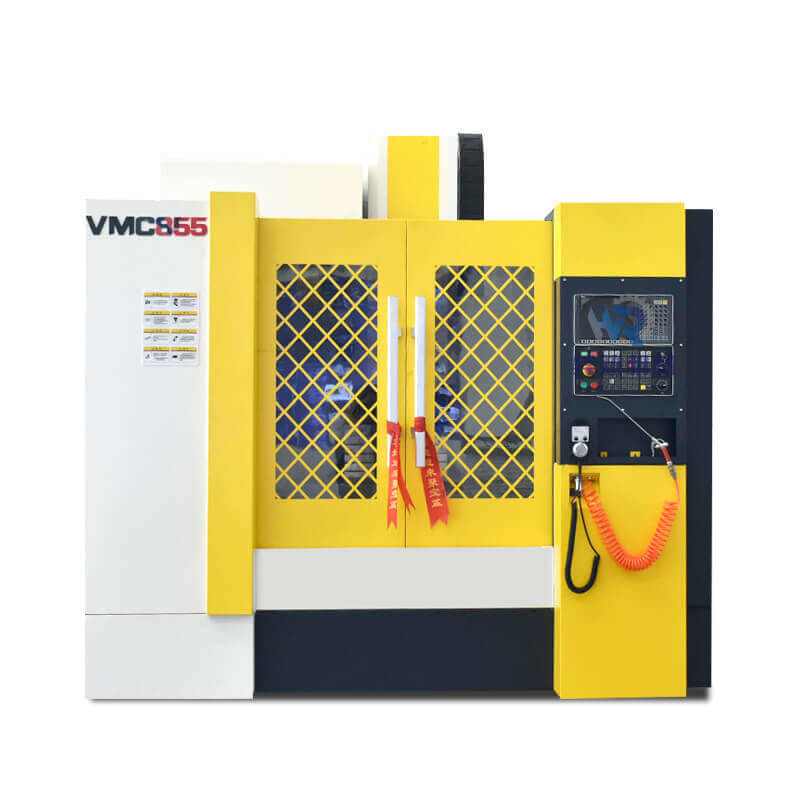

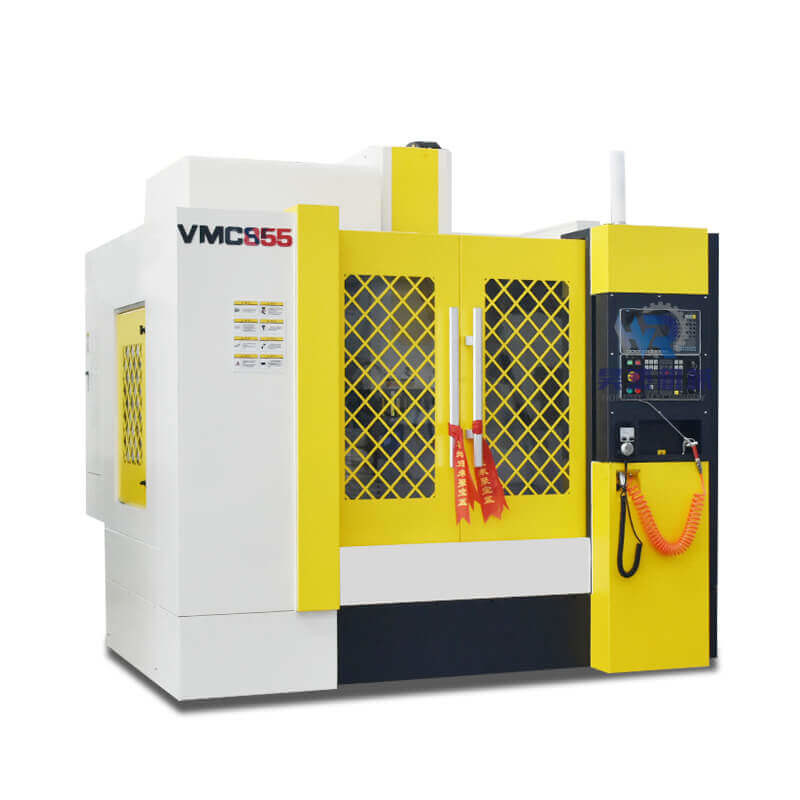

VMC855 Vertical Machining CNC Milling Center 4 Axis VMC Machine 8000rpm
Product Details
Taiwan HIWIN high precison guideway Taiwan-made spindle Unit,8000-12000rpm available.Reliable Control System: machining center is suitable for producing metal product and parts in all shapes. Taiwan spindle adopts high-quality bearings with good rigidity. BT40 tool handle is standard and BT40 tool handle is optional.HT300 cast iron is adopted for the main foundation parts such as base, sliding seat, workbench, column and headstock; cnc milling machine The substructure is a box structure, and the compact and reasonable symmetrical reinforcement structure ensures the high rigidity, cnc milling machine bending resistance and damping performance of the foundation parts; A-span column and internal grid reinforcement effectively ensure the rigidity and accuracy of z-axis strong cutting; The basic parts are molded with resin sand and aging treatment, which provides a guarantee for the stability of the long-term service performance of the machine tool. cnc milling machine
Taiwan spindle ensures high-speed cutting. The water outlet function of the spindle center has good chip removal effect and good cooling effect, which improves the processing quality
Taiwan HIWIN high precison guideway
Automatic tool change system
sample
It is widely used to produce the auto spare parts, medical treatment instrument and any kind of injection mould, blowing mould, die-casting mould, car LED mould, toy mould and precise mould and o on. Large steel molds are the first products requiring large cutting amount and fast processing speed. It is applicable to the processing of plastic mold industry, automobile tire industry, hardware industry, toy industry, handicrafts, fine stamping die, bronzing die, high-frequency die, embossing wheel die, die-casting die and graphite electrode. It is the best choice for mold manufacturing industry and parts processing.
Packaging＆Shipping
Packaging Details: 1. Outside package: Standard marine export plywood case. 2. Inner package: Stretchy film and plastic film for humidity. We can package according to your requests. Delivery Detail: Shipped in 30 working days after payment.
Certifications
All products are available upon request, with or without trademarks. If you need OEM service with your own brand or product, please let us know. If you have any other specific requirements, please feel free to contact us. Our factory has obtained the import and export license issued by the Ministry of foreign trade, and passed the iso9001 quality management system certification and CE certification. In the quality layer by layer, we will wholeheartedly serve for the majority of customers.
customer visiting
We welcome customers to visit the factory, we will let you buy, we will have customers to visit the factory and customers online purchase feedback, through feedback learning experience, continuous progress, better service for you. Shandong Honest is willing to unremitting pursuit and efforts, hand in hand with merchants to create a brilliant future
Product Highlights
VMC855 Vertical Machining CNC Milling Center 4 Axis VMC Machine 8000rpm Model VMC650 VMC840 VMC850 VMC855 Table size (mm) 1000*400 1000*400 1000*500 1000*550 Max. allowable load (Kg) 400 300 500 500 X-axis stroke (mm) 650 800 800 800 Y-axis travel (mm) 400 400 500 550 Z-axis travel (mm) 550 550 500 ...
