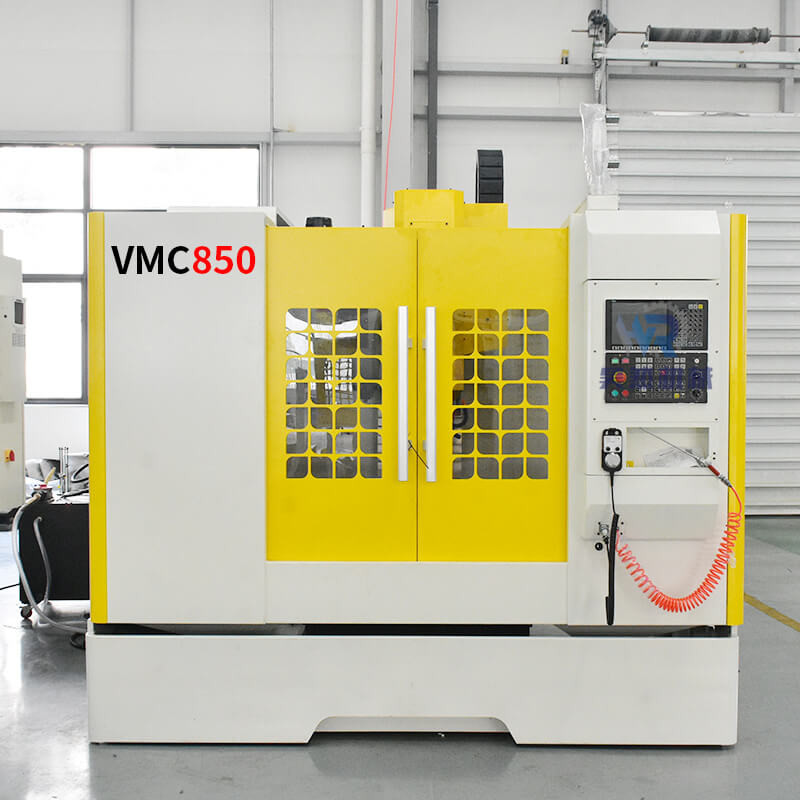

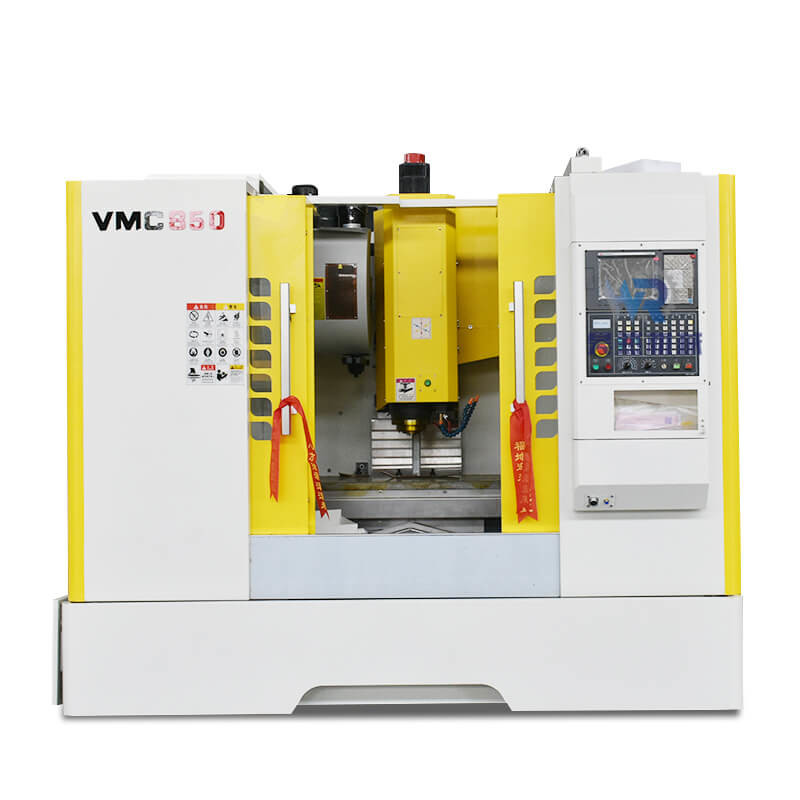

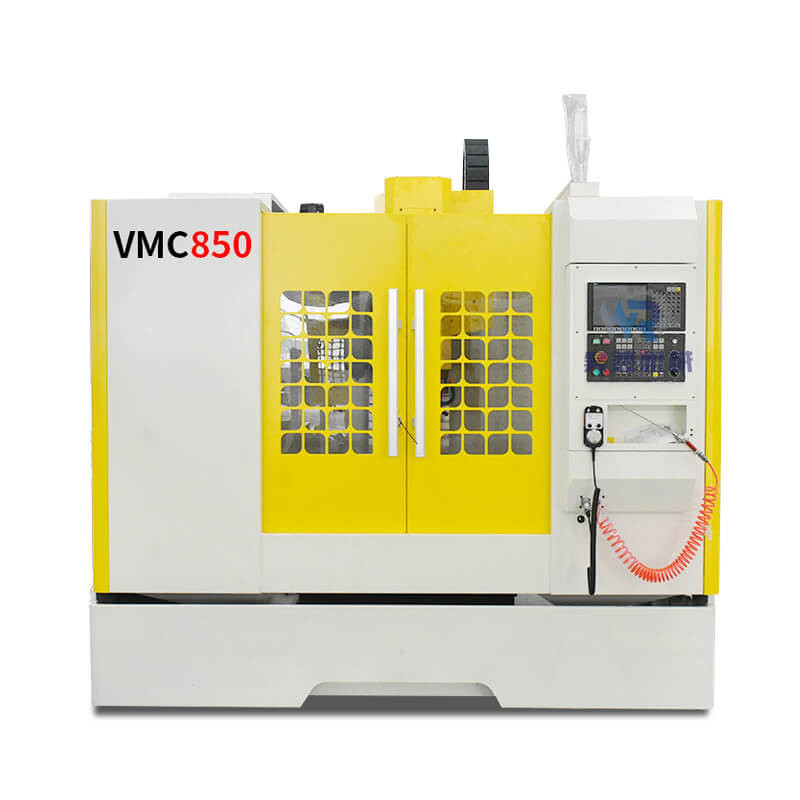

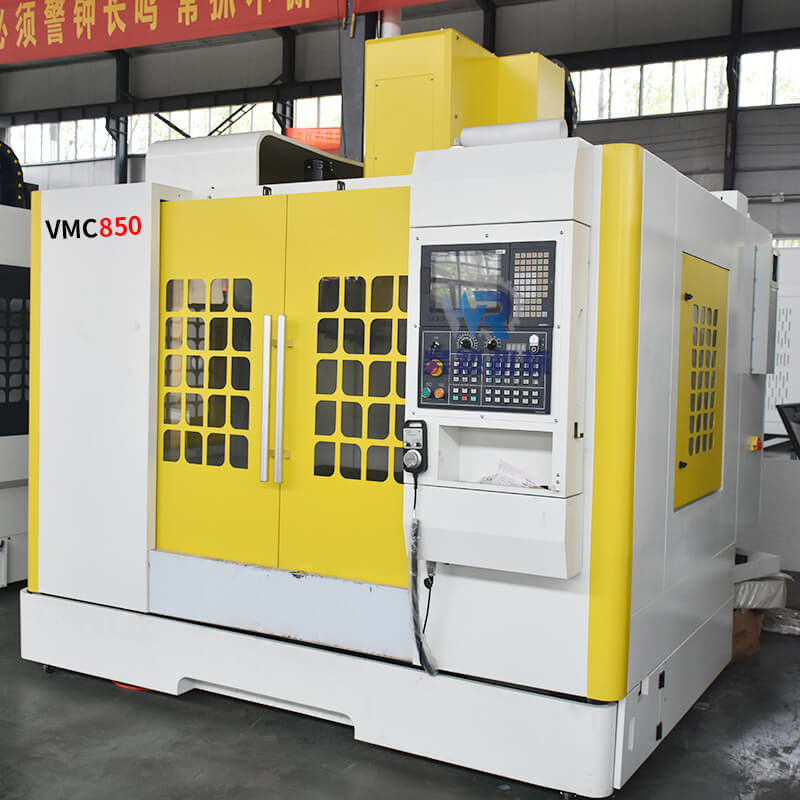

4 Axis VMC850 Vertical Industrial CNC Milling Machine Machining Center With KND Controller
| Place of Origin | China |
|---|---|
| Brand Name | HR |
| Certification | CE ISO |
| Model Number | vmc 850 |
| Minimum Order Quantity | 1 |
| Price | 26700$-32000$ per one set |
| Packaging Details | wooden package |
| Delivery Time | After 15-30 Days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Trade Assurance |
| Supply Ability | 200 per a month |
Product Details
| Name | 4 Axis VMC850 CNC Machining Center Vertical Milling Machine Center With KND Controller | Number Of Axes | 4 |
|---|---|---|---|
| Machining Capacity | Medium Duty | Range Of Spindle Speed(r.p.m) | 8000 - 12000 |
| No. Of Spindles | Single | Spindle Taper | BT40 |
| Positioning Accuracy (mm) | ±0.005 | Repeatability (X/Y/Z) (mm) | ±0.002 |
| Highlight | VMC850 industrial cnc milling machine,KND industrial cnc milling machine,4 Axis vmc vertical machining center |
||
Product Description
4 Axis VMC850 Vertical Industrial CNC Milling Machine Machining Center With KND Controller
Product Paramenters
Product Description
A 3-Axis CNC Machining Center/Mill is used for creating various industrial parts. This is achieved by using a wide-range of tooling and cutters depending on the type of material being cut and the end product being manufactured.
A 3-axis CNC Mill works on three separate axes:
* X-Axis:Moving longitudinally or “left-to-right”
* Y-Axis:Moving laterally or “front-to-back”
* Z-Axis:Moving Vertically or “up-and-down”
CNC Vertical Machining Centers can include an additional axis to do specific cutting applications.
Rotary Tables are common as a 4th Axis on mills. They can vary in size and weight capacities and can have a horizontal or verticalconfiguration. They are generally an add-on to a standard 3-axis mill. The mill will have to have a proper 4th axis interface (generally a 4th axis card, drive and CNC Control) to accept a 4th axis rotary table.
Trunnion Tables can also be an add-on to a vertical CNC Mill. A Trunnion table adds a 4th and 5th axis to a standard mill by incorporating an A-Axis (which rotates around the X-Axis) as well as a C-Axis (which rotates around the Z Axis).
Application:
This VMC is suitable for mechanical processing and mold making .And it can adapt to the processing
requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling,tapping,boring ,etc.
A 3-axis CNC Mill works on three separate axes:
* X-Axis:Moving longitudinally or “left-to-right”
* Y-Axis:Moving laterally or “front-to-back”
* Z-Axis:Moving Vertically or “up-and-down”
CNC Vertical Machining Centers can include an additional axis to do specific cutting applications.
Rotary Tables are common as a 4th Axis on mills. They can vary in size and weight capacities and can have a horizontal or verticalconfiguration. They are generally an add-on to a standard 3-axis mill. The mill will have to have a proper 4th axis interface (generally a 4th axis card, drive and CNC Control) to accept a 4th axis rotary table.
Trunnion Tables can also be an add-on to a vertical CNC Mill. A Trunnion table adds a 4th and 5th axis to a standard mill by incorporating an A-Axis (which rotates around the X-Axis) as well as a C-Axis (which rotates around the Z Axis).
Application:
This VMC is suitable for mechanical processing and mold making .And it can adapt to the processing
requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling,tapping,boring ,etc.
Product Advantages
The advantages of Machining center 850 machine:
1. The main parts of machine tool 850 in machining center are optimized by finite element analysis. The main cast iron is made of high strength cast iron with stable metallostructure.
2. Machining center 850 machine body base, slide block, workbench, column, spindle box and other main foundation parts adopt high rigid cast iron structure, stable metallographic structure, distributed in the internal network structure reinforcement,to ensure the high rigidity and bending resistance and shock absorption performance of the foundation parts; The basic parts are made of resin sand and treated by sandblasting, tempering and vibration effectively to ensure the stability of the machine's accuracy in long-term use and provide a guarantee for the stability of the machine's performance.
3. The machining center 850 machine has a-shaped straddle structure, which is optimized for THREE-DIMENSIONAL diameter reduction, reducing the vibration of the machine tool during strong cutting and making the machine tool more rigid.
4. Machining center 850 high speed and high rigidity spindle unit combined with servo spindle motor; X/Y/Z adopts high torque servo motor. X/Y/Z adopts Taiwan high-precision high-strength ball screw with Japanese NSK bearing and high precision imported locking. X/Y/Z three-way guide rail adopts hard track design, fixed surface adopts ultra-high frequency quenching process after precision grinding; The sliding surface is made of high strength wear-resisting material with plastic tape. Y direction guide rail for four track design (including auxiliary guide rail) greatly increase the rigidity and strength of the machine
tool.
2. Machining center 850 machine body base, slide block, workbench, column, spindle box and other main foundation parts adopt high rigid cast iron structure, stable metallographic structure, distributed in the internal network structure reinforcement,to ensure the high rigidity and bending resistance and shock absorption performance of the foundation parts; The basic parts are made of resin sand and treated by sandblasting, tempering and vibration effectively to ensure the stability of the machine's accuracy in long-term use and provide a guarantee for the stability of the machine's performance.
3. The machining center 850 machine has a-shaped straddle structure, which is optimized for THREE-DIMENSIONAL diameter reduction, reducing the vibration of the machine tool during strong cutting and making the machine tool more rigid.
4. Machining center 850 high speed and high rigidity spindle unit combined with servo spindle motor; X/Y/Z adopts high torque servo motor. X/Y/Z adopts Taiwan high-precision high-strength ball screw with Japanese NSK bearing and high precision imported locking. X/Y/Z three-way guide rail adopts hard track design, fixed surface adopts ultra-high frequency quenching process after precision grinding; The sliding surface is made of high strength wear-resisting material with plastic tape. Y direction guide rail for four track design (including auxiliary guide rail) greatly increase the rigidity and strength of the machine
tool.
Machine detection
Application Example
This VMC is suitable for mechanical processing and mold making .And it can adapt to the processing
requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling,tapping,boring ,etc.
requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling,tapping,boring ,etc.
Packaging＆Shipping
1. Outside package: Standard marine export plywood case.
2. Inner package: Stretchy film and plastic film for humidity. We can
package according to your requests. Delivery Detail: Shipped in 15-30 working days after payment.
package according to your requests. Delivery Detail: Shipped in 15-30 working days after payment.
