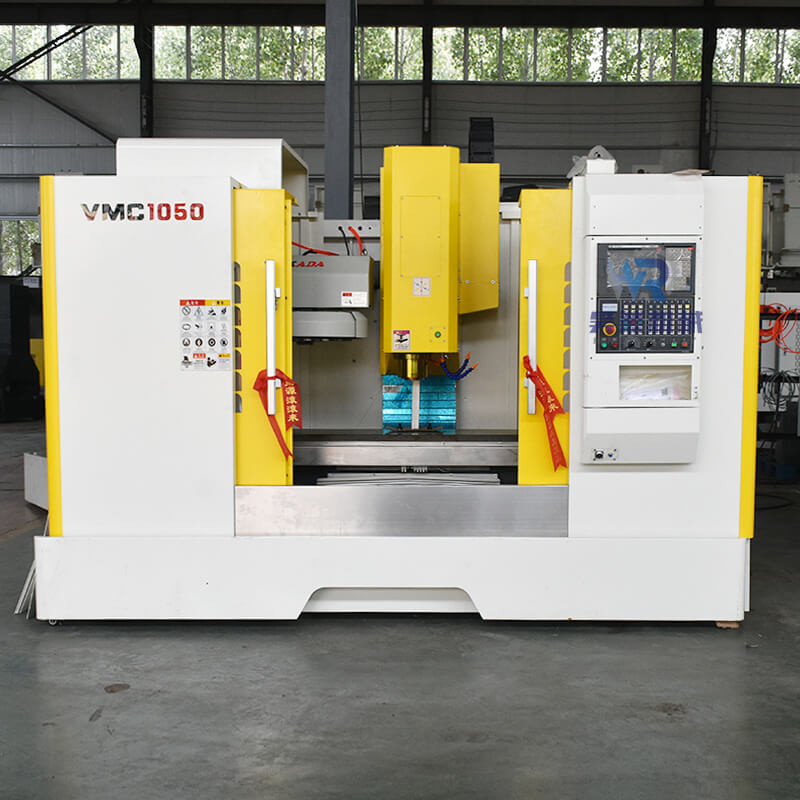

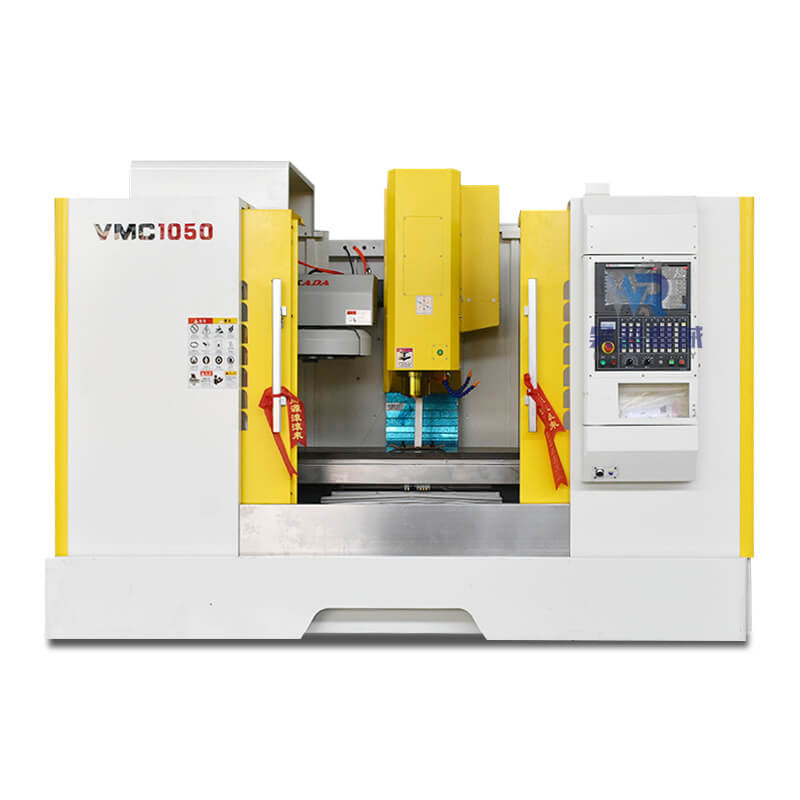

High Speed Vertical CNC VMC Machine Center VMC1050 3 Axis

  • High Speed Vertical CNC VMC Machine Center VMC1050 3 Axis
  • High Speed Vertical CNC VMC Machine Center VMC1050 3 Axis
Place of Origin China
Brand Name HR
Certification CE ISO
Model Number vmc 1050
Minimum Order Quantity 1
Price 26700$-32000$ per one set
Packaging Details wooden package
Delivery Time After 15-30 Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram,Trade Assurance
Supply Ability 200 per a month
Product Details
Name High Efficiency CNC Vertical Machine Center VMC1050 3 Axis Number Of Axes 3
Machining Capacity Medium Duty Range Of Spindle Speed(r.p.m) 8000 - 12000
No. Of Spindles Single Spindle Taper BT40
Positioning Accuracy (mm) ±0.005 Repeatability (X/Y/Z) (mm) ±0.002
Highlight

3 Axis CNC VMC Machine

,

VMC1050 CNC VMC Machine

,

VMC high speed machining center
Leave a Message
Product Description



High Speed Vertical CNC VMC Machine Center VMC1050 3 Axis


Application:
CNC machine tool structure and shape optimization design, compact, reasonable, rigid strengthening. Can be achieved for a variety of plate, plate and shell, complex parts, such as CAM, mold processing, can complete drilling, milling, tapping and other processes, is suitable for batch production of products, can meet the drilling, tapping, milling process of small and medium-sized workpiece processing.

Main Feature:
1 High-precision castings, quenched to eliminate internal stress and ensure accuracy
2 CE standard electrical, neat lines, easy to troubleshoot and repair, high safety factor
3 The three-axis adopts high-precision ball screw, combined with precision nut preloading and tail pre-tensioning device to ensure that the backlash and thermal deformation of the machine are kept low for a long time.
4 The spindle tool change mode adopts pneumatic mechanism. When the tool is used, the spindle is evenly stressed to prolong the bearing life.
5 High-precision Taiwan spindle, good stability and long life
6 Select the wiring linear guide, the brand of Taiwan silver, with high rigidity, low noise characteristics, can do rapid displacement and obtain the best cycle accuracy.
7 Fully automatic electronic lubrication system for uniform oil supply and good stability.
Product Paramenters
Model
VMC650
VMC840
VMC850
VMC855
VMC966 I
Table size (mm)
1000x400
1000x400
1000x500
1000x550
1100x550
Max. allowable load (Kg)
400
300
500
500
600
X-axis stroke (mm)
650
800
800
800
900
Y-axis travel (mm)
400
400
500
550
600
Z-axis travel (mm)
550
550
500
550
600
T-slot
3-18-120
3-18-140
5-18-108
5-18-90
5-18-100
spindle center to Z-axis guide surface (mm)
485
445
552
590
663
spindle end face to work table (mm)
100-650
100-650
110-610
120-670
100-700
Spindle taper hole
BT40-120
BT40-120
BT40-140
BT40-150
BT40-150
Spindle speed (r/min)
8000
8000
8000
8000
8000
X/Y/Z rapid movement (m/min)
48/48/48
30/30/18
48/48/48
48/48/48
48/48/48
Machine Weight (Kg)
3800
3200
5300
5500
5600
Model
VMC1050
VMC1160
VMC1165
VMC1265 I
VMC1370 I
VMC1580
Table size (mm)
1200x420
1200x600
1200x600
1200x600
1400x700
1700X800
Max. allowable load (Kg)
500
800
800
800
800
1500
X-axis stroke (mm)
1000
1100
1100
1200
1300
1500
Y-axis travel (mm)
500
600
650
650
700
800
Z-axis travel (mm)
550
600
650
650
750
700
T-slot
5-18-100
5-18x100
5-18-100
5-18-100
5-18-130
5-22-135
spindle center to Z-axis guide surface (mm)
)575
650
710
710
713
855
spindle end face to work table (mm)
100-650
120-720
120-720
120-770
120-870
160-860
Spindle taper hole
BT40-150
BT40-150
BT40-150
BT40-150
BT40-150
BT50-155
Spindle speed (r/min)
8000
8000
8000
8000
8000
6000
X/Y/Z rapid movement (m/min)
18/18/18
36/36/24
36/36/36
36/36/36
24/24/24
24/24/18
Machine Weight (Kg)
5500
6500
6800
7000
8000
12000
High Speed Vertical CNC VMC Machine Center VMC1050 3 Axis 0
High Speed Vertical CNC VMC Machine Center VMC1050 3 Axis 1
Product Advantages

The advantages of Machining center


Machining center machine body base, slide block, workbench, column, spindle box and other main foundation parts adopt high rigid cast iron structure, stable metallographic structure, distributed in the internal network structure reinforcement,to ensure the high rigidity and bending resistance and shock absorption performance of the foundation parts; The basic parts are made of resin sand and treated by sandblasting, tempering and vibration effectively to ensure the stability of the machine's accuracy in long-term use and provide a guarantee for the stability of the machine's performance.

Machining center high speed and high rigidity spindle unit combined with servo spindle motor; X/Y/Z adopts high torque servo motor. X/Y/Z adopts Taiwan high-precision high-strength ball screw with Japanese NSK bearing and high precision imported locking. X/Y/Z three-way guide rail adopts hard track design, fixed surface adopts ultra-high frequency quenching process after precision grinding; The sliding surface is made of high strength wear-resisting material with plastic tape. Y direction guide rail for four track design (including auxiliary guide rail) greatly increase the rigidity and strength of the machine tool.
High Speed Vertical CNC VMC Machine Center VMC1050 3 Axis 2
High Speed Vertical CNC VMC Machine Center VMC1050 3 Axis 3
Machine detection
High Speed Vertical CNC VMC Machine Center VMC1050 3 Axis 4
High Speed Vertical CNC VMC Machine Center VMC1050 3 Axis 5
Application Example
This VMC is suitable for mechanical processing and mold making .And it can adapt to the processing
requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling
,tapping,boring ,etc.
High Speed Vertical CNC VMC Machine Center VMC1050 3 Axis 6
Packaging＆Shipping
High Speed Vertical CNC VMC Machine Center VMC1050 3 Axis 7
1. Outside package: Standard marine export plywood case.
2. Inner package: Stretchy film and plastic film for humidity. We can
package according to your requests. Delivery Detail: Shipped in 15-30 working days after payment.
