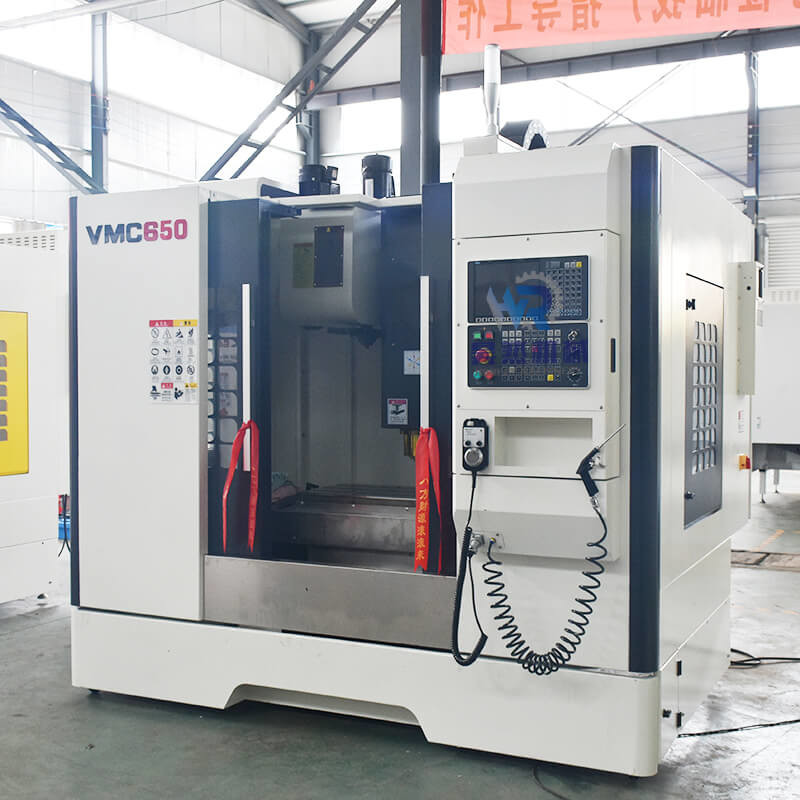

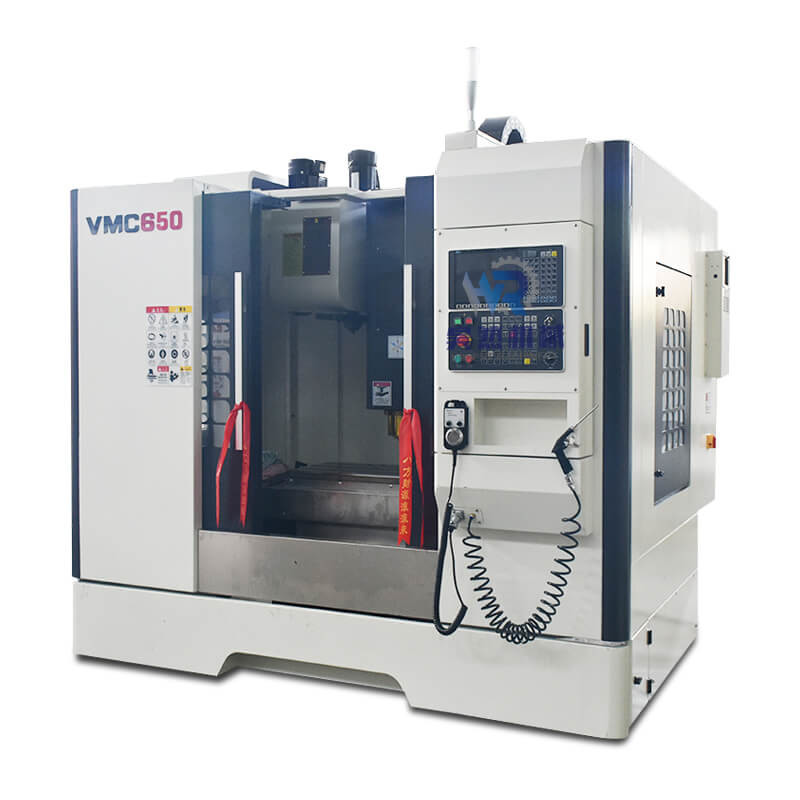

5 Axis Milling CNC VMC Machine Center VMC650 With High Precision Spindle
| Place of Origin | China |
|---|---|
| Brand Name | HR |
| Certification | CE ISO |
| Model Number | vmc 650 |
| Minimum Order Quantity | 1 |
| Price | 26700$-32000$ per one set |
| Packaging Details | wooden package |
| Delivery Time | After 15-30 Days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Trade Assurance |
| Supply Ability | 60 per a month |
Product Details
| Name | 5 Axis Cnc Milling Vertical Machining Center VMC650 Cnc Milling Machine | Number Of Axes | 5 |
|---|---|---|---|
| Machining Capacity | Medium Duty | Range Of Spindle Speed(r.p.m) | 8000 - 12000 |
| No. Of Spindles | Single | Spindle Taper | BT40 |
| Positioning Accuracy (mm) | ±0.005 | Repeatability (X/Y/Z) (mm) | ±0.002 |
| Highlight | High Precision CNC VMC Machine,5Axis CNC VMC Machine,VMC650 cnc 5 axis mill |
||
Product Description
Product Advantages
The advantages of CNC Vertical Milling Machine
Machining center 650 machine body base, slide block, workbench, column, spindle box and other main foundation parts adopt high rigid cast iron structure, stable metallographic structure, distributed in the internal network structure reinforcement,to ensure the high rigidity and bending resistance and shock absorption performance of the foundation parts; The basic parts are made of resin sand and treated by sandblasting, tempering and vibration effectively to ensure the stability of the machine's accuracy in long-term use and provide a guarantee for the stability of the machine's performance.
High-speed/high precision three axles feed structure
X.Y.Z three axles all adopt precise linear rolling guide rail(THK or HIWI)
Less noise,low resistance,high speed,high precision
Three axles all adopt C3 degree high precision ball screw,fix the poles of ball screw,fix the poles of ball screw and pre-pull,and optimize drive rigidity,reduce the heat distortion
The poles of ball screw adopt the NSK high-precision angle of contact ball screw bearing
High-speed/high precision spindle
High rigidity,high precision,big hole diameter spindle design,adopyt the precise slide angle ball bearing support
High rotary spindle provides high-speed cutting for customers,ensure the long-term stabilization of machine tool's precision
The spindle adopts synchronous belt drive of big torsion,no friction and less noise
Product Paramenters
Product Description
A true 5-axis machine can allow for continuous 5-axis machining simultaneously. This increases both speed and accuracy when machining the part.
CNC Vertical Mills generally have a single spindle, automatic tool changer, work table and CNC Control.
The spindle on a CNC Machining Center can have a wide range of speeds depending on what material is being cut and the depth of cut that is required. Typical spindle speed ranges from 0 to 10,000 RPM. Higher speeds are used for lighter materials including graphite and aluminum among others. Higher speeds can reach 12,000 RPM up to 50,000 RPM and higher.
The Spindle is loaded with tool holders and cutters to achieve the proper material removal. There are many different styles of tool holders including BT and CAT – which have a conical shape as well as HSK, which uses flanges instead of a taper to lock the holder in place. BT and CAT Holders can come in various sizes including 30, 40 and 50 taper depending on the size of tool the cutter requires. HSK (Hollow taper ShanK) comes in a variety of types – A through F – and sizes from HSK-32 up to HSK-160. HSK is considered a better tool holder for high speed machining as there is more surface contact between the spindle and the holder,
reducing vibration and keeping the tool from pulling back into the receiver when cutting at high speeds.
CNC Vertical Mills generally have a single spindle, automatic tool changer, work table and CNC Control.
The spindle on a CNC Machining Center can have a wide range of speeds depending on what material is being cut and the depth of cut that is required. Typical spindle speed ranges from 0 to 10,000 RPM. Higher speeds are used for lighter materials including graphite and aluminum among others. Higher speeds can reach 12,000 RPM up to 50,000 RPM and higher.
The Spindle is loaded with tool holders and cutters to achieve the proper material removal. There are many different styles of tool holders including BT and CAT – which have a conical shape as well as HSK, which uses flanges instead of a taper to lock the holder in place. BT and CAT Holders can come in various sizes including 30, 40 and 50 taper depending on the size of tool the cutter requires. HSK (Hollow taper ShanK) comes in a variety of types – A through F – and sizes from HSK-32 up to HSK-160. HSK is considered a better tool holder for high speed machining as there is more surface contact between the spindle and the holder,
reducing vibration and keeping the tool from pulling back into the receiver when cutting at high speeds.
Application Example
This VMC is suitable for mechanical processing and mold making .And it can adapt to the processing
requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling
,tapping,boring ,etc.
requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling
,tapping,boring ,etc.
Machine detection
Packaging＆Shipping
1. Outside package: Standard marine export plywood case.
2. Inner package: Stretchy film and plastic film for humidity. We can
package according to your requests. Delivery Detail: Shipped in 15-30 working days after payment.
package according to your requests. Delivery Detail: Shipped in 15-30 working days after payment.
